Prod Model: |
SC52 |
Model No.: |
Sc52 |
Unit Size W X D X H (mm): |
435*475*501 |
Box Size W X D X H (mm): |
461*521*520 |
Net Weight (Kg): |
19.5 |
Gross Weight(Kg): |
21 |
Installation: |
Freestanding |
Temperature Range: |
0-12degree |
Refrigerant: |
R134A |
Door Frame: |
Aluminium |
Warranty: |
1year for Whole Unit, 3years for Main Parts |
Door Number: |
Single Door |
Type: |
Display Cooler |
Door Type: |
Swing Door |
Power Source: |
Electricity |
Temperature Control: |
Mechanical Thermostat |
Temperature Type: |
Single-temperature |
Defrost Type: |
Manual Defrost |
Function: |
Cold Storage |
Certification: |
UL |
Capacity: |
52L |
Product Description

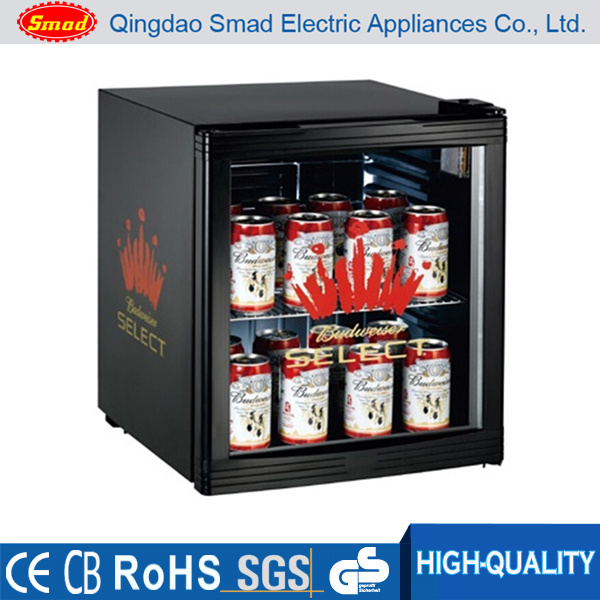

Description of Beverage Cooler Mini Fridge Compact Glass Door Can Refrigerator
Model | SC98 | SC68 | SC52 | SC21 |
Capacity cu.ft | 3.5 | 2.4 | 1.8 | 0.8 |
Capacity litres | 98 | 68 | 52 | 21 |
|
|
|
|
|
Thermostat | Mechanical Dial | Mechanical Dial | Mechanical Dial | Mechanical Dial |
Condenser | Hot Wall | Hot Wall | Hot Wall | Hot Wall |
Evaporator | Skin Tube Coil | Skin Tube Coil | Skin Tube Coil | Skin Tube Coil |
Inner Fan | Optional | Optional | Optional | Optional |
|
|
|
|
|
Cabinet | Coated Steel Sheet | Coated Steel Sheet | Coated Steel Sheet | Coated Steel Sheet |
Cabinet Color |
| White | White | White |
No. of Paint Coatings | Powder Coating | Powder Coating | Powder Coating | Powder Coating |
Drainage | Yes | Yes | Yes | Yes |
Shelves | Coated Wires, 3 (Adjustable) | Coated Wires, 3 (Adjustable) | Coated Wires, 2 (Adjustable) | Coated Wires, 1 (Adjustable) |
Blow Agent | Cyclo/Isopentane | Cyclo/Isopentane | Cyclo/Isopentane | Cyclo/Isopentane |
Cabinet Liner | Coated Aluminium Sheet | Coated Aluminium Sheet | Coated Aluminium Sheet | Coated Aluminium Sheet |
Inside Cabinet Color | White | White | White | White |
Foot | 4 Adjustable Screws | 4 Adjustable Screws | 4 Adjustable Screws | 4 Adjustable Screws |
Temperature range | 0-12 | 0-12 | 0-12 | 0-12 |
|
|
|
|
|
Door | Double Layers Floating Glass | Double Layers Floating Glass | Double Layers Floating Glass | Double Layers Floating Glass |
Door Frame | Aluminium | Aluminium | Aluminium | Aluminium |
Color of Door Frame | Optional | Optional | Optional | Optional |
Lock | Optional | Optional | Optional | Optional |
Handle | Hand gripped | Hand gripped | Hand gripped | Hand gripped |
|
|
|
|
|
Outer Ad Light | Fluorescent | Fluorescent | Fluorescent | Fluorescent |
Ad Top Light Case | Yes | Yes | Yes | Yes |
Switch | Yes | Yes | Yes | Yes |
|
|
|
|
|
Cooler Classification | ST | ST | ST | ST |
Refrigerant | R134a | R134a | R134a | R134a |
|
|
|
|
|
Product Height | 850mm | 686mm | 501mm | 472mm |
Product Width | 480mm | 475mm | 435mm | 330mm |
Product Depth | 460mm | 435mm | 475mm | 410mm |
Product Weight | 36kg | 24kg | 19.5kg | 15kg |
|
|
|
|
|
Packing Height | 890mm | 705mm | 520mm | 510mm |
Packing Width | 506mm | 521mm | 461mm | 335mm |
Packing Depth | 531mm | 461mm | 521mm | 445mm |
Shipping Weight | 40kg | 26kg | 21kg | 16.5kg |
Stuffing Quantity(20'/40'/40HQ) | 80/168/252 | 144/300/300 | 200/400/400 | 300/620/715 |
Certificate | CE,ETL,RoHS,SAA | CE,ETL,RoHS,SAA | CE,ETL,RoHS,SAA | CE,ETL,RoHS,SAA |
Qingdao Smad Electric Appliances Co., Ltd., was set up in 1999 and rebuilt in 2003. After many years of hard work, we have become one normalized and professional enterprise. Now SMAD has a staff of 600 persons and an annual production of 350 million Yuan.
The development of SMAD is the fastest in the field as a new member of the field. The production capacity has grown over 100% for 3 years since we were founded. The sales of SMAD have increased doubly year by year.
Now SMAD have one sole proprietorship factory and two joint venture factories. Our factories are equipped with the top-level production equipments and testing facilities. We also have well qualified engineers and highly trained technical staff, which promotes the group's opportunity to work out successful partnerships. We guarantee products with superior quality, competitive price and excellent customer service.
We have more than 50 items in our product line. Our products range from freezers, refrigerators, wine cellars, showcases, and ice makers to washing machines.
We are quite proud of our ability of R&D. During design and production process of our products, SMAD produces products of true humanity by the leading of consumers' necessity. Every several months, new models are developed to meet the changeable requirements of our customers.
Since our establishment, SMAD has always been emphasizing on building an effective quality management system. Our rigid control on quality under the framework of ISO9001 has standardized and systemized every functioning department and manufacturing process as well as managing operation.
In the meantime, SMAD gains not only China CCC certificate, but also many overseas certificates such as CE, RoHS, ETL, and GOST.
In accordance with our principle of "supplying the fine and reliable quality products for respected customers", the products from SMAD production lines have been satisfying the customers the domestic and overseas.
SMAD is always ready to eagerly supply customers with excellent products and satisfying services, and warmly welcome you to join us to cooperate for a brighter future.
