| Prod Model: |
SAT8043A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCM Od: |
105.5*67.2*4.2mm |
| LCD A.a: |
95.04*53.86 |
| Drive IC: |
Ili6480/Ota5180 |
| Interface: |
24bit RGB Interface,40pin |
| Brightness: |
280nits with 7PCS LED Backlight |
| Resolution: |
480*272 |
| Operation Temperature: |
-20-70 Degree |
| Touch Panel: |
with Resistive Touch Panel |
| Type: |
Color |
| Usage: |
Small-sized LCM |
| Touch Screen Type: |
Resistive |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| Digital LCD Module Type: |
Counting Module |
| Display Technology: |
TFT |
| Viewing Angle: |
TN＋FILM |
| Response Time: |
30ms |
| Customized: |
Non-Customized |
Product Description

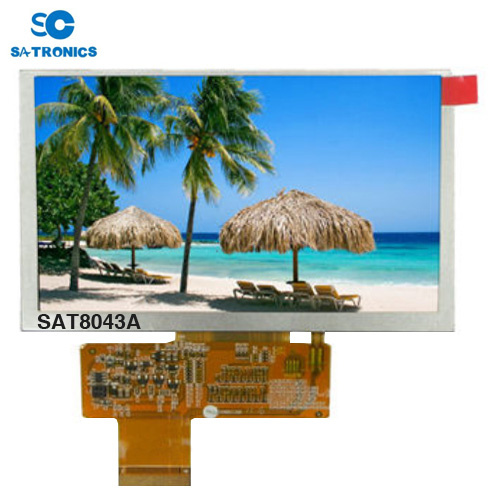

TFT LCD Module
Size:4.3Inch
Resolution:480*272
Model NO:SAT8043A
LCM OD: 105.5*67.2*4.2mm
A.A: 95.04*53.86
Driver IC:ILI6480/OTA5180
Interface:RGB 24Bit
FPC Pins:40pins
Brightness:280nits,with 7pcs LED backlight.
With TP:YES
Operation temperature:-20-70
Sotrage temperature:-30-80
We can offer TN,STN,COB,COG LCD Module ,TFT and OLED Displays including all the other subsidiary compenents related to displays.
We have more than 300 standard models of monochrome COB LCD module and TFT LCD size from 1.77inch to 8inch.
our products are widely used in automotive electronics, military applications and medical instruments,home applications and communication devices.. Each unit bears SGS, and RoHS marks.
Standard model or customized both OK.
Welcome to enquiry
Satronics Co., Limited was established in year of 2002. We are located in Shenzhen city of China and we have HongKong branch to offer logistics and financial service.
Satronics specialize in design, develop and manufacture of high quality LCD panel, LCD module (LCM) and TFT Display more than 10years.
We can offer TN, STN, COB, COG LCD Module, TFT and OLED Displays including all the other subsidiary compenents related to displays.
We have more than 300 standard models of monochrome COB LCD module and TFT LCD size from 1.77inch to 8inch.
Our products are widely used in automotive electronics, military applications and medical instruments, home applications and communication devices...Each unit bears SGS, and RoHS marks.
We provide expert technical support by a team of highly-qualified electronic engineers. We are committed to providing innovative flat panel display designs and products to meet the ever-growing needs of the global marketplace with an elite staff of high qualified Research and Development engineers. Therefore, we can guarantee to meet your display specifications, and provide you with the most appropriate and cost effective solution for your individual requirements.
We have provided customers with the most competitive and satisfying products in the market. We have won high reputation from the customers for her advanced facilities, mature technology, comprehensive quality management, and highly-effective customer service.
Now our company has became the qualified supplier of many well-known companies all over the world.
Looking forward to receive your enquiry and demonstrate our capability to you.!
