| Prod Model: |
Outdoor p10 led display |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Module Size: |
160X160mm |
| Brightness: |
>7500CD/M2 |
| Cabinet Size: |
960X960mm |
| Working Voltage: |
220VAC |
| Optimal Viewing Distance: |
10-50m |
| Optimal Viewing Angle: |
160°(W) 120°(H) |
| Control Mode: |
Synchronization with PC |
| Cabinet Resolution: |
96X96dots |
| Lifespan: |
100,000hours |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC,EMC,IP65 |
Product Description

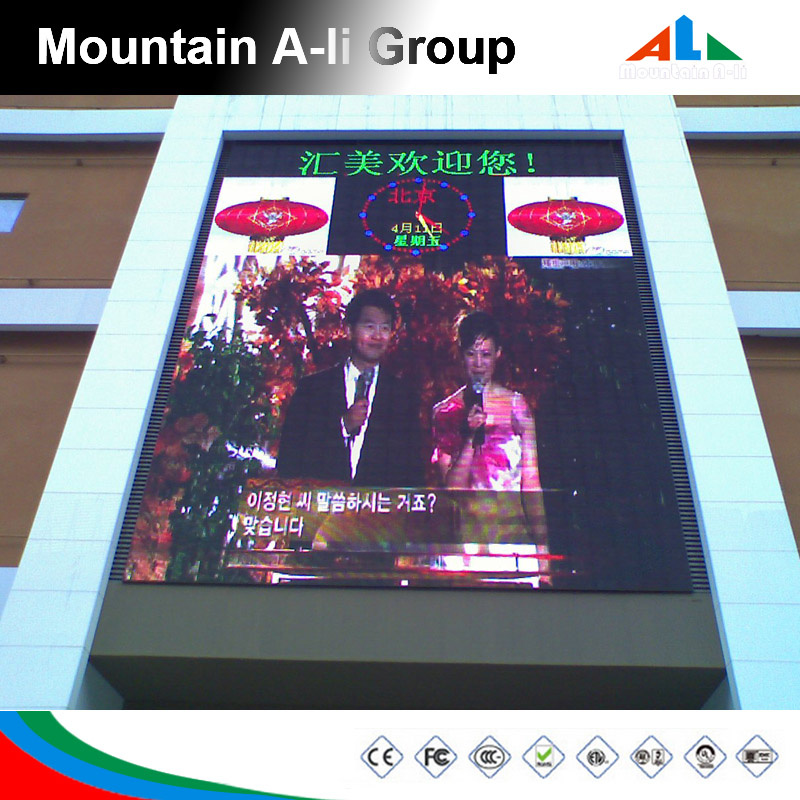

Best viewing1r1g1b outdoor p10 led display
1. Features:
1. High brightness. Use DIP LEDs, keeps the display content visible even if facing the strong sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
3. Waterproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid audio visual effect.
6. Both front and rear access are available.
7. Good LED Chips, with large viewing angle, lowe power consumption and good color uniformity.
8. Easy for maintenance.
9. Good quality raw material, accurate technique and careful inspection insures the high quality of led display.
10. Different shape and size can be made according to your requirement.
| Module:P10 | LED Type | DIP346 |
| Pixel Pitch | 10mm | Refresh frequency | 1,200Hz |
| Module Size | 160x160mm | View Angle | 160°(W) 120°(H) |
| Module resolution | 16x16pixel | Working Environment | Temp:-20°C~60°C, Humidity:10%~90% |
| Dot density | 10,000pixel/sq. m | Working Voltage | AC:100V~120V AC:220~240V |
| Pixel configuration | 1R1G1B | Lifetime | 100,000Hours |
| The best view distance | 10-100M | Gray Scale | 14bit/color |
| Cabinet dimension | 960mmx960mm(Optional) | Color Display | 1.07Billion |
| Cabinet resolution | 96X96 | Brightness | ≥7500nits |
| Cabinet weight | 60KG/sq. m | MITBF | 0.00001 |
| Drive mode | Constant current,1/4 Scan | IP | IP65 |
| Max Power Consumption | 850W/sq. m | Warranty | 2 years |
| LED Parameter | R:d(625-630nm) R:IV(400-450mcd) | G:d(522.5-525nm) G:IV(1800-2200mcd) | B:d(467.5-470nm) B:IV(350-400mcd) |
| Image adjustment | Brightness, contrast, tone, color range etc |
| Brightness uniformity | Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness) |
| Effective control distance | Cat 5<100M / Multi-mode fiber:<500M / Single-mode fiber<20Km |
| Color Temperature/contrast | Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable |
| Input signal | RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION |
| Control system | Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional) |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
