| Prod Model: |
jlf-CS-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Tank: |
0.4mm SUS304 Stainless Steel |
| Outer Tank: |
0.4mm Color Steel |
| Tube Quantity: |
20 Vacuum Tubes |
| Warranty: |
5years |
| Package: |
Cartons with Foam |
| Angle: |
27'-45' |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Max. Capacity: |
200L |
| Certification: |
CE,ISO9001 |
Product Description

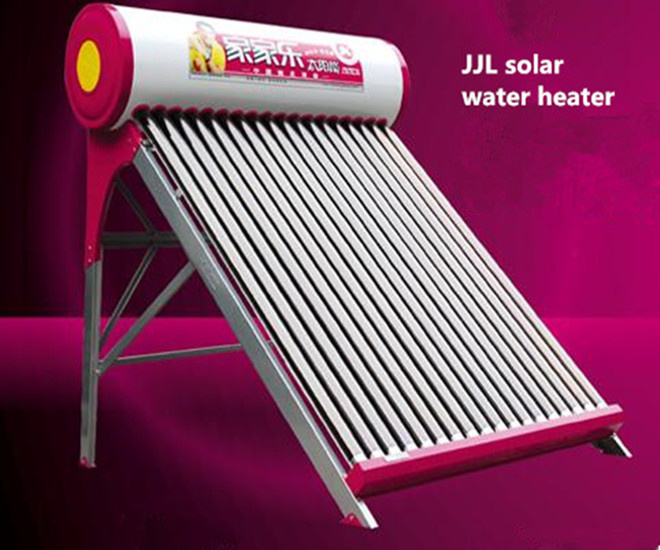

200L Color steel Solar Water Heater
Carrefour New Energy Co.Ltd is a designer and manufaturer of solar water heating prodcts in China. All of our products are designed to ensure robust performance over a long lifespan. All of our solar water heaters are complied with CE, ISO9001-2008,CCC standars.
If you are interested in our solar water heater system, please feel free to contact us.
.Unpressurized solar water heating system
.Certification:CE, ISO9001,CCC
.5 years warranty
Specifications:
| Description | Solar Water Heater |
| Material of out tank | 0.4mm thickness color steel |
| Material of inner tank | Food grade 0.4mm thickness SUS304 stainless steel |
| Tank insulating layer | 55mm 45kg/m³ high-density polyurethane foamed |
| Inlet and outlet hole | Male G 1/2, 3/4 |
| Max pressure | 0.05 Mpa |
| Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P≤0.005 Pa |
| Absorption | as=0.93-0.96 (AM1.5) |
| Emission ratio | εh=0.04-0.06 (80C±5C) |
| Idle sunning property parameters | Y=220~260m2.C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
| Bracket: | 1.4mm thickness galvanized steel |
| Structure of tank | 5 holes for air vent,overflow,water inlet and outlet,electric heater |
| Welding: | Argon arc welding |
| Fastening pieces: | Made of stainless steel screw |
| Tube quantity | 20 tube 58x1,800mm |
| Tank capacity | 200L |
The non pressure solar water heater with assistance tank, feeding water automatically, with high absorption and low emittance, SABS, CE approved, is very economical, attractive and durable.
All machine mental parts is stainless steel and galvanized steel
Inner tank: Φ360mm/SUS304-2B/0.4mm. Outer tank: Φ460mm/Galvanized steel/0.4mm
It use 55mm of high density polyurethane foam for insulation layer. Heat preservation: 72hours
Vacuum tube: 58x1800mm 1.6mm or 2.2mmthickness ALN-SS-CU coating
The bracket is in line with structural mechanics, very stable and solidly build. Dual-purpose for both flat and inclined roof.
It is scientifically and specially designed, which is easy to install and operate
It can still work when emergency water suspension
Jiaxing Carrefour New Energy Co., Ltd., established in 1999, is a professional manufacturer of solar water heater, with rich experience in the R&D and Production. After several years of unremitting efforts, we have accomplished outstanding success in product quality and organizational management. And having established the selling, serving network over China and many foreign countries. Meanwhile, the company has gained many honors such as China Compulsory Certification (CCC), CE certification for exporting to Europe, ISO9001: 2000 Quality System Certification, Certificate for Product Exemption from Quality Surveillance Inspection, China well-know brand, and so on.
We promise that we will provide better products, higher quality, lower price, better service, fast delivery, and longer warranty for our customers!
Join in us, and our products will be your best choice!
Modernized manufacturing equipments and technology have piloted us make progress constantly, and science and technology have enriched our industry. Development and innovation are our persistent pursuit in spirit. The modernized manufacturing equipments and technology have LED the mainstream of the industry and market. With strong conviction and rigid technology, we're committed to meet the demand of different consumption groups in different regions and under different climate conditions. We will create a favorable marketing atmosphere to make the high-tech products emerged like tide and to let technology lead the world.
