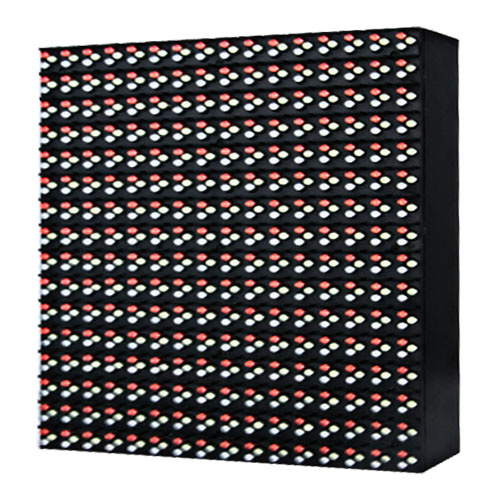

Best Quality P20 Outdoor Full Color LED Display Made in China

Prod Model:	P20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lifespan:	100,00hours
Warranty:	2 Years
Factory Price:	Available
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Pitch:	20mm
Display Function:	Video Display
Scanning Mode:	Static Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	CCC
Pixel Configuration:	1r1pg1pb
Average Power Consumption:	115W/M2
Pixel Density:	2500

Product Description

Best quality P20 Outdoor full color LED Display made in China


specification:

Part Number	HERO-ODS4F
Resolution	16(H)×8(V)
Pixel Pitch	20mm
LED Configuration	1R1PG1PB DIP346
Pixel Density	2500 pixels/ m2
Module Size	320*160mm
Driving IC	MBI5024
Driving Method
Cabinet Weight	65kg/sq.m.
Mechanical Ratings
Hanging Weight Support	2T
Surface Flatness	0.1mm
Optical Ratings
Brightness	6500cd/ m2
View Angle	110°/70°
Gray Scale	16 bits
Display COLOR	281 Trillion
Brightness Adjustment	0~100%
Power Supply
Operation Power	110V /60Hz ,220V/50Hz
Max. Power Consumption	230W/ m2
Average Power Consumption	115W/ m2
Control System
Control Mode	Synchronous display with control PC by DVI
Frame Update Frequency	60~85Hz
Screen Refresh Frequency	3000Hz
Gamma Correction	-5.0~+5.0
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance	Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode	1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction	Pixel, Module, Cabinet
Environmental
Operating Temperature	-20°~+60°
Operating Humidity	10~95% RH
Operating Life	100,000hours
MTBF	10000hours
Protection Level	~
Out of Control Rate	<0.02%


Description:
1.It has pass the EMC & TUV standard and certification.
2.Energy saving we use the 3.8V low-voltage Meanwell powersuply,at the same brightness,it can save 15~25% energy,tje power consumption would be 300W/sq.m Max and 150W/sq.m Ave.
3.Most cost -efficiency,price is 50~100% lower than the same level products.
4.Each powersuply and receive cards was wrapped up by the aluminum box,it's much more save and better anti-interference.

Applications:
Widely used inbanks, shopping malls, theaters, commercial streets, stores, hotels, municipal public buildings, landmarks and other advertising.


Packing and transportation

Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.



About Hero

8-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.

After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
