| Prod Model: |
G-250B |
| Name: |
Axial Flow Fan |
| Usage: |
for Motor |
| Color: |
Optional |
| Power: |
20-3000W |
| Voltage: |
110/220V 380/415V 660/1140V |
| Materials: |
Steel |
| Rotation Speed: |
900-2800r/Min |
| Environment Temperature: |
-15~+40ºC |
| Protection Class: |
IP54/IP55 |
| Rated Frequency: |
50Hz |
| Blade Material: |
Stainless Steel |
| Electric Current Type: |
AC |
| Mounting: |
Axial Flow Fan for AC Motor |
Product Description

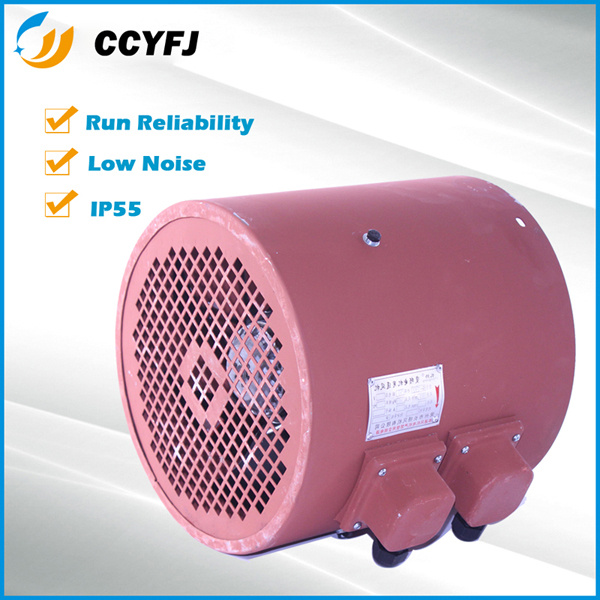

Best price axial flow fan electrical exhaust fans
Product Description
Features of The Newest Type explosion proof axial flow ventilation fan for sale :
1.Low Noise
2.Small vibration
3.Operation reliabilty
4.Simplied installation
5. Protection class:IP54/55
6.Rated frequency:50HZ/60HZ
7.Ambient temperature: -15°C≤0≤40°C
7.Rated voltage of single phase:110V,220V,380V.etc
8.Rated voltage of three phase:110V,220V,380V,415V,660V,1140V.etc
Related Products
Parameters of The Newest Type explosion proof axial flow ventilation fan for sale:
| Brand | Changyang | Fan Model | G-200B |
| Motor Type | 92-32 | Voltage | 380V |
| Frequency | 50Hz | Power | 200W |
| Current | 0.27A | Speed | 1230r/min |
| Volume | 1679m3/h | Air pressure | 65Pa |
| Noise | 72dB(A) | Protection class | 54/55 |
Introduction of Type
G series variable frequency motor fan is composed of fan cover,fan motor,fan blade,carriage,etc
| TYPE | ΦD | L1 | L2 | X | L3 | σ | A | B | n |
| G-63A | 121±1 | 9 | 35±3 | 7 | 125 | 1.2 | 10 | 6 | 3 |
| G-71A | 139 | 9 | 50 | 7 | 140 | 1.2 | 10 | 6 | 3 |
| G-80A | 155±1 | 12 | 50±3 | 7 | 140 | 1.2 | 10 | 6 | 3 |
| G-90A | 173 | 12 | 55±3 | 7 | 140 | 1.2 | 10 | 6 | 3 |
| G-100A | 194 | 12 | 55±3 | 10 | 140 | 1.2 | 10 | 6 | 3 |
| G-112A | 219 | 15 | 65 | 10 | 145 | 1.2 | 10 | 6 | 3 |
| G-132A | 256 | 17±1 | 65 | 10 | 180 | 1.2 | 10 | 6 | 3 |
| G-160A | 310 | 15 | 100 | 10 | 235 | 1.5 | 14 | 8 | 4 |
| G-180A | 352±1 | 20 | 120 | 10 | 260 | 1.5 | 14 | 8 | 4 |
| G-200A | 393±1 | 40±1 | 130±5 | 10 | 270 | 1.5 | 15 | 9 | 4 |
| G-225A | 445 | 40 | 141±5 | 12 | 300 | 2 | 15 | 9 | 4 |
| G-250A | 482±1 | 40 | 158±5 | 12 | 315 | 2 | 15 | 9 | 4 |
| G-280A | 546±1 | 50 | 167±5 | 12 | 330 | 2 | 20 | 11 | 4 |
| G-315A | 614±1 | 60 | 185±5 | 20 | 380 | 2 | 20 | 11 | 4 |
| G-355A | 700 | 70 | 195±5 | 20/40 | 400 | 2.5 | 20 | 13 | 4 |
| G-400A | 790 | 145±1 | 330±5 | 40 | 630 | 3 | 20 | 13 | 4 |
| G-450A | 884±1 | 162±1 | 350±5 | 40 | 610 | 3 | 28 | 14 | 4 |
| G-500A | 985±1 | 180±1 | 360±5 | 40 | 686 | 3 | 30 | 15 | 4 |
| TYPE | ΦD | L1 | L2 | X | L3 | σ | A | B | n |
| G-63B | 121±1 | 9±1 | 48 | 7 | 140 | 1 | 10 | 6 | 3 |
| G-71B | 139±1 | 9±1 | 60 | 7 | 140 | 1.2 | 10 | 6 | 3 |
| G-80B | 155±1 | 12±1 | 85 | 7 | 175 | 1.2 | 10 | 6 | 3 |
| G-90B | 173±1 | 12±1 | 96 | 7 | 190 | 1.2 | 10 | 6 | 3 |
| G-100B | 194±1 | 12±1 | 96 | 10 | 190 | 1.2 | 10 | 6 | 3 |
| G-112B | 219±1 | 15±1 | 100 | 10 | 180 | 1.2 | 10 | 6 | 3 |
| G-132B | 256±1 | 17±1 | 110 | 10 | 225 | 1.2 | 10 | 6 | 3 |
| G-160B | 310±1 | 15±1 | 149 | 10 | 285 | 1.5 | 14 | 8 | 4 |
| G-180B | 352±1 | 20±1 | 190 | 10 | 330 | 1.5 | 14 | 8 | 4 |
| G-200B | 393±1 | 40±1 | 190 | 10 | 330 | 1.5 | 15 | 9 | 4 |
| G-225B | 445±1 | 40±1 | 220 | 12 | 380 | 2 | 15 | 9 | 4 |
| G-250B | 482±1 | 40±1 | 240 | 12 | 395 | 2 | 15 | 9 | 4 |
| G-280B | 546±1 | 50±1 | 265 | 12 | 420 | 2 | 20 | 11 | 4 |
| G-315B | 614±1 | 60±1 | 310 | 20 | 500 | 2 | 20 | 11 | 4 |
| G-355B | 700±1 | 70±1 | 380 | 20/40 | 585 | 2.5 | 20 | 13 | 4 |
Work Flow
Company Information
Our company is a professional manufacturer of axial flow fans,which was established in 2003.Our products including G series variable frequency fans,axial flow fans,frequency coversion motor fans,frequency coversion motor cooling fan,wall fan,floor fan,exhaust fan,etc.We trust in our customers with strength technical production, high quality ventilation products,improved pre-service and after-service systerm,reasonable price and good accomplishment.
FAQ
Q1. Where is your loading port?
A: Ningbo/Shanghai, China or else port as for your request.
Q2. What's your company's main products?
A: Our company is specialized in axial flow fan.
Q3. What's the MOQ for your production?
A: The MOQ is 10pcs or depends on your products requirements.
Q4. Are you a manufactuer or trading company?
A: We are a manufactuer.
