| Prod Model: |
HV65K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50 Inch |
| Touch Point: |
10 Touch |
| Color: |
Gold, Cilver, Gray, Blue |
| OPS PC: |
Bay Trail |
| LED Brand: |
Cmo Import From Taiwan |
| Resolution: |
1920*1080P |
| USB System Upgrading Online: |
Support USB Online Upgrading Function |
| Touch Objects: |
Finnger, Pen, and Any Opaque Objects |
| Sound Output: |
2X10W |
| Power: |
USB Power Supply |
| Screen Size: |
50-60 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Customized: |
Customized |
Product Description
best and cheap touch screen for school education ,china manfacture interactive screen

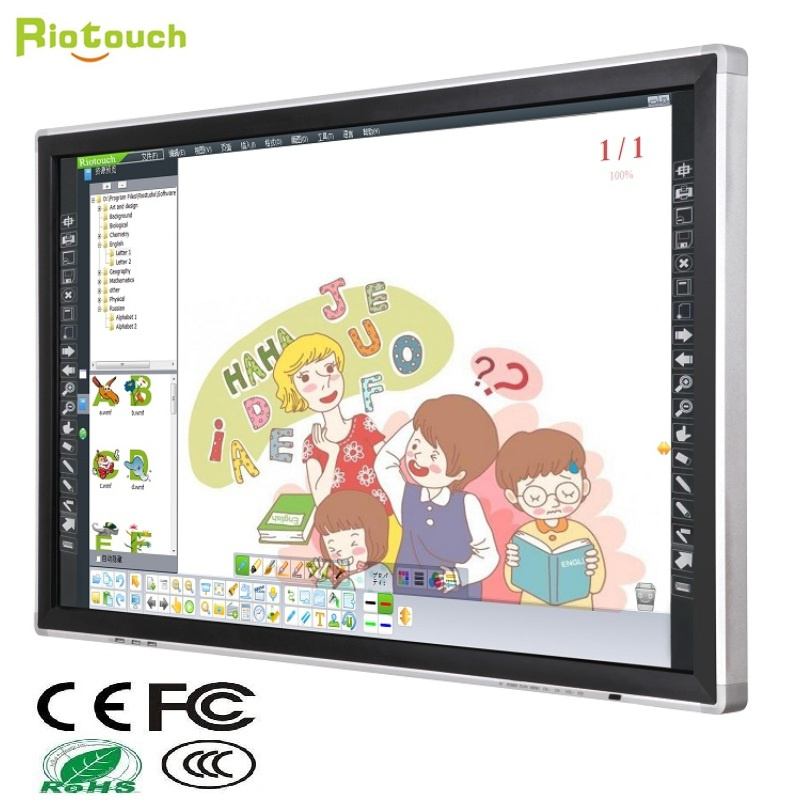

Main Features for Riotouch LED Infrared Interactive Smart Board :
1. Mature infrared multi touch technology , support 2 4 6 8 10 16 32 Points touch
2. Good quality of LED Display
3. Detachable infrared touch frame , convenient for maintain
4. OEM service is available
5. Wall mount or mobile stand
6. Free Multi Languages Teaching Software , ect .,
7. Competitive factory price
Application of GT 50,GT 65
LED | LED panel size | 50 inch |
| LED brand | CHIMEI(CMO) |
| Packing Parameters | Enternal Size | 1165.8*692.2*77mm |
| Touch Size | 1092.9*617.1mm |
| Net Weight | 35kg |
| Gross Weight | 45kg |
| Package size | 1362*230*909mm |
| Package size with wooden box | 1420*280*1030mm |
| Power Parameters | Power: | <100W |
| Standard Power | <0.73W |
| Display Parameters | Active Display Area | 1095.84 (H) x 616.41 (V) mm |
| 0.1903 (H) x 0.5708 (V) mm |
| Display Colors | 1.07 billion colors |
| Contrast | 1600:1 |
| Resolution | 1920x1080pixel |
| Brightness | 400cd/m2 |
| Viewing Angle | 176 degree |
| TV Parameters | TV Standard | NTSC M/N,PAL BG/DK/I/H,SECAM L/L |
| Multimedia Formats | MPEG1, MPEG2, MPEG4, H264, RM, RMVB, MOV, |
| USB2.0 Multimedia Playback | Vido/Audio/Picture |
| USB System Upgrading Online | Support USB online upgrading function |
| Resolution | Max. 1080P format |
| HDMI | V1.3, 720P/1080P |
| HDCP | V1.1 |
| Scanning Format | Support 1080i Video crisscross DAS (Dynamic Adaptive Scan ) |
| Sound Control | Automatic sound standard detection, support for balance adjustment and surround Sound |
| Sound Output | 2X10W |
Input and
output ports | HDMI Input port | 2-line (HDMI1 keep for Inside OPS) |
| VGA Input port | 1 Line |
| PC Audio port | 1 Line |
| Headphone/Audio output | 1 Line |
| AV Input port | 1 Line |
| Y/pb/cb/pr/cr inport | 1 Line |
| RF input ports | 1 Line |
| USB Multimedia Input ports | 1 Line |
Touch
parameters | Touch Technology | Infrared touch technology |
| Touch points | 10 finger writing; 32 touch points |
| Touch mode | Single, multipoint,Mouse click |
| Inductive objects | Finger, pen or any other opaque objects |
| Inductive size | Diameter≥5mm |
| Resolution | 32767*32767 |
| Response time | 1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:firstdot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms |
| Cursor speed | UP to 300 dots/s Multipoint,mouse click:125 dot/s |
| Operating life | ≥60,000,000 times to click |
| Power | USB power supply (4.6-5V, DC) |
| Power consumption | ≤1w |
| Operation Systerm | Windows 8, windows 7, XP, Mac, Linux, Android |
| Calibration | HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration. |
| Anti-light decay function | Anti-light decay circuits to prevent the performance degradation caused by long working hours |
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions |
| Antilight interference function | can work properly in direct sunlight condition |
| Standard Accessories | TV Remote Control | 1pcs |
| Power cable | 1.5m |
| HDMI cable | 1.5m (if without PC) |
| VGA Input port | 1.5m (if without PC) |
| USB | 5M cable (if without PC) |
| Audio Cable | 1.5m |
| CD | 1 PCS (if without PC) |
| Pen without ink | 2 PCS |
| Warranty Card | 1 Pcs |
| User manul | 1 PCS |
| Wall brackets | Screws, wall mount kits |
| Optional Configuration | | The Inside PC is Bay Trail style with WIN8 OS |
| CPU | Intel Z3735F 1.33GHz Quad core |
| RAM | 2G DDR3 1333 |
| Hard Disk | 32GB SSD |
| LAN Card | integrated 100/1000M |
| Wireless LAN Card | integrated 802.11a/b/g/n |
| Other Accessories | Wireless Mouse | Optional |
| Mobile Stand | Optional |
| LED | LED panel size | 50 inch |
| LED brand | CHIMEI(CMO) |
| Packing Parameters | Enternal Size | 1165.8*692.2*77mm |
| Touch Size | 1092.9*617.1mm |
| Net Weight | 35kg |
| Gross Weight | 45kg |
| Package size | 1362*230*909mm |
| Package size with wooden box | 1420*280*1030mm |
| Power Parameters | Power: | <100W |
| Standard Power | <0.73W |
| Display Parameters | Active Display Area | 1095.84 (H) x 616.41 (V) mm |
| 0.1903 (H) x 0.5708 (V) mm |
| Display Colors | 1.07 billion colors |
| Contrast | 1600:1 |
| Resolution | 1920x1080pixel |
| Brightness | 400cd/m2 |
| Viewing Angle | 176 degree |
| TV Parameters | TV Standard | NTSC M/N,PAL BG/DK/I/H,SECAM L/L |
| Multimedia Formats | MPEG1, MPEG2, MPEG4, H264, RM, RMVB, MOV, |
| USB2.0 Multimedia Playback | Vido/Audio/Picture |
| USB System Upgrading Online | Support USB online upgrading function |
| Resolution | Max. 1080P format |
| HDMI | V1.3, 720P/1080P |
| HDCP | V1.1 |
| Scanning Format | Support 1080i Video crisscross DAS (Dynamic Adaptive Scan ) |
| Sound Control | Automatic sound standard detection, support for balance adjustment and surround Sound |
| Sound Output | 2X10W |
Input and
output ports | HDMI Input port | 2-line (HDMI1 keep for Inside OPS) |
| VGA Input port | 1 Line |
| PC Audio port | 1 Line |
| Headphone/Audio output | 1 Line |
| AV Input port | 1 Line |
| Y/pb/cb/pr/cr inport | 1 Line |
| RF input ports | 1 Line |
| USB Multimedia Input ports | 1 Line |
Touch
parameters | Touch Technology | Infrared touch technology |
| Touch points | 10 finger writing; 32 touch points |
| Touch mode | Single, multipoint,Mouse click |
| Inductive objects | Finger, pen or any other opaque objects |
| Inductive size | Diameter≥5mm |
| Resolution | 32767*32767 |
| Response time | 1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:firstdot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms |
| Cursor speed | UP to 300 dots/s Multipoint,mouse click:125 dot/s |
| Operating life | ≥60,000,000 times to click |
| Power | USB power supply (4.6-5V, DC) |
| Power consumption | ≤1w |
| Operation Systerm | Windows 8, windows 7, XP, Mac, Linux, Android |
| Calibration | HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration. |
| Anti-light decay function | Anti-light decay circuits to prevent the performance degradation caused by long working hours |
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions |
| Antilight interference function | can work properly in direct sunlight condition |
| Standard Accessories | TV Remote Control | 1pcs |
| Power cable | 1.5m |
| HDMI cable | 1.5m (if without PC) |
| VGA Input port | 1.5m (if without PC) |
| USB | 5M cable (if without PC) |
| Audio Cable | 1.5m |
| CD | 1 PCS (if without PC) |
| Pen without ink | 2 PCS |
| Warranty Card | 1 Pcs |
| User manul | 1 PCS |
| Wall brackets | Screws, wall mount kits |
| Optional Configuration | | The Inside PC is Bay Trail style with WIN8 OS |
| CPU | Intel Z3735F 1.33GHz Quad core |
| RAM | 2G DDR3 1333 |
| Hard Disk | 32GB SSD |
| LAN Card | integrated 100/1000M |
| Wireless LAN Card | integrated 802.11a/b/g/n |
| Other Accessories | Wireless Mouse | Optional |
| Mobile Stand | Optional |
