| Prod Model: |
P6.67 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lifespan: |
100,000 Hours |
| Warranty: |
2 Years |
| Bringhtness: |
850~1000CD./Sq.M |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Certification: |
EMC |
| Pixel Configuration: |
1R,1G,1B |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Scanning Mode: |
1/12 Scan |
| Pixel Pitch: |
6.67mm |
| Pixel Density: |
22500dots/M2 |
| System Operating Platform: |
Winxp, Win98,Win7 |
Product Description

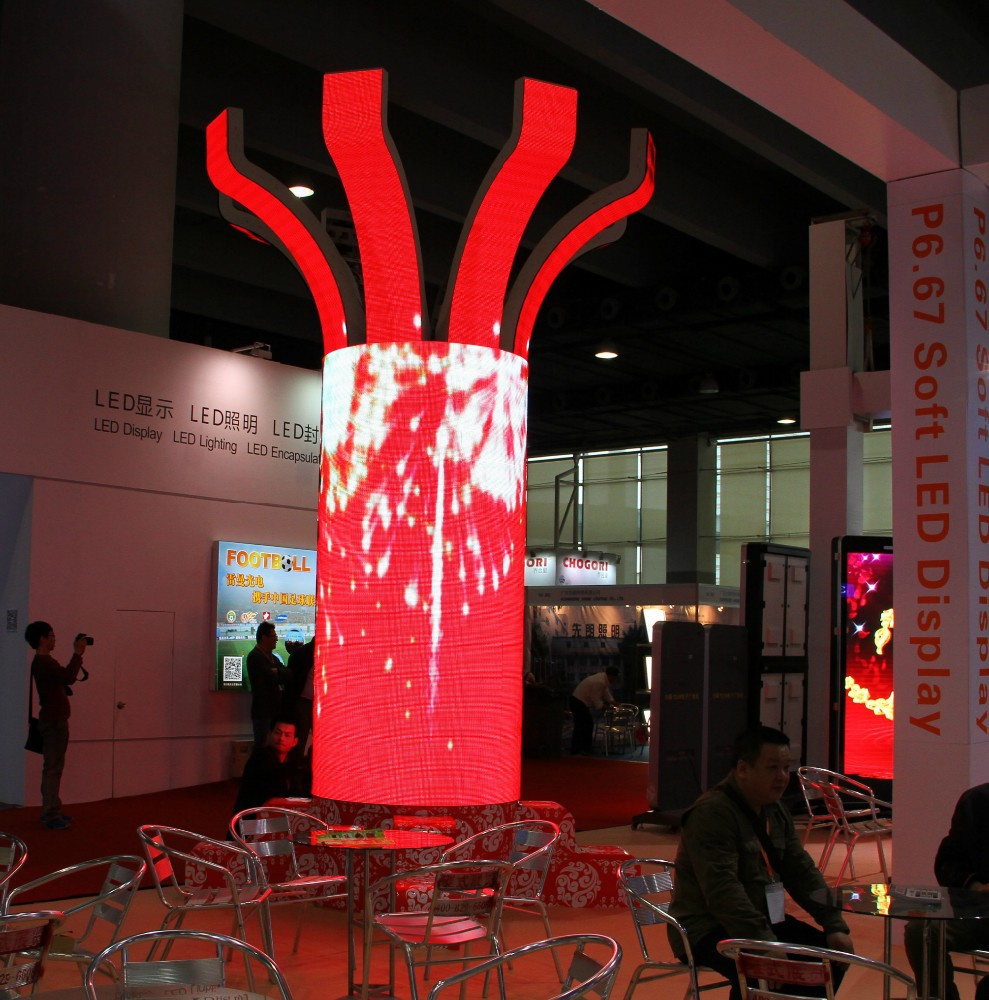

p6.67 led display flexiable moudle with high performance
| Specification | P6.67 |
| Item 1 ---LED Chip |
|
| Brand | Epistar ,Opto , Cree , Nichia |
| Country of Origin | Taiwan. United States. Japan |
| Span life | ≥ 100,000 Hrs |
| Item 2--- Modules |
|
| Pixel Pitch | PH 6.67 |
| LED configuration | SMD 3528 |
| LED Composition | 1R1G1B |
| Modules size | 320 (L) mm * 160 (H) mm |
| Driving IC | MBI 5024/5041 |
| Driving Method | Constant Current / (1/12 scan) |
| Item 3--- Cabinet |
|
| Screen size | 640mm(W)*640mm(H)*80mm(D) |
| Cabinet Material | Iron |
| Installation Method | Fix / Hanging / Rental |
| Cabinet weight | 60Kg |
| Item 4--- Display screen |
|
| Brightness | ≥ 1100cd/m2 |
| Viewing Angle | 360° |
| Refresh Rate | ≥1920 Hz |
| Fresh Requency | 60fps |
| Input Voltage | AC220V/50Hz or AC110V/60Hz |
| Power Consumption | Max.:420 W/ Average:168W/ |
| Front and Back protective Grade | IP43 |
| Signal Output | HDMI DVI VGA RGBHV PbPr (HDTV) |
| Signal Connection | Video TB SDI |
| Controlling System | Linsn/ Colorlight / Nova/ DB Start |
| Operating System | Windows98/me/2000/NT/XP Window7 ,Vistar |
specification:
Description:
1.Good visualization
Glassbased design allows the light to pass through the glass without any influence to the building structure around.Transparency of the glass screen can up to 85%.
2.Ultra-thin, and ultra-light.
The thick can up to 1cm, and the weight can up to 7kg/m2
High brightness, and high definition.
The brightness can up to 8500 cd/m2.
4.Easy and convenient maintenance.
It can be maintained from inside, safer and more convenient.
5.Saving lighting costs of the whole building.
Besides good advertising effect, LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.
6.Wide use range.
Wherever the glass wall is, glass LED display can be installed. Such as bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc.
Applications:
Widely used in glass curtain wall places, such as banks, shopping malls, theaters, commercial streets, stores, hotels, municipal public buildings, landmarks and other advertising.
Packing and transportation
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
About Hero
8-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.
After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
For more led information about p10 led display moudle with high performance ,welcome to our officer website:http://www.led-hero.com
