Backup LCD Display for All Trucks (SP-727)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SP-727 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
400(CD/M2) |
| Free Operating Voltage: |
DC8-32V |
| OSD Menu Function: |
Separately Set Each Camera Mirror/Normal Image |
| Load Dump: |
DC14+87V(Td400ms) 5pulses |
| Placement: |
Headrest |
| Certification: |
ISO |
| Voltage: |
9-36V |
| Video Output: |
2 RCA |
Product Description

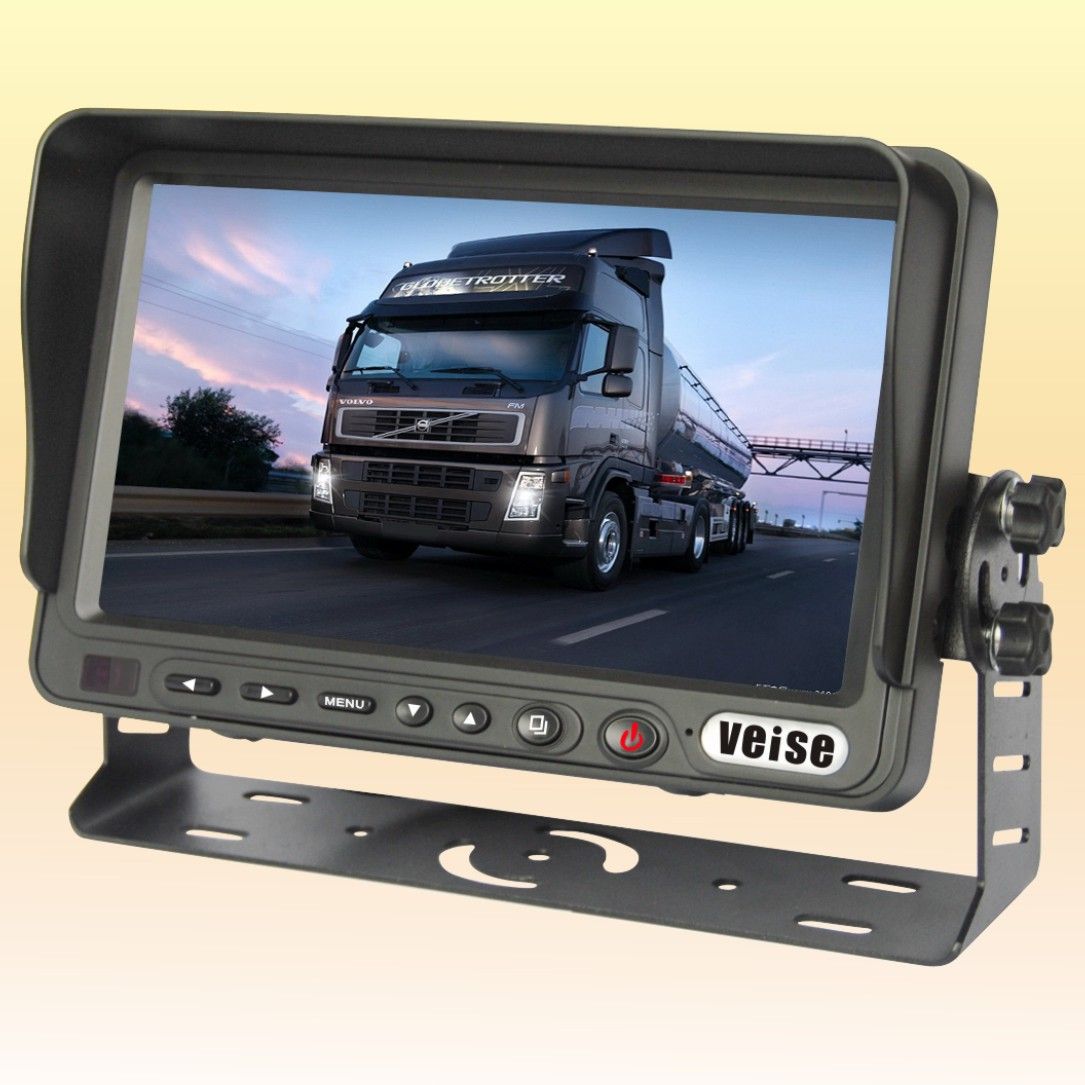

Backup LCD Display For All Trucks (SP-727)
Display Resolution: 800RGB(H) X 480(V)
Free Operating Voltage DC8~32 Volts
Built-in Day/Night Sensor for Illumination of the Control Knobs
It Features an On-Screen Menu for All Settings: Normal/Mirror view, Reversing Image Delay, Priority of Reverse Camera, Automatic switch ON (by reverse gear and or by direction lights)
PRODUCT SPECIFICATION |
| 7" Digital Screen TFT LCD Reversing Monitor (Model: SP-727) |
| Can With Two Cameras View Input |
| Display Resolution: 800RGB(H) X 480(V) dot |
| Wide view angle(CR> 10): (up/ down): 60/70 (left/right): 75/75 |
| Brightness (cd/m2): 400 |
| Contrast ratio: 500: 1 |
| Life time: 20000Hours |
| Color system: PAL/NTSC |
| Responsing time less than 2" when reversing |
| 4 image switch automatically, shift time 0-30" |
| Auto mirror image video when reversing |
| Operating temperature: -20º C to +70º C |
| Storage temperature: -30º C to +80º C |
| Power consumption: DC8~32V |
| External dimensions: W*H*D(185X123X50)mm |
| Weight Approx: 380g |
|
| Product Accessories |
| Auto Cigarette Lighter, Remote Control, User' s Guide |
Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.
Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.
Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.
Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.
Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.
Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
