B3020s BLDC Motor for Desk/Stable Air Purifier, DC5V
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
3000/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
B3020S |
| Markets: |
North America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe |
| Size: |
30*20 |
| Structure: |
Electromagnetic |
| Application: |
Home Application |
| Brand: |
Hengdrive |
| Certification: |
CE Ts16949 |
Product Description

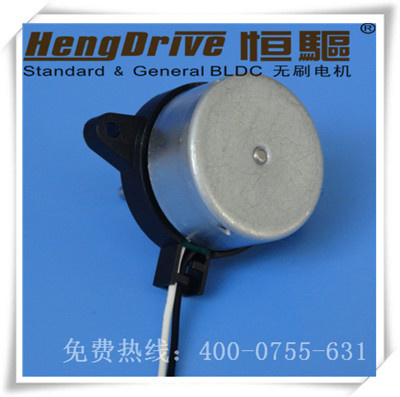

B3020S Outer Rotor 3-Phase Brushless DC Motor
Output Power: 0.3W~12W
Weight: 75g (Approx. )
Typical Application
Home Application: Small Electric Fanner, USB Fan, Small Air Fresher, Electric Cooker
Medical Apparatus: Medical Pump, Medical Blower, Super-Silence Fan
Industry Equipment: Electric Valve, Actuator
Business Equipment: Printer, Copier, Projector
Personal Care: Shaver, Hair Dryer, Massager
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
|
Model |
Voltage(V) |
No Load |
Rated Load |
Starting |
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
B3020S-S01 (RU-M) |
5-12 |
5 |
4600 |
0.26 |
1.472 |
4150 |
0.36 |
0.64 |
15.12 |
1.29 |
|
B3020S-S02(NdFeB) |
5-12 |
5 |
3060 |
0.19 |
6.308 |
2130 |
0.42 |
1.41 |
20.56 |
0.96 |
|
B3020S-S03 (RU-M) |
8-26 |
12 |
11450 |
0.17 |
4.433 |
8530 |
0.49 |
3.96 |
17.39 |
1.44 |
|
B3020S-S04(NdFeB) |
8-26 |
12 |
7090 |
0.19 |
9.391 |
5440 |
0.63 |
5.35 |
40.54 |
2.09 |
|
|
|
|
|
|
|
|
|
|
|
|
Hengdrive is China's top ranking company that specialized in R&D, manufacturing and sales of Brushless DC motor (BLDC) with total investment of 10 million USD. We are the pioneer of design and manufacturing of low cost and high quality Brushless based on standard, general and exchangeable princeple in China.
The executive team of Hengdrive is from multinational corporation of motor, and our technology comes from the most advanced industry accumulation and patent breakthrough, we are setting up China first-class and famous micro motor brand and smart motive power motor system based on modern international enterprise management & cultural system.
Hengdrive` BLDC adopts Integrated circuit control current reverse motor continuous rotation, with stepless speed regulation, digital control and simple construction, it is higher efficiency, longer life, lower EMI, lower noise, lower vibration than brush motor and AC induction motor. It can applied to many filed, such as home appliances, digital control, medical apparatus, personal care, automobile parts, business equipment, industry facilities, Security & monitoring equipment, Hard disk drives, etc; Represents trend of application of micro motor; Can meet national industrial policy-oriented of energy conservation, environment protection, low carbon.
Hengdrive` BLDC adopt new special drive chip, driver & motor integration together with drive circuit patent of independent development; We have the most standard DC brushless motor series in the world, 9 series of inner rotor brushless motors with diameter 16, 22, 24, 28, 36, 42, 56, 80, 90mm, 9 series of outer rotor brushless motor with diameter 20, 24, 30, 37, 42, 60, 70, 92, 120mm, output power from 0.1W to 1000W; With standard interface, general & interchange, simple operation, can replace easily brush and AC induction motor.
Hengdrive is China first and leading company in hi-tech BLDC motor. Its essence is to perfectly cooperating with customers in technology, quality, cost and efficiency. We not only provide BLDC, but also provide electronic control system, power transmission system, and smart driving force solution.
