| Prod Model: |
200FZY2-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Cooling |
| Voltage: |
220V |
| Frequency: |
50Hz |
| Phase: |
1 Phase |
| Speed: |
2600rpm |
| Blade Material: |
Plastic |
| Electric Current Type: |
DC |
| Mounting: |
Roof Fan |
| Certification: |
CCC |
Product Description

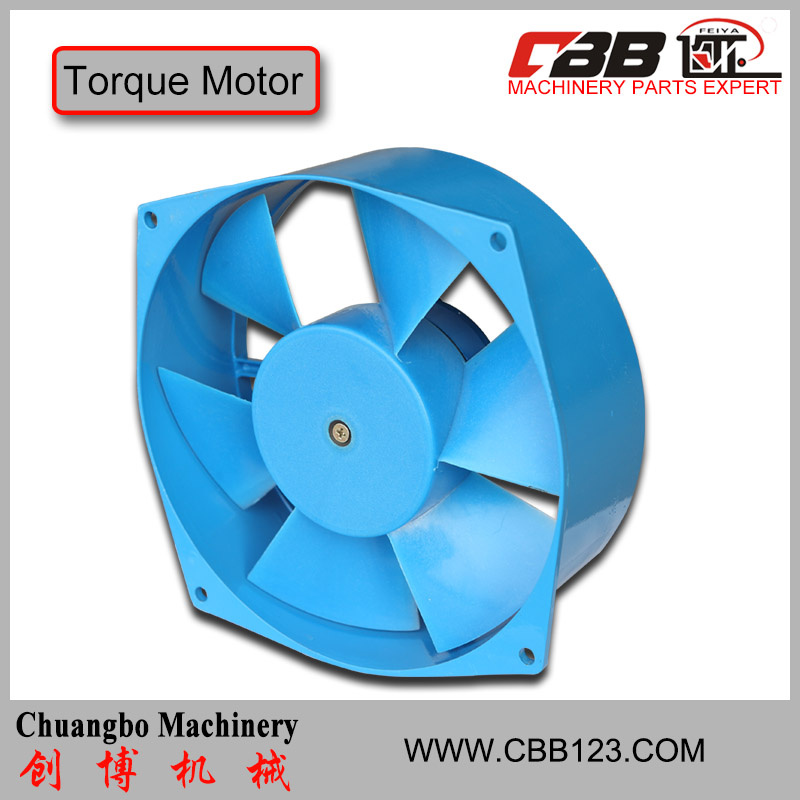

Axial Flow Fan is consists of aluminum alloy shell, plastic blade and electrical machine. It has such advantages of small size, installation convenience, large wind, small vibration and low noise.
Environment temperature: -40 centigrade-- +55 centigrade
Height about sea level: 55Kpa(2500m)
Relative humidity: 90%-95%
The scope of application:
The fan is mainly used in ground automatic control device which needs big air flow, and ventilation and heat dispersion of large-scale electric equipment, cabinet and electric welder. It can also be applied for ventilation, breathing and purify in building and workshop.
| Type | Voltage | power rating | phase number | input power | electric current | rotate speed |
| 150FZY2-D | 220V | 50HZ | 1 | 30W | 0.15A | 2600r/min |
| 200FZY2-D | 220V | 50HZ | 1 | 65W | 0.30A | 2600r/min |
| Type | Blastvolume | Noise | Weight | Electric power | Insulate | Environmental conditions |
| 150FZY2-D | 5.5m³ /min | 65 | 0.9kg | 1.0/400μ F/V | E grade | 2 |
| 200FZY2-D | 13m³ /min | 70 | 1.5kg | 1.0/400μ F/V | E grade | 2 |
