Automotive Lighting Vacuum Metallizing Machine/Automobile Light PVD Coating Equipment/System

Automotive Lighting Vacuum Metallizing Machine/Automobile Light PVD Coating Equipment/System
Price: US $ 40000-180000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: ZZ-1214, ZZ-1618, ZZ-1820
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Automotive Lighting Vacuum Coating Machine
Type 1: Automotive Lighting Silver Coating Machine
Coating Technology: Thermal Evaporation Coating
Control Mode: PLC Touch Screen Automatic Control
Chamber Size: 1600*1800mm, 1800*2000mm
Coating Film: Aluminum, Chrome, Nickle etc.
Coating Color: Silver, Golden, Red, Green, Blue, Rainbow Color
Coating Material: ABS, PP, Acrylic Plastic Products, Glass, Ceramic
Application: Cosmetic Caps, Shoe Heel, Acrylic Glass etc.
Brand: Hcvac, Dongguan, China
Coating: Vacuum Coating
Type: Automotive Lighting Vacuum Coating Machine
Substrate: Automotive Lighting Vacuum Coating Machine

Product Description

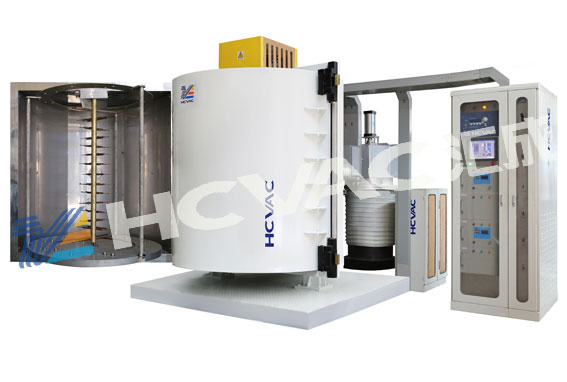

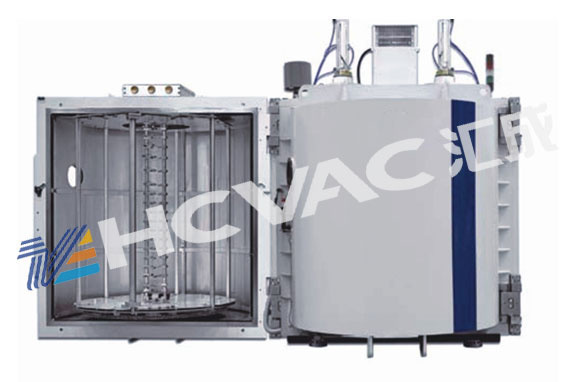

Automotive lighting vacuum metallizing machine/Automobile light PVD coating equipment/system

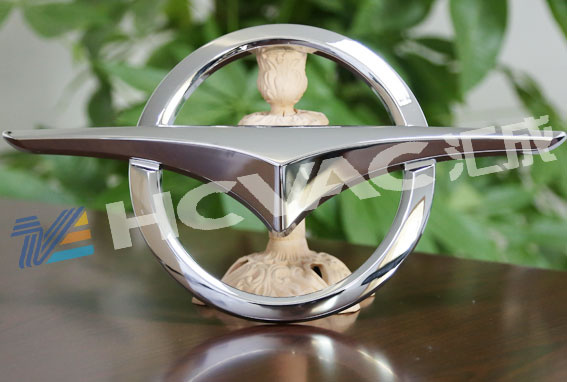

This machine is mainly used for plastic car parts to get a decorative coating, like chrome coating, alumnium coating, nickel coating etc. the coating is strong adhesion, shinning and smooth. There are different sizes for different prodcution capacity, machine is full automatic control, so easy to operate.

This is evaporation-coated device in a vacuum chamber using electrical resistance heating, will close in the resistance wire on the metal wire (aluminum) vaporization melting, vaporization of the metal elements deposited on the substrate, but was Smooth high reflectivity of the coating to the surface of decorative items landscaping purposes.

The equipment is: a reasonable structure, coating evenly into good-quality, pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability. Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys and other industries.

Machinable materials include: ABS, PS, PP, PC, PVC, nylon, metal, Boli, glass, ceramics, such as TPU.

Electroplating effects can include: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven color;

Coating color: gold, silver, red, blue, green, purple, seven color, and so on.
The company can design all based on user requirements specification models of Vacuum Coaters. Vacuum units and electric control system can be designed according to user requirements configuration.

Working Principle:

·The whole process like vacuum pumping, plasma cleaning, Al film and the SiOx protective film coating, deflating etc. is all running fully automaticly.

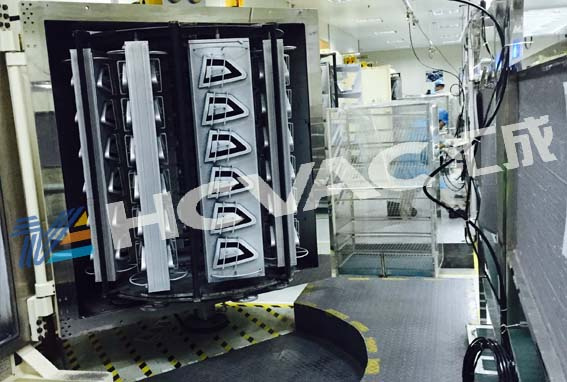

·Two doors (optional) with 6-axis (also 8 axis optional) rotation &revolution jig and evaporation motor. When handle the workpiece in one door. It can upload and unload the workpiece and install AL materials in another door at the same time. So the production performance is very excellent.

·The aluminum deposition adopts resistance heating evaporation source, complex three-dimensional structure can also be uniform deposited.

·SiOx protective film coating system is optional.


High performance is expected of today for automotive products whether they are used in racing environments or for everyday transportation.  Performance, reliability, and service life must be optimized in order to meet the demands of the marketplace.  Coatings for precision engine and drivetrain components can help meet the market demand by improving the engineering performance of the components.  Wear-resistance, extended fatigue life, and corrosion-resistance can all be provided with coatings as long as the coating process does not degrade the bulk properties and dimensionality of the component.  The low temperature  automotive parts PVD coating machine process is designed specifically for these high performance applications.



Specifications:



mode dimension
ZZ-1200  ZZ-1400  ZZ-1600  ZZ-1800

1200*1400mm  1400*1600mm  1600*1800mm1800*2000mm
film TypeSemitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc.
Power source TypeThermal evaporation power, ion bombard power, RF power
Vacuum chamber structureVertical double/single door, horizontal single door, pump system postposition
Ultimate vacuum8.0*10 -4 Pa
Vacuum systemDiffusion pump +Roots pump +Mechanical pump +Holding pump
Pump timePump from atmosphere to 5.0*10 -2 , about 6 minutes
Workpiece motion modePublic rotation/Frequency control


High performance is expected of today for automotive products whether they are used in racing environments or for everyday transportation.  Performance, reliability, and service life must be optimized in order to meet the demands of the marketplace.  Coatings for precision engine and drivetrain components can help meet the market demand by improving the engineering performance of the components.  Wear-resistance, extended fatigue life, and corrosion-resistance can all be provided with coatings as long as the coating process does not degrade the bulk properties and dimensionality of the component.  The low temperature  automotive parts PVD coating machine process is designed specifically for these high performance applications.
