| Prod Model: |
BS-216L Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Galvanized Ef, A3 Steel Casing With Powe Painting |
| Series: |
Super Intelligent Series |
| Type: |
Electrostatic Precipitator |
Product Description

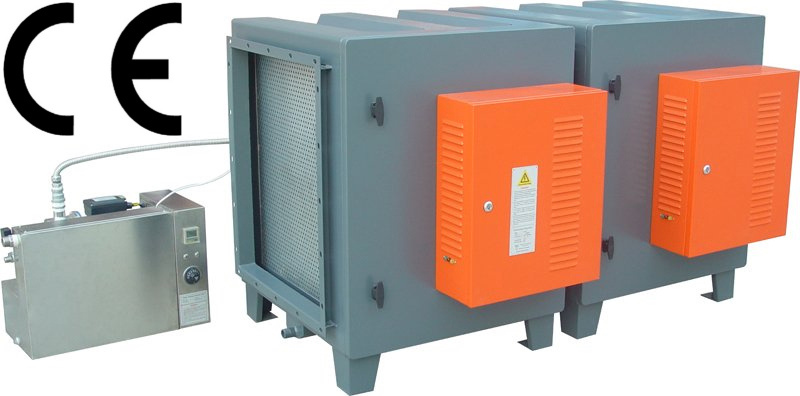

Our Automatically Cleaning Air Purifier with Electrostatic Precipitator(ESP) for Restaurant Cooking Fume Disposal System is a specially designed commercial air purifier with electrostatic air filter capable of capturing 95% airborne oil mist, grease vapor and exhaust fume, which makes it a perfect exhaust air filtering unit for kitchen exhaust ventilation and air cleaning system of food service establishments with large exhaust airflow volume.
Features of the Automatically Cleaning Air Purifier with Electrostatic Precipitator(ESP) for Restaurant Cooking Fume Disposal System:
1)Low Altitude Emission, Auto-clean Function.
2)Intelligent auto-clean function which automatically cleans the ESP according to programmed timeframes. The ESP is enabled to operate for a long period of time without the need for frequent manual cleaning.
3)Fume & mist elimination efficiency ≥ 95% and low altitude emission: 100% permissible.
4)External control interface to facilitate linkage control and remote control.
5)Most smell eliminated, no complaints will be incurred.
6)Self monitoring and malfunction reporting function.
1. The globally advanced electrostatic technologies, combined with our patented cylinder honeycomb electric fields, the filtration and purification of Self-cleaning Electrostatic Cooking Fume and Grease Eliminator can thus be most efficiently achieved.
2. Disposal efficiency can reach up to 95% based on 2 stages of electric fields applied in this Self-cleaning Electrostatic Cooking Fume and Grease Eliminator.
3. Galvanized electric field, stainless steel cathode needle, stainless steel spray bar, A3 sheet cover, with outboard water tank and pump.
4. Equipped with the PLC controlled self-cleaning program to enssure the longtime operation without manual cleaning, the cleaning cycle of our Self-cleaning Electrostatic Cooking Fume and Grease Eliminator can be considerably prolonged to approximately two months. (Traditional ESPs need to be cleaned once or twice every week to maintain the efficiency. )
5. With modular design of our Self-cleaning Electrostatic Cooking Fume and Grease Eliminator, all major components can be assembled easily for operation or removed easily for maintenance and cleaning.
6. Complemented with other prominent characteristics, such as the circuit controlled self-protection and malfuntion diagnosis system, the multi-choice models of running operation, the energy-saving effect, and so on, Kelan Electrostatic Precipitators are the well-rounded professional Self-cleaning Electrostatic Cooking Fume and Grease Eliminator, the exact restaurants or hotel kitchens ventilation equipment you are looking for.
Certificates and Awards:
1. CE (certificate of safety conformity) granted, UL867, UL710 and IEC60335 tested, ensuring the internationally standard safety and reliability of our Self-cleaning Electrostatic Cooking Fume and Grease Eliminator.
2. ISO9001: 2008 tested quality control system, guaranteeing that all raw materials, from the stainless steel sheets to the circuit board components, are of internationally-familiar brand, and are processed by the numerical controlling system, all the finished products are put to test and trial operation, and all the sold products are guaranteed one year free repair and lifelong maintenance.
3. Membership of our company admitted by the China Environmental Protection Industry Association, Guangdong Environmental Protection Industry Association, and the Shanghai Environmental Protection Industry Association.
4. Status of our company verified by Guangdong Province as an Advanced and High Technology Enterprise and a Privately-run Enterprise of the Science and Technology Industry.
5. Technology Innovation Award given to the Kelan Electrostatic Precipitator series products in 2007 by Guangdong Environmental Protection Industry Association.
|
Model |
Draft (cmh) |
Size L×W×H mm |
Weight (Kg) |
Power (W) |
Outboard
Auto-clean Kit
Size:
600×300×400mm
Weight:25Kg |
|
BS-216LS |
2000 |
820×960×995 |
95 |
580 |
|
BS-216L |
4000 |
1640×830×935 |
160 |
1040 |
|
BS-216LL |
6000 |
1640×960×995 |
195 |
1180 |
|
BS-216Q-8K |
8000 |
1640×1025×1215 |
245 |
1620 |
|
BS-216Q-10K |
10000 |
1640×1260×1475 |
360 |
2200 |
|
BS-216Q-12K |
12000 |
1640×1395×1475 |
390 |
2380 |
|
BS-216Q-14K |
14000 |
1640×1545×1440 |
420 |
2700 |
|
BS-216Q-16K |
16000 |
2460×1260×1475 |
530 |
3750 |
|
BS-216Q-20K |
20000 |
2460×1395×1475 |
580 |
3850 |
|
BS-216Q-24K |
24000 |
2460×1545×1440 |
620 |
4400 |
|
BS-216Q-30K |
30000 |
3280×1395×1475 |
780 |
4800 |
|
BS-216Q-36K |
36000 |
3280×1545×1440 |
830 |
5500 |
Formerly named the Tianlan (SkyBlue) Environment-friendly Electric Equipment Company when it was founded in 1992, we Kelantechnics have been devoting ourselves in electrostatic precipitation technologies, fume/dust purification equipment & exhaust emission control solutions for 16 years in a row.
Through the integrated efforts made by our talented technologists, our experienced marketing teams, our scientific management system and our efficient after-sales services, Kelantechnics has been forged into a highly specialized modern enterprise with a wide array of certifications, such as the CE, UL867, UL710 & IEC60335 for products performance, ISO9001: 2000 for our quality control system, and a dozen more patent certifications covering the whole range of our ESP products.
More specifically, there are:
1. DOP oil recycling ESPs for PVC product making industries;
2. Black Smoke purifying ESPs for fuel-oil-fired industrial boilers and diesel generators;
3. Other industrial ESPs to tackle the airborne oil & smoke particulates produced by dyeing and finishing, heat treatment process, tin soldering, food processing industries, etc;
4. "Exhaust hood" style ESP that incorporates the extraction functions of normal kitchen hood and the purification effects of our patented ESP;
5. "Pipe style" ESPs which can be used as the air-handling units for the kitchen ventilation ductwork system;
6. Smokeless barbecue ESPs which are ideal for recreational snack suppliers running business in residential or commercial areas, like outdoor bars, public parks, amusement parks, shopping malls, etc;
7. Incinerator ESPs for the disposal of incineration residue of burning worship packages, including joss paper, incense sticks, candles, etc.
8. High efficiency self-cleaning cartridge dust collectors for fly-ash collection and removal in chemical, electronics, food processing, mechanical processing, pharmaceutical production, grinding and polishing, woodworking processing and construction material processing & production industries.
Our products do sell well in Hong Kong, Macau, Malaysia, Taiwan, Thailand and Vietnam. We have established long-term business relationships with a diverse variety of industries and enterprises in these areas, including environmental engineering, import & export trading, catering equipment suppliers, industrial machinery suppliers, and individual clients from all walks of life.
The advanced technologies, reliable quality and the increasing reputation of our sold products in the Southeast Asia have also intrigued other organizations' intention to distribute our products in other parts of the globe.
Our target export markets are mainly based in countries and areas in Southeast Asia, India and Pakistan, the Middle East, South America and so on.
For any company from any part of the world, we would always sincerely welcome them to be our agents or distributors, or cooperate with us in any other mutually-beneficial way.
