| Prod Model: |
FY-TR90 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE Erp FCC RoHS |
| Power: |
90w |
| Adapter: |
Universal With 12PCS Automatic Tips |
| Usage: |
Laptop |
| Output Type: |
DC |
| Connection: |
Desktop |
Product Description

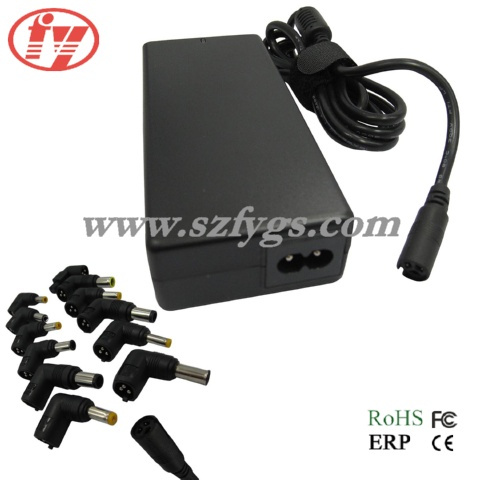

90W Automatic Universal power adapter
Specification:
Input: 100-240V 50-60Hz
Output:
15V-6.0A
16V 5.6A
18.5V 4.8A
19V 4.7A
19.5V 4.6A
20V 4.5A
Features:
1. With high efficiency and true voltage output automatically(without operation by hand)
2. Auto-reset to the lowest voltage(+15V) after current interruption to protect your Laptop.
3. Built-in dual-protection design, constant-current protection, constant-voltage protection. (Inlucding OPP/OCp/OVP/SCP)
4. Includes: 8interchangeable laptop connectors(including 4 option ones)
5. Status light indicates unit is functioning properly.
|
Type |
OUTPUT |
CONNECTOR |
FIT FOR LAPTOPS |
|
15.0/M1 |
15.0V/MA*90W |
6.3*3.0MM |
TOSHIBA |
|
16.0V/M2 |
16.0V/MA*90W |
5.5*2.5MM |
IBM,LENOVO |
|
16.0V/M3 |
16.0V/MA*90W |
6.5*4.4MM |
SONY,FUJITSU |
|
18.5V/M4 |
18.5V/MA*90W |
4.8*1.7MM |
COMPAQ,HP |
|
19.0V/M5 |
19.0V/MA*90W |
5.5*2.5MM |
ACER,COMPAQ,DELTA,HP,FUJITSU,GATEWAY,TOSHIBA,LITEON |
|
19.0V/M6 |
19.0V/MA*90W |
5.0*3.0MM |
SAMSUNG |
|
19.0V/M7 |
19.0V/MA*90W |
5.5*2.1MM |
ACER,COMPAQ,DELTA,HP,FUJITSU,GATEWAY,TOSHIBA,LITEON |
|
19.5V/M8 |
19.5V/MA*90W |
6.5*4.4MM |
SONY |
|
19.5V/M9 |
19.5V/MA*90W |
7.4*5.0MM |
DELL OPTION |
|
20.0V/M10 |
20.0V/MA*90W |
3 HOLES |
DELL OPTION |
|
20.0V/M11 |
20.0V/MA*90W |
7.9*5.4MM |
IBM,LENOVO OPTION |
HK Flying International Co., Limited, is specialized in supplying and exporting of all kinds of electrical & electronics products including laptop adapter, adapter, notebook adapter and AC adapter which have many years experience in this field.
