| Prod Model: |
GSD-WD300t pcb soldering machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PCB Soldering Machine: |
Anti-Oxidation |
| PCB Solder: |
Double Wave |
| Easy Control Wave Solering Machine: |
Touch Screen +PLC |
| Solder Pot Capacity: |
210kg |
| Flux Capacity: |
6L |
| Pre-Heating Zone: |
1300mm,Room Temperature--250 Centigrade |
| PCB Size: |
30-300 Mm |
| Convey Speed: |
0-200mm/ Min |
| Power Supply: |
AC380V 50 Hz |
| Net Weight: |
900 Kg |
| Precision: |
High Precision |
| Demoulding: |
Automatic |
| Mould Life: |
300,000-1,000,000 shots |
| Customized: |
Customized |
| Condition: |
New |
| Automatic Grade: |
Automatic |
| Certification: |
RoHS |
| Heating System: |
Pid Infrared Ray |
| Function: |
Soldering Components on PCB Boards |
| Warranty: |
4 Years |
Product Description

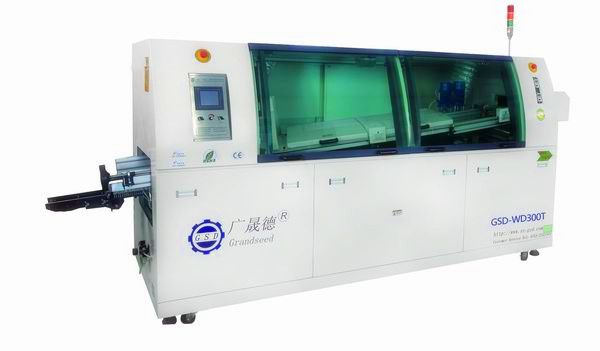

GSD-WD300T lead free ,double wave crest. wave soldering machine ,middle-size, control by touch screen +PLC
This machine used for soldering components on pcb after the process of inserting the components on the pcb (printed circuit board) , can Applications to all kinds of electronics and home appliances manufacturing ,such as TV ,Laptop ,Mobile phone, Led lights power driver , battery charges ,air conditioners ,computers etc .
Features:
1. Efficient, energy-saving, lead-free, environment-friendly, safe, and brand-
New design, simple operation, convenient maintenance.
2...Full computer control with windows XP interface, kinetic energy monitoring, greatly
Improving the work efficiency and reducing the production cost
3...Automatic power system, frequency converter control, automatic board input system
4...Flux spray system using scanning spray nozzle, Japanese nozzles and rodless
Pneumatic cylinders and PLC control, accurate and reliable
5...Preheating system uses 3stage powerful air system, excellent heat preservation,
Temperature warm-up, temperature uniformity, no more than ± 2º C
6...Special alloy transportation chain claws, nonstick tin, reinforced, and ensure the
Quality of welding
7...Tin stove adopts imported high frequency conversion motor independent control,
Stable performance
8...Leadfree solder furnace with independent design, environment protection and
Safety, easy to clean
9...Tin heating furnace uses high-speed PID and 2-stept independent outer -
Heating control, warm-up quickly and eliminates the flaws of stove tin explodes
10...With time controller, can preset switch functions, tin stove machine heating picks
Up in 90minutes
11...With black box memory function, can always get at production management
Records, improve work efficiency
12...Reasonable design of environment protection, and automatic washing claw,
Ensure the cleanliness of claws
13...The design is reasonable and safe with sensitive fault alarm system, to ensure the
Stable performance and the safety of operators
GSD-WD300T ,Lead free, Wave Soldering Equipment
ITEMS
| SPECIFICATION | Control method
| touch screen +PLC | Convey or motor
| 1P AC220V,60W | Convey or speed
| 0-2000mm/min | PCB size
| 30-300mm(w) | Flux capacity
| 6L | Pre-heating zone
| 1300mm,room temperature--250 centigrade | Solder pot temperature
| 1KW*9PCS room temperature---300 centigrade | Solder pot capacity
| 210KG | Wave motor
| 3P AC220V,0.18KW*2PCS | Finger cleaning pump
| 1P AC220V 6W | Convey or direction
| L→R (R→L optional) | Convey or angle
| 3_6 º | Flux pressure
| 3_5BAR | Power supply
| AC380V 50Hz/60Hz | Normal working power/
| 5KW/18KW | Outside dimension
| 3560(L)*1200(W)*1650(H) | Dimension
| 2700(L)*1200(W)*1650(H) | Net weight
| 900KG |
|
|
Grandseed is specialized in researching, developing, manufacturing and marketing lead free wave soldering, relow soldering, SMT peripheral equipment, and other electronic equipment. The company is well known in China depending on its quality products, complete product variety and considerate after-sale service from its powerful technical strength and advanced detecting measures.
The utility model lead free tin furnace is a patent product of the company on which it has the independend intellectual property. The unique anti-oxidation device equipped in the furnace has greatly reduced the cost of electronic manufacturing, and has made big contribution to the improvement of the PCB soldering workmanship in the field.
The company believes in an after-sale policy of "high efficiency and low charge", and always tries to satisfy every demand of all customers. We will continue to improve the company in the aspects of honesty integrity, and team work spirit, so as to gradually satisfy the requirements for an international standard enterprise. With the purpose of rewarding the country, honest operation and practical development, we will try our best to make Grandseed a famous international brand.
