Prod Model: |
ice vender |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power Supply: |
AC 380V-50Hz/ AC 220V-60Hz(3phase) |
Material Of Ice Tank: |
Ss304 |
Range Of Bag Ice: |
1kg to 4.5kg |
Edible Or Not: |
Edible |
Refrigerant: |
R404A |
Pressure Of Raw Water: |
>=0.1MPa |
Power: |
3.5kw |
Capacity Of Ice: |
450kg/24h(Ambient Temperature 20° C) |
Size Of The Ice-Cube: |
2.2cm× 2.2cm× 2.2cm |
Capacity Of Ice Mold Space: |
540 Space |
Type: |
Food and Drinks |
Environmental Condition: |
Outdoor |
Payment: |
Coins |
Function: |
Cooling |
Power-off Protection: |
With Power-off Protection |
Failure Self Detection: |
With Failure Self Detection |
Condition: |
New |
Customized: |
Customized |
Charge System: |
IC Card,Note,Cion |
Change: |
Optional |
Product Description

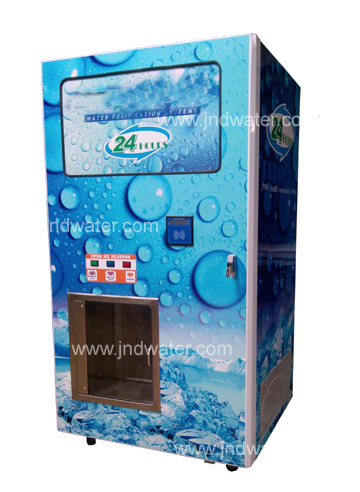

Automatic Ice Vending Machine with RO Water Treatment System
Application
Capacity: 140KG-900KG per day.
Waterproof all-steel cabinest, the front door open dessign, safeety and health durable and easy installation.
The parts of connecting with ice and water, used stainless steel 304, all adopt food grade.
Payment system: Cion or IC card, change available(additional function).
GSM available
Automatic bagging, cut, packing, sealing.
No ice. Not sell.
Add RO water treatment system, ice-cube can be eaten directly.
Main Technical Parameters:
Power Supply | Ac 380V-50Hz/ Ac 220V-60Hz(3phase) |
Power | 3.5KW |
Capacity Of Ice | 450KG/24H(ambient Temperature 20° C) |
Size Of The Ice-Cube | 2.2cm× 2.2cm× 2.2cm |
Capacity Of Ice Mold Space | 540 Space |
Spec Of Compressor | 3P |
Refrigerant | R404a |
Material Of Ice Tank | Stainless Steel 304 |
Water Source | Tap Water ( Storage tank available ) |
Pressure Of Raw Water | ≥ 0.1mpa |
Capacity Of Pure Water | option al |
Recovery | 30% To 50% |
Sales Method | Induction IC Card/Coin |
Dispensing Ice | Bulk Ice/Bag Ice |
Bag Size | 300*550mm |
Bag Thickness | 0.05mm(Single Layer) |
Range Of Bag Ice | 1KG To 4.5KG |
Capacity Of Inside Storage Bag | About 250 Pcs |
Size Of Bulk Ice Tank | W45cm× D35cm× 50cm (Incubator Within The Size) |
Machine Size | W120cm× D105cm× 220cm |
ShenZhen J&D Drinking Water Equipment Co., Ltd. is China's leading manufacturer of bottling equipment and supply the global market with a complete range of bottling equipment and accessories.
J&D Water with fixed assets of over 80 million $ u. s. and a global turnover of over 500million $u. s. employ 1500 staff in the design, manufacture and sales of their range of bottling equipment. The total manufacturing and administration area owned by J&D is over 70, 000 sq meters.
J&D Water are ISO9001 approved and all of the equipment manufactured by J&D is manufactured to the following standards CE, TUV, GS, ETL, UL, SASO, RoHS and CSA.
J&D Water operates a program of continuous improvement in the design and quality of their equipment and where appropriate utilizes advanced filling technologies from Germany, USA and Italy.
J&D Water can supply the following equipment:
* water dispensers, water filtration systems and all associated equipment required for a bottling factory including bottle blowing, labeling and packaging equipment.
*3000-36000BPH mineral water & pure water processing and filling lines;
*3000-36000BPH fruit juice & hot drinks filling lines;
*100-2000BPH 5 or 3 gallon bottling lines;
*2000-36000BPH carbonated drink processing and cold filling lines;
*1000-8000BPH vinegar, wine, oil filling and packing lines;
* A full range of water treatment equipment.
With world leading technologies and a program of continuous improvement, all the products supplied by J&D Water have gained a good reputation from their global customer base. J&D have exported bottling and associated equipment to the USA, UK, Ireland, Canada, Australia, Mexico, Russia, Africa, the Middle East area etc for over 10 years. J&D Water can assist with factory layouts and can also provide a full installation and technical back up service.
