Auto alert Under Vehicle Screening System for Building Entrance
| Price: |
US $ 10-20000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
AT3300 |
| Cars Plate Recongnization Function: |
Support |
| Images Display: |
Color and B/W |
| Under Vehicle Camera: |
CCD Line Scaning |
| Display: |
22'' monitor |
| Waterproof: |
IP68 |
| Alert: |
audio and visual |
| Software: |
English, French, Russian |
| Cameras: |
color |
| Technical Training: |
free |
| Warranty: |
12 months |
| Material: |
Stainless Steel |
| Application: |
Road |
Product Description

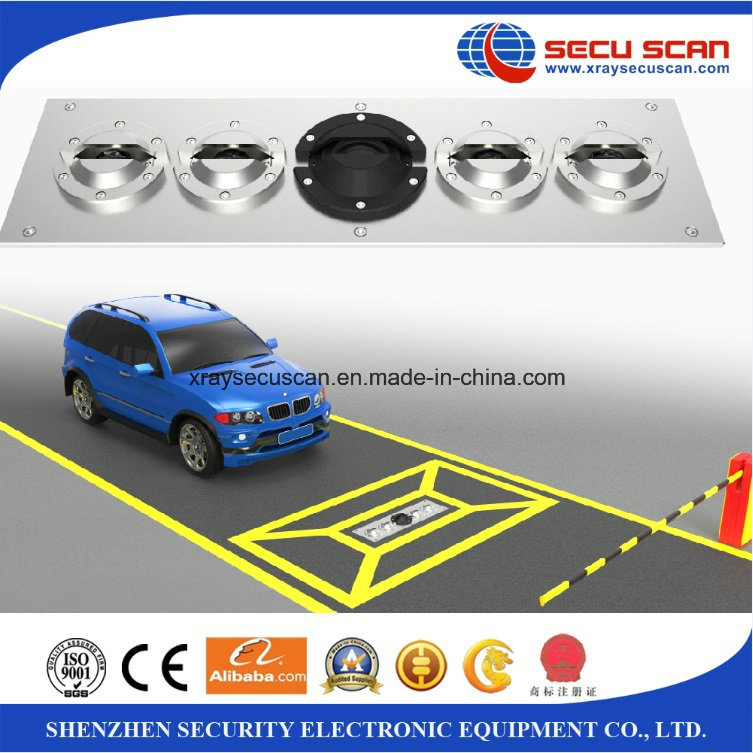

Auto alert Under Vehicle Screening System for Building Entrance The Under Vehicle Surveillance System (UVSS) is specially designed to provide a fast and effective means for security professionals to scrutinize the undercarriage of a vehicle without causing great disturbances to the traffic flow. it can be deployed at crucial entry points of buildings or critical infrastructures.
UV Colour Under Vehicle Surveillance System adopts advanced Line Scan image processing technology to provide a detailed inspection resulting format of high resolution colour real time image of a vehicle's undercarriage in seconds. It works like a scanner or photocopy to produce error free, continuous undercarriage picture.
The system enables security officers to scrutinize any under-vehicle explosive devices, contraband or suspicious items attached to the undercarriage of all types of vehicle such as car, MPV, lorry or container truck. In addition, there are also optional features that can be incorporated into the system to provide clients a total vehicle scanning and management system at the entrance of the premise.
This advanced technology has replaced the conventional method of using mirror search stick to screen the vehicle as it gives a complete undercarriage image on the display screen to make inspection easier and able to store the images as backup/record for future referencing.
General specification:
Embedded Screening Part | Camera: Sensor: | line scans CCD |
| Resolution: | 5000*2048 pixels |
| Power Supply: | 24VDC, 3A |
| Illumination: | LED |
| Power Supply: | 24VDC,150W |
| Size: | 1200mm x 350mm |
| Operating Temperature Range: | -20 degree to +70 degree |
System Host | Brand: | Grantech (SYM76941VGGA) |
| CPU: | Intel(R)Celeron(R)CPU |
| | E3400 2.6GHz 2.59 GHz |
| Memory: | 2G( optional 4G) |
| Graphics: | 512M |
| Hard Disk: | SATA2 Hard Disk 500G |
| Dual LAN | At least one Intel Gigabit |
| USB2.0 | Up to 2 pieces |
| Monitor: | 22 inch LCD,resolution up to 1920*1080 |
| Scene Video Record: | 4 channel, Compression |
| | algorithm of scene video: H264 |
Controller
Input: | 2 channels induction coil |
| Output: | 1 Channel switch type 12VDC |
| Communication port: | RS485, Ethernet(Optional) |
| Operating Temperature: | -10ºC to 55ºC |
