Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Refrigerant: |
R22 |
Type: |
Window Mounted Air Conditioners |
Usage: |
Room |
Indoor Machine Noise: |
36-49dB |
Cooling/Heating: |
Cooling/Heating |
Certification: |
UR |
China Energy Efficiency Standard: |
Level 1 |
Capacity: |
9000-12000 BTU |
Power Source: |
Electrical |
Power Type: |
AC |
Condition: |
New |
Product Description

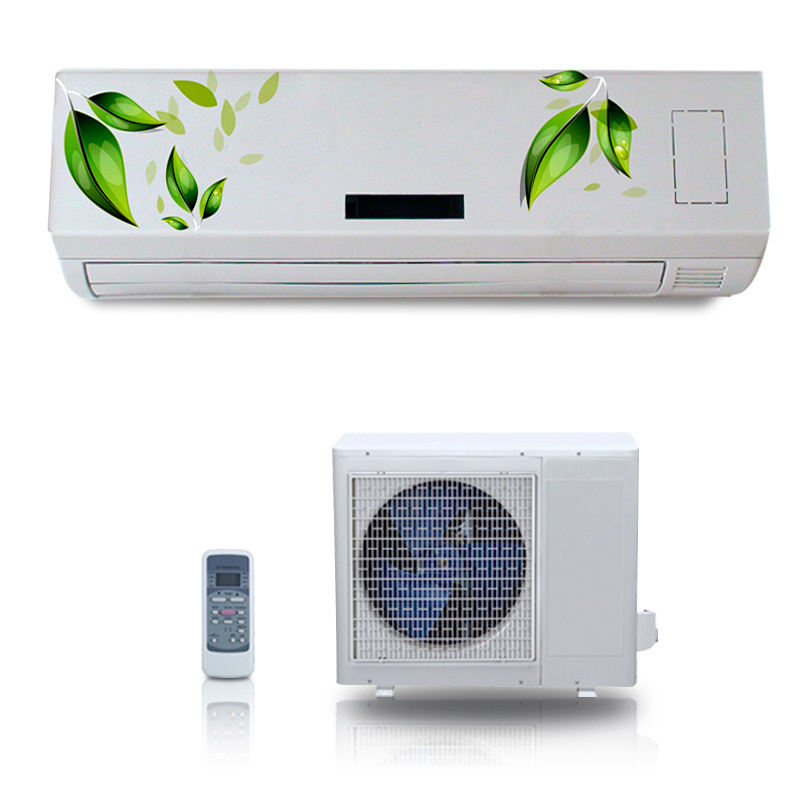

Auto Air Conditioning Units 9000Btu Air Conditioner With Inverter
Features
1) Intelligent control and display technology
2) Wide voltage design
3) Dual air guide plate technology
4) Memory functions
5) Sleeping mode automatic control
6) Audio prompt diagnosis on failures
7) Timed switch-on and switch-off
8) Cooling capacity: 9000btu
9) Heating capacity: 10000btu
10) Voltage: 220V/50Hz, 240V/60Hz
Specification
Model | KF-23GW/Ec | KFR-23GW/Ec | KF-25GW/Ec | KFR-25GW/Ec | KF-35GW/Ac | KFR-35GW/Ac | KF-51GW/Bc | KFR-51GW/Bc | KF-61GW/c | KFR-61GW/c | KF-66W/c | KFR-66GW/c |
Power supply | Ph-V-Hz | 220-240/50 | 220-240/50 | 220-240/50 | 220-240/50 | 220-240/50 | 220-240/50 | 220-240/50 | 220-240/50 | 220-240/50 | 220-240/50 | 220-240/50 | 220-240/50 |
Cooling | Capacity | W | 2314/2300 | 2235/2300 | 2535/2500 | 2403/2500 | 3329/3500 | 3295/3500 | 5012/5100 | 4687/5100 | 6035/6100 | 5870/6100 | 6329/6600 | 6187/6600 |
Input | W | 851/840 | 843/825 | 938/920 | 980/940 | 1275/1200 | 1242/1220 | 1860/1895 | 1939/1895 | 2134/2090 | 2057/2190 | 2459/2390 | 2426/2300 |
Rated current | A | 3.8/4.2 | 3.8/3.7 | 4.2/4.1 | 4.4/4.3 | 6.0/5.7 | 5.5/5.4 | 8.8/8.9 | 9.1/8.9 | 9.6/9.4 | 9.1/9.5 | 11.6/11.3 | 10.8/10.0 |
EER | w/w. | 2.72/2.73 | 2.65/2.79 | 2.70/2.72 | 2.45/2.67 | 2.60/2.92 | 2.63/2.87 | 2.70/2.69 | 2.42/2.69 | 2.83/2.92 | 2.85/2.76 | 2.57/2.76 | 2.55/2.87 |
Heating | Capacity | |
| 2479/2600 |
| 2552/2750 |
| 3708/3700 |
| 5428/5610 |
| 6301/6600 |
| 7118/7200 |
Input | |
| 799/840 |
| 905/900 |
| 1253/1150 |
| 1886/2030 |
| 2144/2090 |
| 2516/2400 |
Rated current | |
| 3.5/3.7 |
| 4.0/4.0 |
| 5.5/5.1 |
| 8.9/9.5 |
| 9.6/9.3 |
| 11.2/10.5 |
COP | |
| 3.10/3.10 |
| 2.82/3.05 |
| 2.96/3.22 |
| 2.88/2.77 |
|
|
| 2.83/3.00 |
Dehumidifier | Kg/h | 0.623 | 0.653 | 1.027 | 1.059 | 1.304 | 1.269 | 1.753 | 1.741 | 2.154 | 2.065 | 2.485 | 2.419 |
| Indoor air flow(Hi/Mi/Lo) | m3/h | 371/400 | 390/400 | 395/400 | 384.5/450 | 466/600 | 498/600 | 744/680 | 686/680 | 900/750 | 960/750 | 913/900 | 919/900 |
Indoor noise level (Hi/Mi/Lo) | dB(A) | 33.5/39 | 38/39 | 38.5/41 | 38.5/41 | 41.5/42 | 41.8/42 | 44.6/45 | 43.9/45 | 48.4/47 | 48.2/47 | 47.9/47 | 48.1/47 |
Dimension (W*H*D) | mm | 747.2× 250.5× 197 | 747.2× 250.5× 197 | 747.2× 250.5× 197 | 747.2× 250.5× 197 | 795× 270× 200 | 795× 270× 200 | 940× 270× 180 | 940× 270× 180 | 1000× 320× 200 | 1000× 320× 200 | 1000× 320× 200 | 1000× 320× 200 |
Packing (W*H*D) | mm | 820× 325× 255 | 820× 325× 255 | 820× 325× 255 | 820× 325× 255 | 860× 350× 260 | 860× 350× 260 | 1005× 335× 260 | 1005× 335× 260 | 1085× 380× 285 | 1085× 380× 285 | 1085× 380× 285 | 1085× 380× 285 |
Net/Gross weight | Kg | 8.5/10 | 8.5/10 | 8.5/10 | 8.5/10 | 10/10.5 | 10/10.5 | 12.3/14 | 12.3/14 | 15/18 | 15/18 | 15/18 | 15/18 |
| Outdoor noise level | dB(A) | 49.3/55 | 49.1/49 | 49.2/55 | 49.2/55 | 53.2/52 | 54/52 | 53.2/54 | 53.5/54 | 58/56 | 55.8/56 | 55.9/56 | 56.6/56 |
Dimension(W*H*D) | mm | 700 × 256 × 500 | 700 × 256 × 500 | 700 × 256 × 500 | 700 × 256 × 500 | 795× 255× 510 | 795× 255× 510 | 795× 255× 510 | 795× 255× 510 | 850× 295× 605 | 850× 295× 605 | 875× 315× 680 | 875× 315× 680 |
Packing (W*H*D) | mm | 825× 320× 535 | 825× 320× 535 | 825× 320× 535 | 825× 320× 535 | 920× 330× 575 | 920× 330× 575 | 920× 330× 575 | 920× 330× 575 | 995× 410× 680 | 995× 410× 680 | 990× 410× 775 | 990× 410× 775 |
Net/Gross weight | Kg | 30/32 | 30/32 | 30/32 | 30/32 | 31/33 | 31/33 | 35/37 | 35/37 | 44/50 | 44/50 | 58/62 | 58/62 |
Refrigerant type | g | R22/530 | R22/610 | R22/510 | R22/680 | R22/710 | R22/980 | R22/1050 | R22/1200 | R22/1500 | R22/1500 | R22/1150 | R22/1900 |
Design pressure | MPa | 2.45/0.7 | 2.45/0.7 | 2.45/0.7 | 2.45/0.7 | 2.45/0.7 | 2.45/0.7 | 2.7/0.7 | 2.7/0.7 | 2.7/0.7 | 2.7/0.7 | 2.7/0.7 | 2.7/0.7 |
Qty' per 20' /40' /40' HQ | set | 305 | 305 | 305 | 305 | 270 | 270 | 250 | 250 | 165 | 165 | 145 | 145 |
Refrigerant piping | mm | 6.35/9.52 /3500 | 6.35/9.52 /3500 | 6.35/9.52 /3500 | 6.35/9.52 /3500 | 6.35/12.7 /3500 | 6.35/12.7 /3500 | 6.35/12.7 /4000 | 6.35/12.7 /4000 | 9.52/16 /5000 | 9.52/16 /5000 | 9.52/16 /5000 | 9.52/16 /5000 |
