| Prod Model: |
VPA35M |
| Length Of Cable: |
35 Meters |
| Net Weight: |
1kgs/PC |
| Type: |
Coaxial |
| Certification: |
CE |
| Application: |
CCTV Cameras |
| Color: |
Black or White Optional |
| Species: |
Video+Power+Audio Cable |
| Connector: |
BNC, DC, RCA Connectors |
| Brand: |
Chinasky |
Product Description

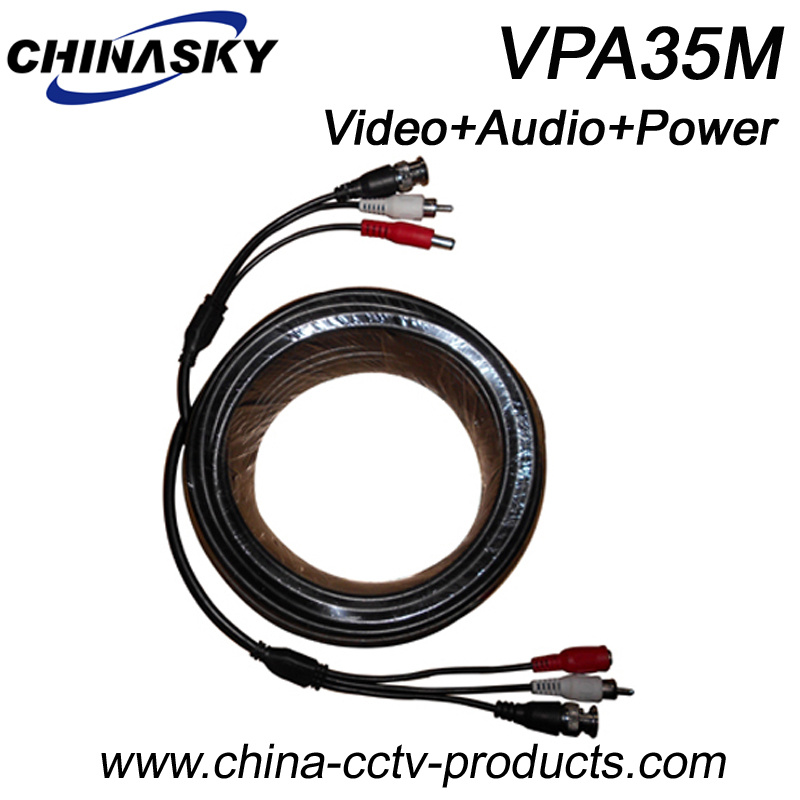

Audio Video CCTV Camera Cable with DC Connector (VPA35M)Description:
The Pre-made Siamese CCTV Cable/35M model VP35M is a perfect way to supply audio, video and power across one cable.
These are pre-made Siamese cables for CCTV camera installations. These plug-n-play Siamese cables run audio, video and power to CCTV security cameras. This video cable is pre-terminated with a male 2.1mm power plugs on one end and a female 2.1mm plug on the other. The video cable is terminated with male BNC connectors on both ends. They are compatible with Analog, HD-AHD, HD-TVI, and HD-SDI cameras. And the audio cable with RCA connectors, they can pick up the audio for high quality.
These pre-made cables will simplify your surveillance system installation by eliminating the need to cut cables and crimp the ends on your own. If you need to extend the distance of your cable, you can connect two or more pre-made cables together by using a BNC double female connector.
Because the power portion of the cable is male on one end and female on the other, there is no additional connector needed to connect the power portion of two cables together.
Length of cable: 35m (5m, 10m, 15m, 20m, 25m, 30m, 40m, 45m, 50m, 100m also available)
Structure:
| Type | Coaxial cable with AL foil + power cable and audio cable
+ AL foil+4.5mmPVC |
| Video part | Inner conductor--7*0.15mm(copper);
Shielding--Braided 48*0.12mm (CCA) |
| Power part | 11*0.15mm (copper) |
| Audio part | 7*0.12mm (copper) |
| DC Plug | 5.5*2.1mm |
| Plugs | 2BNC Connectors+2RCA Connectors+1DC Male plug+1DC Female plug |
| PVC | Black or White |
| OD | 4.5mm, all in one cable |
Applications:
1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite
