| Prod Model: |
MA2400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ma2400 |
| Channel: |
2 |
| Rated Power: |
600W |
| Frequency Response: |
+0.1db 20Hz-20kHz |
| Power Supply: |
220V |
| Signal/Noise: |
105db |
| Fuse: |
T10A |
| Damping Factor: |
450: 01: 00 |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Tube Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Output Number: |
8 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
Product Description

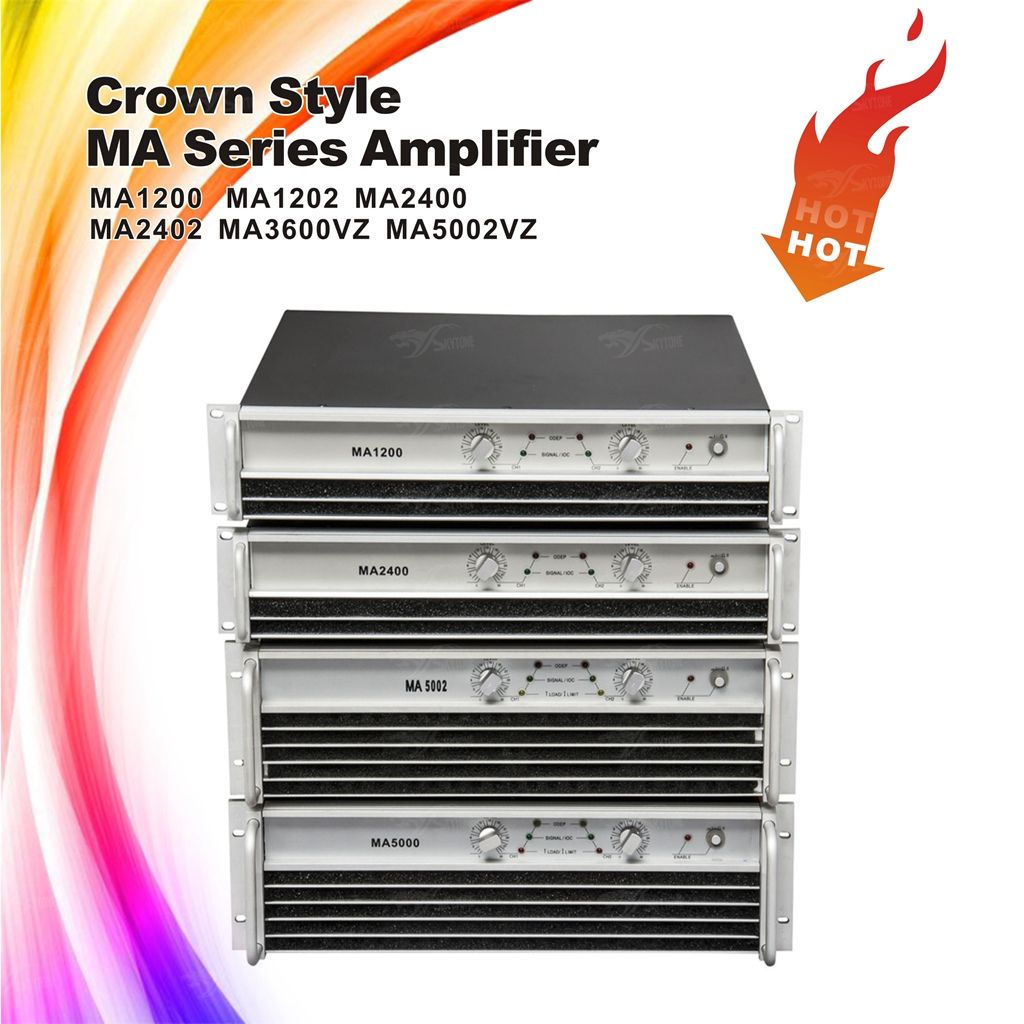

Crown Ma2400 Style Power Amplifier
Power amplifier
Amplfier audio
Professional amplifier
2 channels amplifier system
CROWN MA Series Power Amplifier-----Features:
--Steel chassis with durable black finish
--Aluminum front panel with Lexan overlay
--Two balanced -inch phone jacks on the back panel and two balanced three-pin female XLR connectors
--Two sets of color-coded 5-way binding posts Output Connectors
--Ultra-Low Distortion:
--VZ Power Supply Technology
--On-Board Compressors
--Loudspeaker Offset Integration
--ODEP(R) Protection
--Distortion Indicator
--Selectable Mono Modes
--Unique Dual-Level Design
--Selectable Sensitivities
--THX Approved
Other models of CROWN style MA series amplifier:
1. MA1200 audio amplifier
2. MA1202 pro amplifier
3. MA2402 speaker amplifier
4. MA3600VZ amplifier
5. MA5002VZ power amplifier
Choose according to your requirements, if you don't know which one choose, tell me your demand, I'll recommend you the most suitable, model.
Trust us, choose the professional products and serivce.
Any question about MA2400 power amplifier/ speaker amplifier, welcome for details, we are glad to help you.
Real photos:
| Crown style professional power amplifier |
| Model | MA1202 | MA2400 | MA3600 | MA5002 |
| Output 8ohms 1KHz0.1% THD Stereo Model: | 2x350W | 2x600W | 2x850W | 2x1100W |
| Output 4ohms 1KHz0.2% THD Stereo Model: | 2x500W | 2x850W | 2x1180W | 2x1650W |
| Output 2ohms 1KHz0.3% THD Stereo Model: | 2x700W | 2x1250W | 2x1650W | 2x2300W |
| Output 8ohms 1KHz0.4% THD bridge Model: | 1000W | 1700W | 2200W | 3000W |
| Output 4ohms 1KHz0.5% THD bridge Model: | 1500W | 2500W | 3200W | 4500W |
| Signal/noise: | 103dB | 105dB | 105dB | 106dB |
| Slew Rate: | 60v/us | 60v/us | 80v/us | 80v/s |
| Damping factor: | 400: 01: 00 | 450: 01: 00 | 500: 01: 00 | 550: 01: 00 |
| Fuse: | T8A | T10A | T12A | T15A |
| Power Supply: | 220V 50/60HZ |
| Input Sensitivity: | 0.775V. 1.0V, 1.55V |
| Frequency Response @ 1 Watt into 8ohms: | +0.1dB 20HZ-20KHZ |
| THD+N: | ≤ 0.01% Rated Power @ 8Ω 1KHZ |
| IMD: | ≤ 0.01% Rated Power @ 8Ω |
| Input Impedance: | 10K/20K ohurs, unblanced or blanced |
| Crosstalk at Rated Output 8ohms 1KHZ" | ≤ -70dB |
| Imput CMRR: | ≤ -75dB |
| Indicators: | Signal, Protect, Clip, Limited |
| New Weight: | 16.3kg | 18.45kg | 19.45kg | 32kg |
| Dimensions(mm): | 483Wx480Dx88H | 483Wx480Dx133H |
