| Prod Model: |
VCS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Zsound |
| Model Number: |
Vcs |
| Certificate: |
CE, RoHS |
| Power Rating: |
1200watt |
| Nominal Impedance: |
8ohm |
| Maximum Spl: |
133dB(Continuous)139dB (Peak) |
| Dimension: |
605X700X700mm |
| Service: |
OEM, ODM |
| Certification: |
RoHS |
Product Description

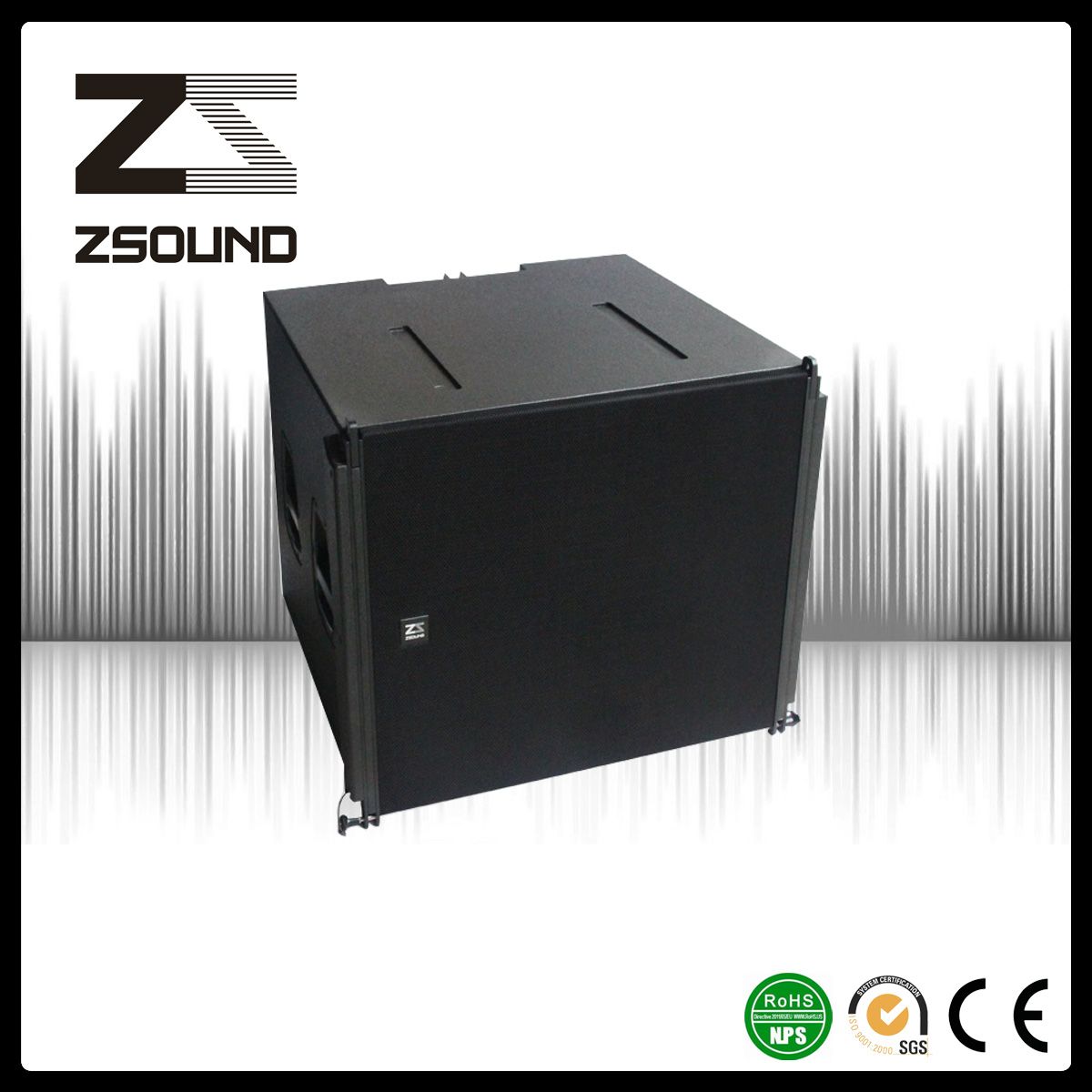

Product DescriptionVCS is a double 15 inch vented stereo, applied for various flow of language and music sound boost applications, also can be used in all kinds of fixed installations. And VCM line array full frequency match box can be extended low frequency response of the system.
VCS low frequency sound using the new bass unit, without any airflow noises while working in ultra-high power, and use small volume, vented, horn preposition design, Small volume greatly reduces the group delay of low frequency band, make sense of speed of the low frequency is able to guarantee; Low-frequency unit prepositive hore structure to reinforce low-frequency strength greatly : And large areas of inverting tube is increased the ultra-low frequency output, and reduce the frequency of nonlinear distortion, so that the speed of the low frequency, strength and thickness can have it all.
VCS is consist of two 15 "of low-frequency paper cone and inverter cabinet, on both sides of the inverter hole to optimize structure of low frequency response, and strengthen the body.
and constructed by 18mm birch multi-plywood, the surface is finished with black textured water paint.VCS has 4 hand cups on the sides, make it convenient to handle. Riggings on both sides can be connected to the VCM directly. After wiring board have 2 loop quad WP4 socket convenient to connect, and the speaker is covered with hexagon grill, with black sponge to protect the drivers.
Features:
Soft and low frequency elastic
Long stroke high power LF driver
Small volume, vented, horn preposition design
Applications:
Large-scale touring performance.
Stadium or gymnasium
| TECHNICAL SPECIFICATION |
| Frequency Response: | 38Hz-200Hz(±4dB) 25Hz-320Hz(-10dB) |
| Nominal Coverage: | Omnidirectional |
| Sensitivity (@1w/1m): | 102dB SPL (40-200H) SPL |
| Power Rating (AES): | 1200W |
| Nominal Impedance: | 8Ohm |
| Maximum SPL: | 133dB(continuous) 139dB(peak) |
| Drivers: | 2*15"(75mm voice coil)woofer |
| |
| PHYSICAL DATA |
| Dimension (H*W*D): | 605*700*700mm |
| Weights: | 65kg |
| Connectors: | 2*WP4 connectors |
| Speaker Cables: | 1-2+ |
| Materials: | 18mm birch multi-plywood splints |
| Finish: | Black water envirimental elastically paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging: | 0 degree adjustable |
