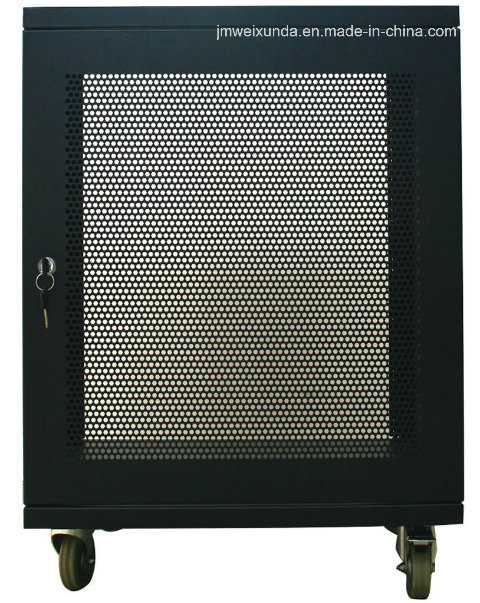

Audio Rack with 3inch Caster (WM508)
| Price: |
US $ 50/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
200/Piece |
| Pay Type: |
T/T |
| Prod Model: |
WM508 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rack Type: |
Audio Rack |
| Installation Difficulty Degree: |
Easy |
| Suitable For: |
Standard Network Equipment, Home Theatre |
| Lable On The Rack: |
"U" Number Printed on Column |
| Movement: |
4 PCS of 3inch Caster |
| Optional Component: |
Glass Door, Perforated Door, Cooling Fan, etc |
| Usage: |
Video Surveillance Systems |
| Installation: |
Vertical |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Audio Rack |
Product Description
Features:
1. Solid assbmely structure, maxium load capacity is 200 kgs.
2. Quick assembly with high quality 3inch caster.
3. Suitable for 19inch EIA stardard equipment.
4. Perforated door and tempered glass door are optional accessories.
5. Basic component does not include cooling fan, but user could add 1 - 2 fans on top.
6. All column is printed with "U" number.
Specifications:
| Model | Useful Area | Height | Width | Depth |
| 1 | WM508-12U | 12U = 533.40 mm | 697 mm | 508 mm | 460 mm |
| 2 | WM508-16U | 16U = 711.20 mm | 874 mm | 508 mm | 460 mm |
| 3 | WM508-21U | 21U = 933.45 mm | 1097 mm | 508 mm | 460 mm |
| 4 | WM508-28U | 28U = 1244.60 mm | 1408 mm | 508 mm | 460 mm |
| 5 | WM508-36U | 36U = 1600.20 mm | 1764 mm | 508 mm | 460 mm |
| 6 | WM508-42U | 42U = 1866.90 mm | 2030 mm | 508 mm | 460 mm |
Packing and Basic component
1. Basic component
| Component | Q'ty |
| 1 | Audio rack top | 1 pcs |
| 2 | Audio rack bottom with caster | 1 pcs |
| 3 | Main frame column | 4 pcs |
| 4 | Side panel | 2 pcs |
| 5 | Transom ( 36U and 42U only ) | 2 pcs |
2. Packing:
1) Packing materials: Carton, polystyrene foam, plastic film.
2) Packing q'ty: 2 cartons for 1 set.
Carton for 12U / 16U / 21U / 28U rack:| 1 | Carton #1 | Rack column x 4 pcs, Side panel x 2 pcs |
| 2 | Carton #2 | Top x 1 pcs, Bottom with caster x 1 pcs |
Carton for 36U / 42U rack:| 1 | Carton #1 | Rack column x 4 pcs, transom x 2 pcs |
| 2 | Carton #2 | Top x 1 pcs, Bottom with caster x 1 pcs |
| 3 | Carton #3 | Side panel x 4 pcs ( 2 pcs for each side ) |
Surface finish:
Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity powder coating.
Standards:
Comply with ANSI/EIA, RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard and ETSI standard.
