| Prod Model: |
M12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Origin Of Place: |
China(Mainland) |
| Brand Name: |
Zsound |
| Certificate: |
Ce, RoHS |
| Power Rating: |
400W |
| Nominal Impedance: |
8ohm |
| Maximum Spl: |
124dB(Continous) 130dB(Peak) |
| Port: |
Guangzhou/Shenzhen |
| Dimension: |
600X366X333mm |
| Service: |
OEM, ODM |
| Weight: |
22kg |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
RoHS |
Product Description

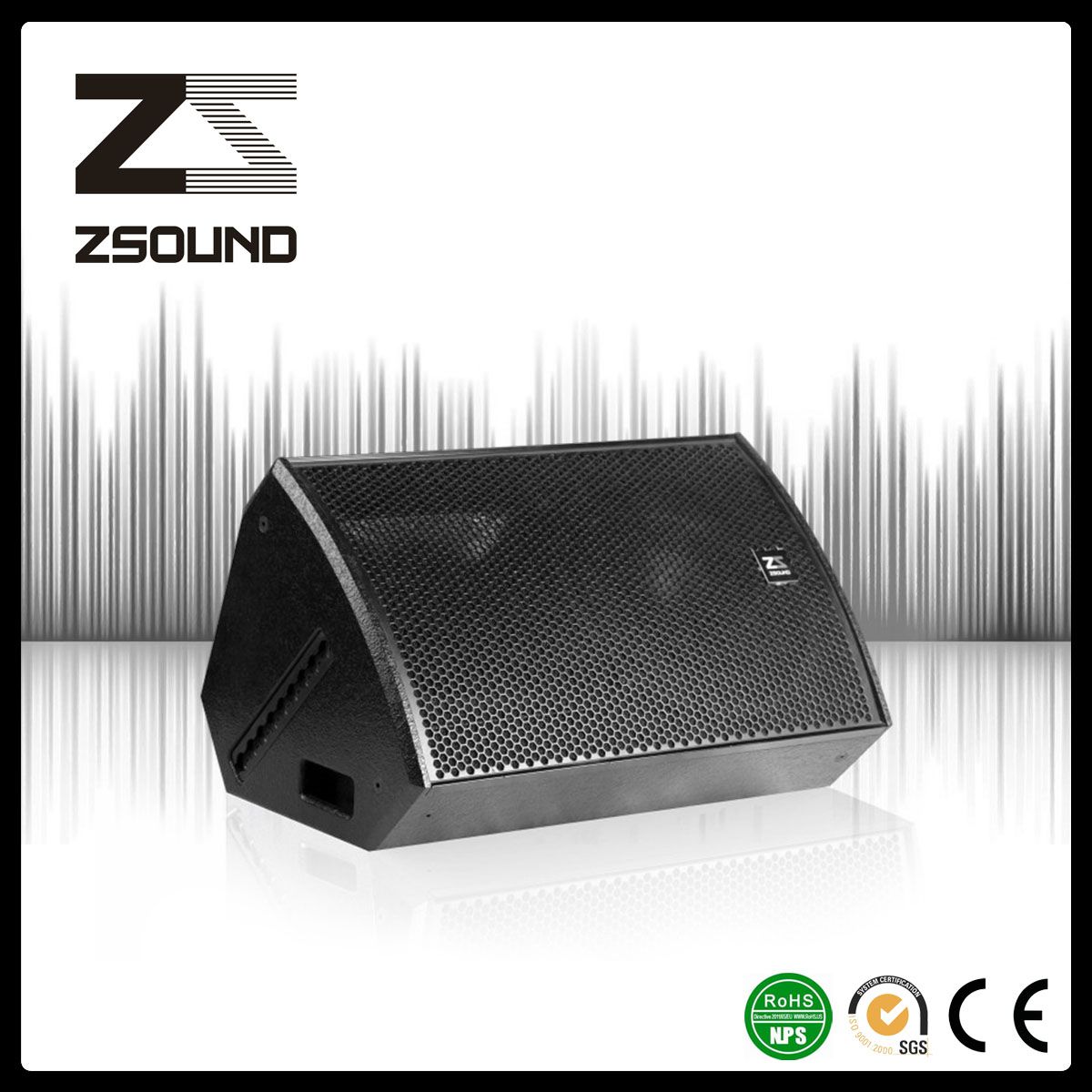

audio loudspeakers professionalM12 is a bi-amp vented enclosure, mainly designed as a stage monitor speaker for tour performance, as well as various kinds of fixed installations.
The enclosure consists of a 12″ LF driver and a 75mm composite aluminum diaphragm HF compression driver. The voice coil of LF driver is 75mm, and the speakerframe is made of aluminum. The coverage of the HF horn is 60°--40°. The rotatable horn allows the near-ceiling mounting and aiming easy in the venues with restricted height. M12 provides 4 pcs flying tracks used for fixed installations or hanging and angle modulation in touring performance. The enclosure is configured with a 35mm poles and speaker stands at the bottom.
Feature:
Asymmetrical rotatable horn
Large-size neodymium HF driver(75mm voice coil)
Customized high-transient response woofer(7mm voice coil)
Applications:
Touring performance
Stage Monitor
Theater,music hall
| TECHNICAL SPECIFICATION |
| Frequency Response: | 65Hz-16KHz(±3dB) 55Hz-18KHz(-10dB) |
| Nominal Coverage: | 60°(H)40°(V)Constant directivity |
| Sensitivity (@1w/1m): | 98dB |
| Power Rating (AES): | 400W |
| Nominal Impedance: | 8Ohm |
| Maximum SPL: | 124dB (continuous)130dB (peak) |
| Drivers: | LF 1*12"(75mm voice coil)woofer; HF 1*3"neodymium compression driver |
| |
| PHYSICAL DATA |
| Dimension (H*W*D): | 600*366*333mm |
| Weight: | 22kg |
| Connectors: | 2*NL4MP Neutrik Speakon connectors |
| Speaker Cables: | 1+1- |
| Materials: | 18mm,24mm birch multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated foam |
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock.
10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accpeted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
Our Advantages:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.

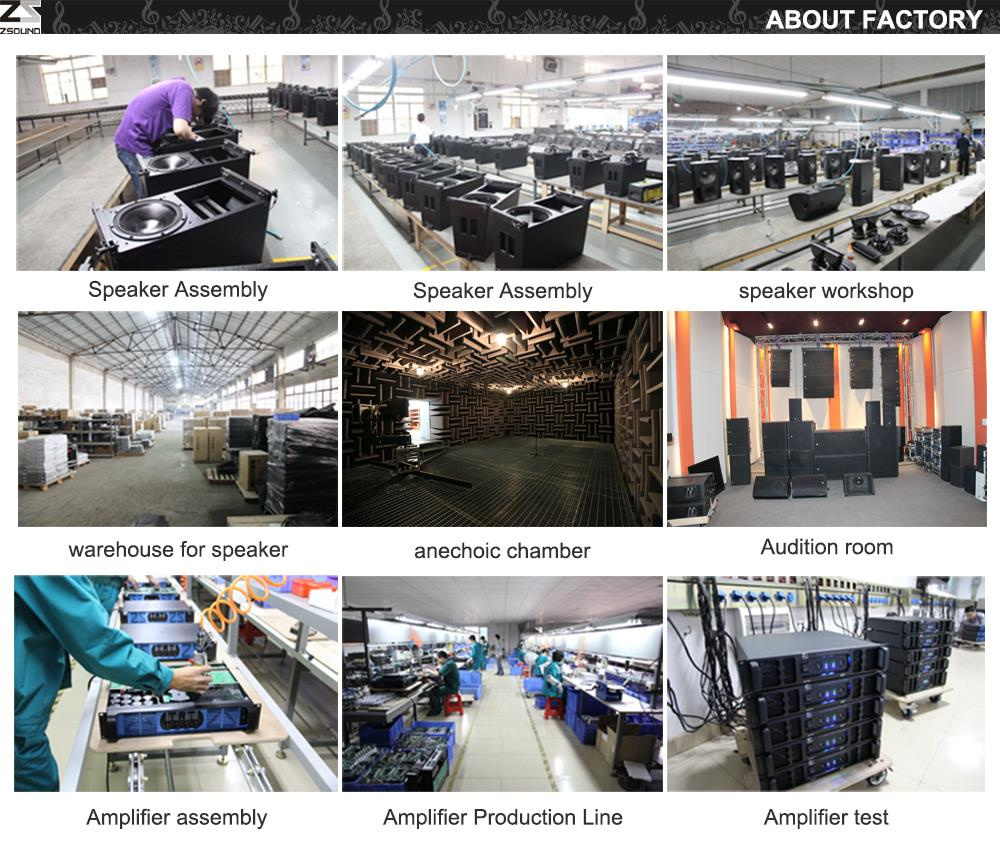

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.
Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.
Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.
During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.
What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance
In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.
After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.
Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
