| Prod Model: |
TP-WAVG08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shortest Latency: |
< 0.5ms |
| Frequency Response: |
20 -20kHz |
| Brand Name: |
Soyo |
| Model Number: |
Tp-Wavg08 |
| Use: |
Attractions, Exibition, Conference |
| Channels: |
Max 30 |
| Frequency: |
2.400-2.483GHz |
| Type: |
Active |
| Sound Quality: |
Anti-Interference |
| Special Feature: |
Wireless, Portable |
| PC Interface: |
2.4GHz |
| Screen: |
LCD |
| SNR: |
95dB |
| Recording Modes: |
Wav |
| Operating System: |
Embeded |
| Memory Size: |
<1GB |
| Style: |
Card |
| Function: |
Audio and Video Guide |
Product Description

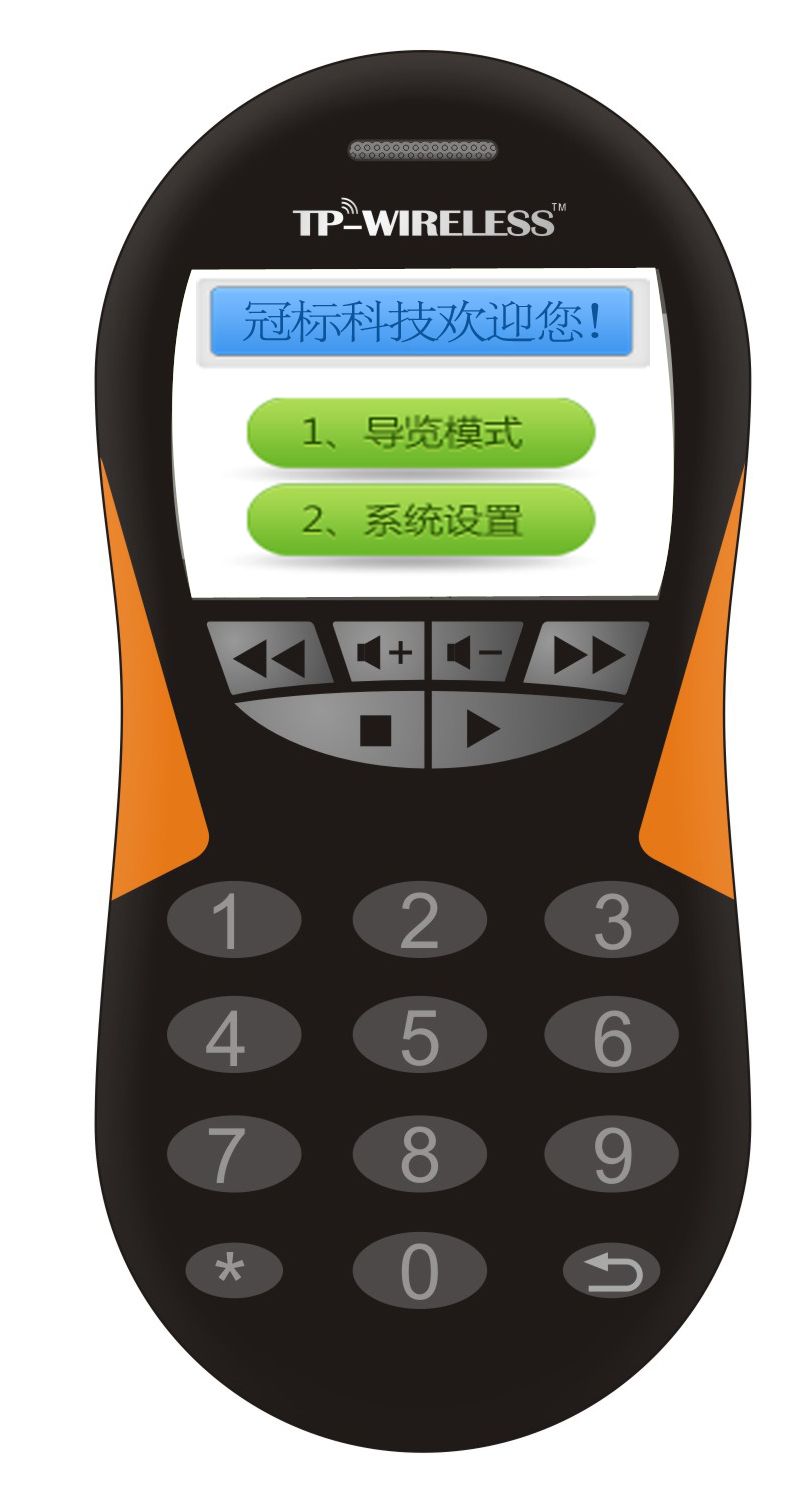

The Eighth Generation wireless Cartoon Audio guide system
Application
Museum, art gallery, library, enterprise exhibition hall, international exhibition and the place of guide for tour
Museum, art gallery, library, enterprise exhibition hall, international exhibition and the place of guide for tour
The introduction of product or publicity, service occasion
Visit of factory for high noise pollution
Team explanation of tour scenery spot for tour group
System characteristic:
1, 2.4G wireless transfer technique, avoiding cellphone, WiFi SI, transmission distance of 80 meters.
2, Small appearance, comfortable to adorn with light weight.
3, Max supporting 30 channels and 30 languages, Isolation interference. And channels can be switched, listeners can select languages with switching channels.
4, Multi-languages operation system, simple operation, operation reminding shows Chinese, English, Being satisfied with multi-users.
5, Visitors may control the content by themselves, adjust visiting route and time
6, Requiring to have auto dormant function, energy saving and environment protection
7, Now it has covered the original labor explanation mode, which is the product of priority for the public of tour spot and museum.
8, With professional charging disinfection cabinet, booking both lithium battery charging and common dry battery to use. If using lithium battery, it can be chose to use charger and charging disinfection cabinet, charging disinfection cabinet may charge multi-explanation device one time, safty and health also enhancing the rate of charging.
9, Supplying SOYO monopoly algorithm to make sure that costomers`privacy are not violated.
10, 4.3 inch 16: 9 large LCD display, QVGA image quality. Liquid show the detail system and play content message, and have the screen off function, more energy saving and environment protection.
Specification parameter
DIALAN: Chinese/English(may book multi-languages)
VOL control: 32 grade number volume adjusting
Storage capacity: Support TF card
Frequency range: Support 30, channels can be switched and support auto and manual search.
Input connector: MINI USB
Adjustment mode: GFSK
Receiving scope and distance: 3600, 0.3-500m
Duration working period: > 8 hours
|
NO. |
Description |
Transmitter module |
Receiver module |
|
1 |
Work voltage |
3.6- 6V DC |
2.5 - 3.6V DC |
|
2 |
Work electric current |
Max 120mA |
Max 35mA |
|
3 |
Work temperature |
-15 - +65 |
-15 - +65 |
|
4 |
Frequency response |
2400 - 2483 MHz |
2400 - 2483 MHz |
|
5 |
Modulation |
GFSK |
|
|
6 |
Baud rate |
2M bps |
2M bps |
|
7 |
Channel space |
4MHz |
4MHz |
|
8 |
Stabilization of frequency |
+/-156KHz |
+/-156KHz |
|
9 |
Work frequency range |
2400 - 2483 MHz |
2400 - 2483 MHz |
|
10 |
Work channel |
20 CH |
20 CH |
|
11 |
Channel space of module |
4MHz |
4MHz |
|
12 |
Output power |
0-20 dBm |
|
|
13 |
Receiver sensitivity |
|
90dBm |
|
14 |
Input power |
Max 1.0Vrms |
|
|
15 |
Input impedance |
10k Ohm |
|
|
16 |
Input mode |
Two input modes:
1. Microphone
2. Stereo audio |
|
|
17 |
Stereo output 1 |
|
30mW RL = 32Ω |
|
18 |
Stereo output 2 |
|
50mW RL = 16Ω |
|
19 |
Output impedance |
|
1k Ohm |
|
20 |
RF Distance |
100-150 meters in the open area under 20dBm |
|
21 |
Output input gain ratio |
1:1 |
|
22 |
Frequency response |
20 - 20000Hz ( +/1dB ) |
|
23 |
The latency time |
< 0.5 ms |
|
24 |
Sampling ratio |
64kHz@16 bit*2 |
|
25 |
SNR |
95 dB |
|
26 |
Distortion |
0.8%@1kHz |
|
27 |
Dynamic range |
90dB |
|
28 |
Separation between the left and right track |
70 dB |
