| Prod Model: |
266xl |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Compressor/Gate |
| Input Impedance: |
40kw Balanced/Unbalanced |
| Max Input: |
+22dbu |
| Sidechain Impedance: |
>10kw |
| Compressor Noise: |
<-93dbu Unweighted |
| Expander/Gate Max Depth: |
>60dB |
| Expander/Gate Attack Time: |
<100 |
| Noise: |
<95dB |
| Application: |
Home |
| Certification: |
CE |
Product Description

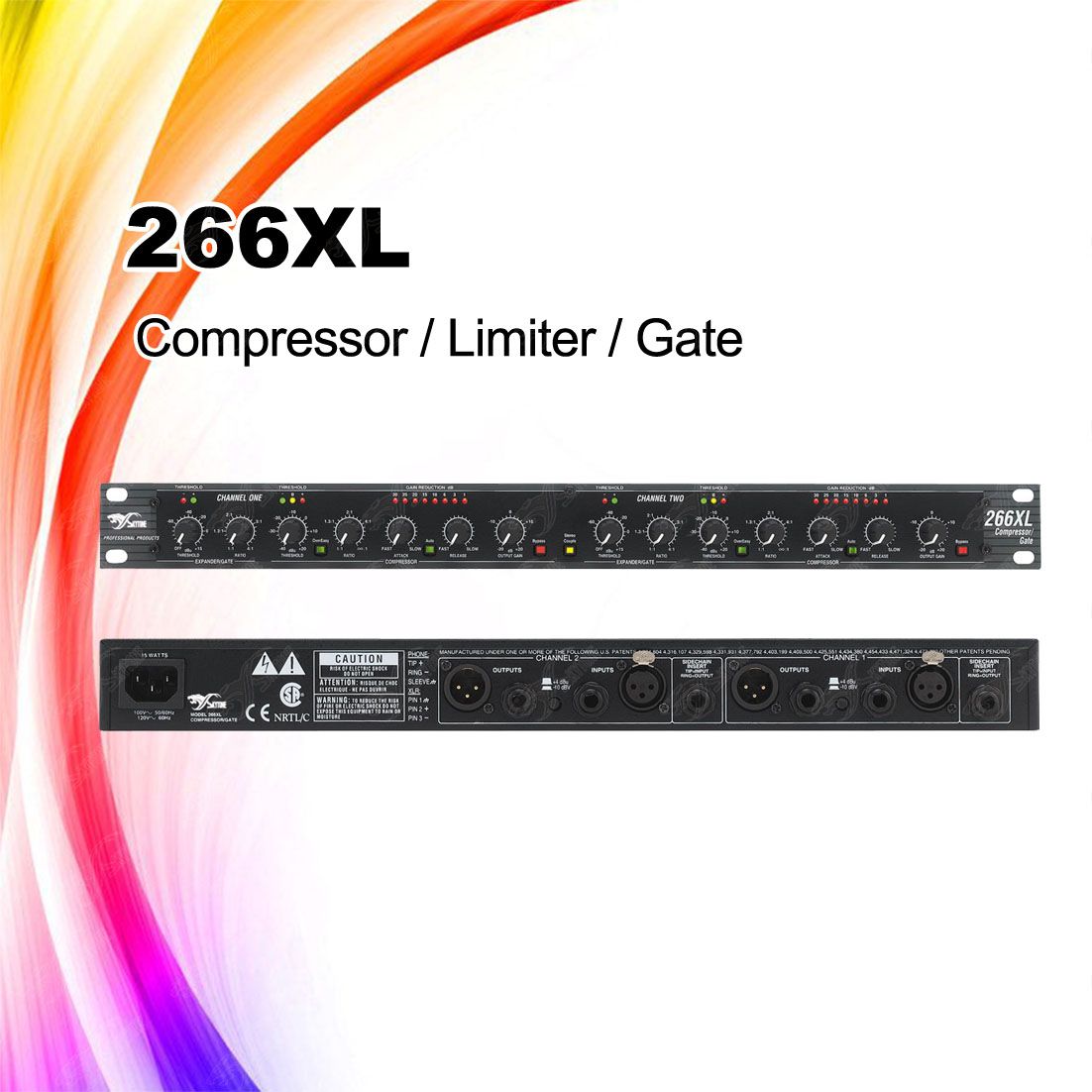

Dbx 266xl style compressor/limiter
Audio compressor/limiter
The 266xl processor is the result of an intensive engineering and product development effort aimed at taking advantage of the latest and best advances in manufacturing technology to deliver true dbx audio performance and reliability to our customers at the lowest possible cost.The 266xl puts a completely new level of compressor/gate performance within everyone's reach.
Features:
--goof proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes
--new gate timing algorithms ensure the smoothest release characteristics
--program-adaptive expander/gates
--great sounding dynamics control for any type of program material
--separate precision led displays for gain reduction, compression threshold and gate threshold allow quick, --accurate setup
--stereo or dual-mode operation
--balanced inputs and outputs on 1/4" trs and xlr
--side chain insert
--classic dbx "auto" mode
| 266xl specifications: |
| Input connectors | 1/4" trs and xlr, floating balanced;Xlr:Pin 2 hot phone:Tip hot hi |
| Input impedance | 40kω balanced/unbalanced |
| Max input | +22dbu |
| Cmrr | >40db (any frequency) |
| Sidechain | 1/4" trs phone, normalled:Ring = output (send);Tip = input (return) |
| Sidechain impedance | >10kω |
| Sidechain output impedance | ≤2kω |
| Sidechain max input level | +21dbu |
| Output connectors | 1/4" trs phone and xlr floating balanced, xlr:Pin 2 and tip hi |
| Output impedance | 200ω balanced, 100ω unbalanced |
| Max output | +21dbu into 600ω |
| Frequency response | Flat:20hz-20khz, +0, -0.5db |
| Noise | <-93dbu unweighted |
| Thd+noise | Typically <0.2%;Any amount of compression @1khz |
| Imd | Typically <0.2% smpte |
| Compressor threshold range | -40dbu to +20dbu |
| Compressor threshold characteristic | Selectable overeasy® or hard knee |
| Compressor ratio | 1:1 to infinity:1 |
| Compressor attack time | Scalable program-dependent |
| Compressor release time | Scalable program-dependent |
| Expander/gate threshold range | -60 to +10db |
| Expander/gate ratio | 1:1 to 4:1 |
| Expander/gate max depth | >60db |
| Expander/gate attack time | <100µs |
| Expander/gate release time | Adjustable, 30ms to 3sec (to 30db attenuation) |
| Limiter threshold range | 0dbu to +20dbu |
| Gain adjustment range | Variable;-20db to +20db |
| Interchannel crosstalk | <-93db @ 1khz |
| Dynamic range | >114 db, unweighted |
| Stereo coupling | True rms power summing™ |
| Power consumption | 15 watts maximum |
| Dimensions | 1.75" x 19" x 6.75" (4.45 cm x 48.2 cm x 17.15 cm) |
| Unit weight | 5 lbs (2.3 kg) |
| Shipping weight | 7 lbs (3.2 kg) |
| Reference | 0dbu = 0.775vrms |
