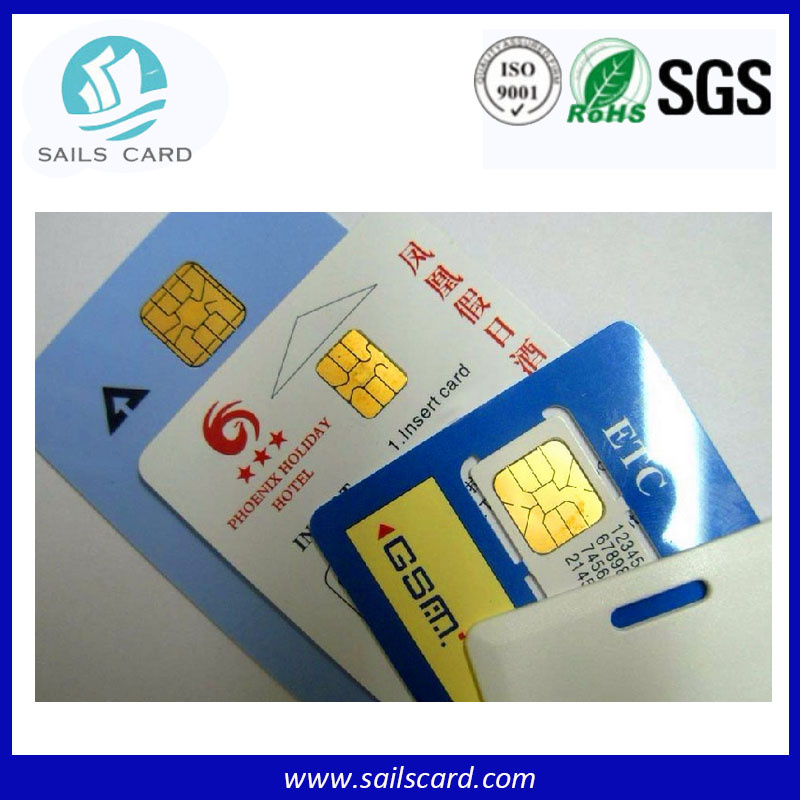

Atmel Series Contact IC Smart Card
| Price: |
US $ 0.15-0.2/Piece |
| Trade Terms: |
FOB,CIF,CIP |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Atmel AT24C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cr80: |
3.375" * 2.125" |
| Origin Of Chip: |
Atmel |
| Origin Of Cards: |
Shenzhen,China |
| Thickness: |
0.82+_0.02 |
| Large Capacity: |
Competitive Price |
| Crafts: |
Printed or Blank |
| OEM: |
Acceptible |
| Function: |
Information |
| Type: |
Contact |
| Structure: |
Logic Encrypt Card |
| Material: |
PVC |
| Usage: |
Key Card |
| Classification: |
Key Card |
| Application Field: |
Hotel |
| Carrier Frequency: |
Contact IC |
Product Description
Atmel 24C series contact IC card specifications
Chip supplier: Atmel,with different memory 1k,2k,4k,8k,16k,32k,64k,128k.Memory cards,widely used in phone card,govements,management, and etc.
Crafts:with printing or blank,serial No.,signature panel,barcode and etc.
ATMEL 24CO1 |
1Kbit, No password, only Read and Write operations |
ATMEL 24C04 |
4Kbit, No password, only Read and Write operations |
ATMEL 24C16 |
16Kbit, No password, only Read and Write operations |
ATMEL 24C64 |
64Kbit, No password, only Read and Write operations |
Product name |
plastic contact atmel smart card for hotel access control |
chip choies |
|
Contact IC Card Chip: |
4442, 4428, SLE5542, SLE5528, ATMEL serial: AT24C02, AT24C04, AT24C08, AT24C16, AT24C32, AT24C64, AT88SC102, AT88SC1604 and so on |
Low Frequency (125KHz) Chips: |
EM4100, EM4205, EM4305, EM4450, TK4100, T5567 / T5577 Compatible HID 26/37bit |
High Frequency (13.56MHz) Chips: |
NXP Mifare 1K S50 / NXP Mifare 4K S70 / Mifare Ultralight NXP Mifare ICODE SLI-L(512 bit) / ICODE SLI(1024 bit) / ICODE SLI-S(2048 bit) NXP Mifare DESFire EV1 4K
NXP Mifare DESFire EV1 8K Tag-it HF-1 Plus (TI2048, TI 2K) Mifare 1K-Compatible: FM11RF08(F08) /Fuada S50
Mifare 4K-Compatible: FM11RF32 /Fuada S70 |
Ultra High Frequency (860~960MHZ) Chip: |
NXP Ucode EPC Gen2/G2XL/G2XM
Alien H2/H3
Impinj M3 |
|
Barcode printing choies |
EAN13,code 39,code 128,2D barcode,Invisible Barcode |
Embossing choies |
gold & silver |
Signature panel |
white, transparent, other colors |
Housing |
Lamination, Reliable, smooth print surface |
Thickness of cards |
0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.76mm(standard), 0.84mm |
Finish of the card |
Glossy, unglossy, matte finish, frosted, UV spot |
Material of the card |
PVC, PET, ABS, transparent PVC |
Printing options |
4 colour offset printing, silk-screen printing, panton colour printing |
Printable |
Evolis, Fargo, Magicard, Zebra, Data Card, ETC |
Production time |
About 7 days |
magnetic strip choies |
hico magnetic stripe(2750 OE), loco magnetic stripe(300 or 600 OE) |
packing |
200pcs/inner box, 20 inner boxes/carton |
Other IC chip options
| Factory | Model number | Specification |
| SIMENS | SLE5542(4442) | 256bit encryption card,can read data,write data and password,protect data and write password. |
| ISO 7816 Compliant pad locations |
| 256*8 bit EEPROM organization |
| byte-wise addressing |
| Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31) |
| 32*1 bit organization of protection memory |
| 2-wire link protocol |
| Answer to reset according to ISO standard 7816-3 |
| Programming time 2.5mS per byte for both erasing and writing |
| Minimum of 10000 write/erase cycles |
| Data retention > 10 years |
| Programmable Security Code (PSC) |
| Data write only after correct 3-byte PSC |
| SLE5528(4428) | ISO 7816 Compliant pad locations |
| 1024*8 bit EEPROM organization |
| byte-wise addressing |
| Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31) |
| 32*1 bit organization of protection memory |
| 2-wire link protocol |
| Answer to reset according to ISO standard 7816-3 |
| Programming time 2.5mS per byte for both erasing and writing |
| Minimum of 10000 write/erase cycles |
| Data retention > 10 years |
| Programmable Security Code (PSC) |
| Data write only after correct 3-byte PSC |
| Shanghai Fudan | FM4442 | 256bit encryption card,can read data,write data and password,protect data and write password.(compatible SLE4442) |
| FM24C16 | 16Kbit |
| FM4428 | 1024bit encryption card,can read data,write data and password,protect data and password operation.(compatible SLE4428) |
| Shanghai Beiling | BL7442 | 256bit |
| BL24C04 | 4Kbit |
| ISSI | ISSI4442 | 256bit |
| ISSI24C16 | 16Kbit |
| ISSI4428 | 8Kbit |
We, Sails RFID Smart Card Technology Co., Limited, focus on the manufacture & sale of LF/HF/UHF RFID label/tag, contact/contactless smart cards, plastic/paper cards, and card related products.
Our main products are: Contact/contactless smart cards with original chip or Chinese compatible chip, PET/paper RFID label, RFID dry/wet inlay, RFID wristband/keytag, NFC tag, one-time use microchip for animal ID, epoxy tag, smart cards inlay, membership VIP cards, gift cards, discounting cards, magnetic stripe cards, barcode/QR code cards, scratch cards, 3D lenticular cards, ID photo cards, un-standard snap off cards, etc. Our products are widely used in smart city constructure, public trsnsportation, supply chain logistics, warehouse asset management, anti-theft, animal ID tracking, campus/community access control, shop chain/club/hotel membership management, and etc. We have provided many clients both at home and abroad with millions of smart cards & RFID, plastic cards, and card related products. Such as paper/plastic card holder, card book, card/RFID reader and etc.
We have advanced card manufacture machine. Such as 5 color Heidelberg offset printer, 2 high-precision production lines for RFID label/inlay, 3 production lines for smart cards, plastic cards(please check details in Equipments). And we have dust-free workshops which reach ISO standard with 24 hours CCTV monitoring.
We are experienced in developing, production & sale of smart cards, RFID & plastic/paper cards. Very competitive price and large daily capacity are our advantages.
Seeing is believing. You are warmly welcome to visit our company. We are sure that you will be satisfied with our good products and our good service. Finally, you will be happy with long-term co-operation with us.
