| Prod Model: |
FIB-150S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor: |
Bitzer/Bock/Copeland |
| Condensation Methods: |
Air Cooling/Water Cooling/Evaporating Cooling |
| Capacity: |
15000kgs |
| Certification: |
CCC |
| Ice Shape: |
Ice Block |
| Condition: |
New |
Product Description
Focusun utilizes both direct refrigeration technology and brine refrigeration technology to meet your different requirements. The standard weight & size of block ice Focusun produces are listed in the form below. Focusun can also customize the size of the block ice to meet your needs and requirements.
Weight
(kg/block) | Dimension
(L*W*H mm) |
|---|
| 5 | 120×100×460 |
| 10 | 155×100×700 |
| 15 | 185×125×700 |
| 20 | 245×125×700 |
| 25 | 315×125×700 |
| 50 | 480×160×700 |
Block ice has a large dimension but has small contact area so it does not melt easily. It is usually cut into different pieces for different uses in ice sculpture, sea shipping and fish vessels. The small pieces of block ice can be also be used for various purposes. There will be a little loss because the ice will thaw partly when crushed. Focusun offers both transparent and milky white ice for your preference.
Ti pipe is used as evaporative coil to improve the heat transfer effect, and its stainlessness, anti-corrosion can guarantee the long service time.
The stainless PE parts between the brine and the fresh water is proper to mode and weld. And it works very well in a cold condition.
the particular design of ice thawing tank and ice dumping unit bring easier operation.
The thawing tank is heated by hot gas discharged from the compressor so that it is more energy saving and suitable for low water temperature area.
Modular and integrated design ensures it is easy to ship, move and install on the spot.
Every brine refrigeration block ice machine can be customized according to our clients' requirements.

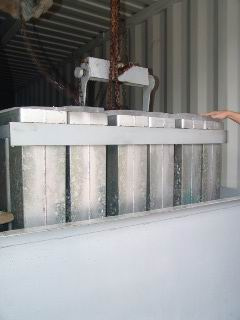

The brine refrigeration block ice machine can be containerized: 6 T/day ice production in a 20' container and 12.5T/day ice production in a 40' container.
Subject | Unit | Technical parameter |
|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz |
| Refrigerant |
| R22 or R404A |
| Capacity | Kg/day | 15000 |
| Temperature | Ambient temperature | ºC | 35 |
| Waterinlet temperature | ºC | 20 |
| Operating power | Total running power | Kw | 60.6 |
| Installment power | Kw | 75 |
| Operating power of cold water pump | Kw | 5.5 |
| Compressor | Manufacturer |
| Bitzer |
| Refrigeration capacity | Kw | 118.2 |
| Operating power | Kw | 51.4 |
| Compressor COP/EER | Kw/kw | 2.3 |
| Horse power | Hp | 40×2 |
| Condenser | power | Kw | 7 |
| Cooling way |
| Water cooling |
| Working time | Ice making time | h | 7.5 |
| Ice doffing time | h | 0.5 |
| Dimension | Weight of each block | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 |
| Size of cooling tower | (L×W×H)(mm) | 2175×2565mm |
| Size of water feeding pipe |
| 1-1/4" |
| Operating weight of cooling tower | Kg | 1120 |
| Water supply pressure requirement | Bar | 1 |
Block ice machine FIB-150S
Brine refrigeration block ice machine technical parameter |
| Model | Capacity | Refrigerant | Electricity consumption | Installment power | Operating weight | Dimension |
|---|
| -- | Ton/D | -- | Kw | Kw | Kg | mm |
| FIB-50S | 5 | R22/R404A | 21.14 | 25 | Unit | L1400×W1000×H1250 |
| Evaporator | L4800×W1000×H2250 |
| Cooling tower | 1380×H2170 |
| FIB-100S | 10 | R22/R404A | 40.69 | 50 | Unit:1680 | L1800×W1000×H1450 |
Evaporator:
2860×2 | L4800×W1000×H2250 |
Cooling tower:
670 | 2000×H2410 |
| FIB-150S | 15 | R22/R404A | 60.60 | 75 | Unit:2160 | L2000×W1200×H1600 |
Evaporator:
2860×3 | L4800×W1000×H2250 |
Cooling tower:
1120 | 2175×H2565 |
| FIB-200S | 20 | R22/R404A | 88.50 | 105 | Unit:2896 | L2400×W1600×H1800 |
Evaporator:
2860×4 | L4800×W1000×H2250 |
Cooling tower:
1300 | 2650×H2645 |
| FIB-250S | 25 | R22/R404A | 98.80 | 120 | Unit:3260 | L3200×W1800×H2200 |
Evaporator:
2860×5 | L4800×W1000×H2250 |
Cooling tower:
1630 | 3050×H2780 |
| FIB-300S | 30 | R22/R404A | 120.30 | 150 | Unit:3500 | L3000×W2000×H2200 |
Evaporator:
2860×6 | L4800×W1000×H2250 |
Cooling tower:
2730 | 3300×H2785 |
Standard condition: Dry bulb temperature is 33 ºC and water inlet temperature is 20ºC.
|
Perfect service system:
All Focusun ice machines come out with 15 months full warranty. If the machine breaks down in 15 months, Focusun will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Focusun will supply the parts and service only for factory cost. |
| Process: | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: |
|
| A | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| B | Have a negotiation of the compensation and sign agreements |
| C | Our After-Sales Department will perform the duties as the agreement |
