| Prod Model: |
AQ-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
170mm Magnet with Aluminum Frame |
| Hf Component: |
90mm Magnet |
| Size Options: |
6", 10", 12", 15" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CCC |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:a. Compact design;
b. Imported multilayer birch plywood;
b. High-quality durable polyesterimide paint;
c. Realistic sound, a clear free alto and treble.
1. Description:

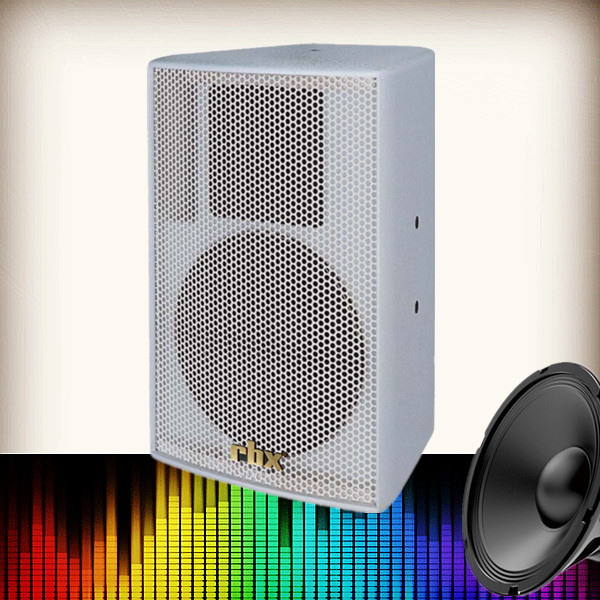

AQ-10 is a two-way full range loudspeaker system. To create a compact trapezoidal design, we apply several sheets of high-density board. The surface of it is painted with high-quality durable polyester coatings.
AQ-10 is equipped with a 10" LF precise driver and a 1" HF precise compression driver, which leads to a balance among bass, alto and treble. When you use it, you will feel a realistic sound, a clear and free alto and treble.
2. Application:
It is ideal for auditorium, conference room.
3. Technical data:| Model | AQ-10 single 10 inch 2-way full range 250W speaker magnet |
| Drivers | LF: 1×10"voice-coil: 2.5" |
| HF: 1×1"voice-coil: 1.35" |
| Frequency(±3dB) | 65HZ-18KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:60° |
| Sensitivity(1m/1W) | 98dB |
| Maximum SPL | 121dB Continuous/126dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate: 250W/Peak: 1000W |
| Recommend AMP | 400W to 600W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 505 × 340 × 290mm (H × W × D) |
| Master carton | 565 × 400 × 550 (H × W × D) |
| Net Weight | 14.75Kg |
| Gross Weight | 16.25Kg |
4. Construction:| Physical | Trapezium |
| Enclosure | High-density board |
| Grille | Die-casting steel net with circular hole |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (18 pcs) |
| Pole Mount | / |
5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.

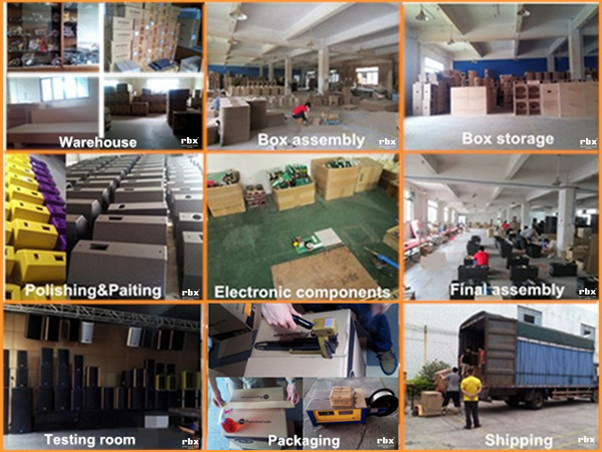

e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.6. Company View:

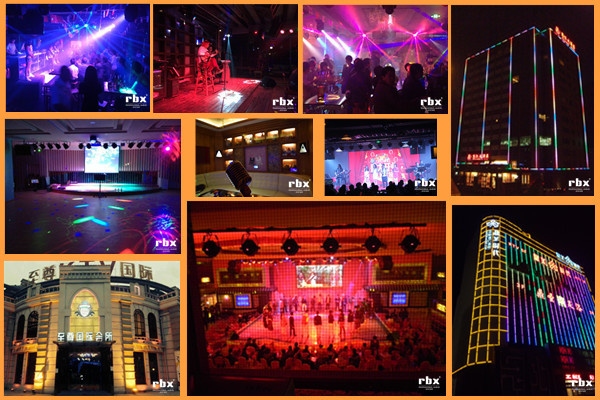

7. Our Projects:
8. Multiple transportation mode selection:
Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.
During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.
Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
