Apa01-41 CATV Pre-Amplifier
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
APA01-41 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bandwidth: |
47~862/1000MHz |
| Output Level: |
100~104dbuv |
| Input Level: |
60~85dbuv |
| Gain: |
20~34db |
| Type: |
CATV（Cable Television）Equipment |
| Function: |
Signal Transmission Equipment |
| Condition: |
New |
Product Description
Pre-AmplifierDescription

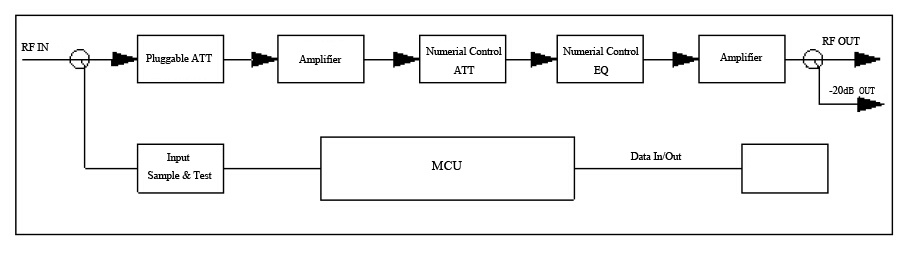

APA01-41 pre-amplifier is used to receive, amplify, monitor and control RF signal. There is a status LED and RF test port on the front panel, and F type connector on the back panel. Low power consumption and low heat improve the stability. Gain of amplifier module can be adjusted and slope of output level can be adjusted by electric-control. Full intelligent design, all the functions can be completed automatically. Status and functions can be monitored and controlled by local control module or SNMP NMS.Features1. Operating bandwidth 47~870/1000MHz. 2. Four optional specification of amplifier gain, refer to different RF input range3. Gain control ranges 0~14dB by 0.5dB stepping. 4. Slope ranges from 0~10dB by 1dB stepping5. Parameters displayed on the LCDBlock Diagram
Specification| RF Specification |
| Frequency | 47MHz-870MHz/1000MHz |
| Flatness | ±0.75dB |
| Level at Test Port | -20dB±1dB |
| Max Nominal Gain | A=20 dB | B=26 dB | C=30 dB | D=34 dB |
| Nominal Input Level (dBμV) | 75-85 | 70-80 | 65-75 | 60-70 |
| Nominal Output Level | 100dBμV |
| Max Output Level | 104dBμV |
Gain Adjustable Range
(0.5dB step) | 0dB-14dB |
Slope Adjustable Range
(1dB step) | 0dB-10dB |
| Noise | ≤8dB |
| C/CTB | 75dB |
| C/CSO | 70dB |
| Signal Hum Ratio | 66dB |
| Input Return Loss | ≥16dB(47MHz-550MHz),
≥14dB(550MHz-870MHz/1000MHz) |
| Output Return Loss | ≥16dB(47MHz-550MHz),
≥14dB(550MHz-870MHz/1000MHz) |
| Gain Stability | ±1dB |
