| Prod Model: |
NM-USB-1557 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black/White/Blue/Transparent |
| Products Status: |
Stock |
| Length: |
1m/3m/5m/10m/Customized |
| OEM/ODM: |
Yes |
| Connector: |
USB |
| Universal: |
Universal |
| Switch: |
Without Switch |
| Data Transmission Function: |
Data Transmission Function |
| Retractable: |
Not Scalable |
| Customized: |
Customized |
| Interface Type: |
USB2.0 to Mini 5pin |
| Charging Function: |
Charging and Data Sync |
Product Description

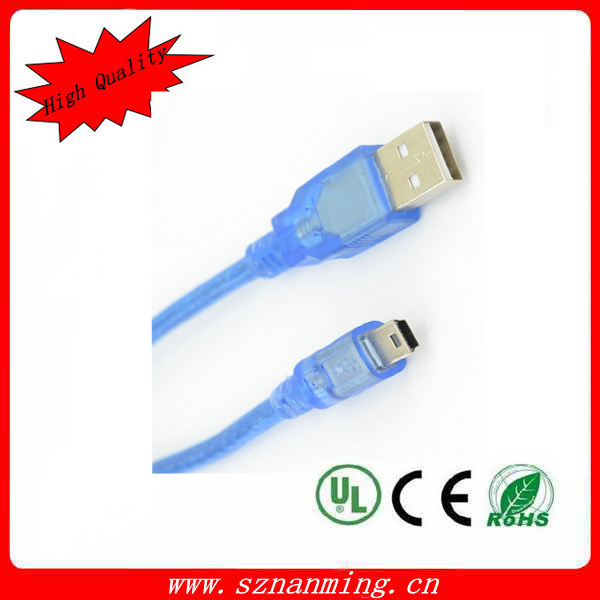

Anti-interference USB A to Mini USB 5-Pin Connection Cable - Blue
Specifications
Purpose | Computer Accessory & Hardware |
|---|
| Type | Cable |
|---|
| Port | Mini USB 2.0, USB 2.0 |
|---|
| Port Gender | Male to Male |
|---|
| Cable Length (m) | 1M |
|---|
| Weight (kg) | 0.035 |
|---|
Features
* USB 2.0 A male type to mini usb type
* Optional gold or nickel plated
* Conductor:pure copper
* Edition:USB1.0,2.0,3.0 Optional
* Gauge:30AWG,28AWG,26AWG optional
* Length:0.5M,1.5M,2M,5M ,10M,15M,and according to the clients'requirement
* Jacket color: Black,Blue ,Grey,Transparent, and according to the clients'requirement
Electrical
*100% open & short test
*Hi-Pot: DC 300V 10ms
*Insulation Resistance: 10M OHM /300V Min.
*Contact Resistance: 0.01 OHM Max.
*Shield up to 65% braid.
*Working Temperature: -25oC ~ +85oC
Mechanical
*Over mold: PVC 70Pa UL94V-0 Black
*Pre mold: PE Low Density
*Contact: Copper Alloy.
*Insertion Force: 35 N Max.
*Withdraw Force: 10 N Min
Packaging
Polybag, headcard, blister, Slide card,giftbox ,according to clients' requirement
1) Type: |
USB(AM) To 5Pin Cable; |
2) Connector: |
Nickel plated; |
2) Conductor: |
pure copper; |
4) Gauge: |
30AWG,28AWG,26AWG optional; |
5) Length: |
0.5M,1.5M,2M,5M Customized; |
6) Jacket color: |
white,Black,Transparent; |
7) Edition: |
USB2.0,3.0 Optional. |
Shenzhen Nan Ming Electronic Co., Ltd. is mainly engaged in the business of mechanical, electrical and electronic products, including USB cables, iPhone cable, VGA cables, HDMI cables, Stereo audio cable, and so on. Insisting on the principle of "Quality First, Reputation First", our company provides customers with various types of products of high quality.
