Product Description

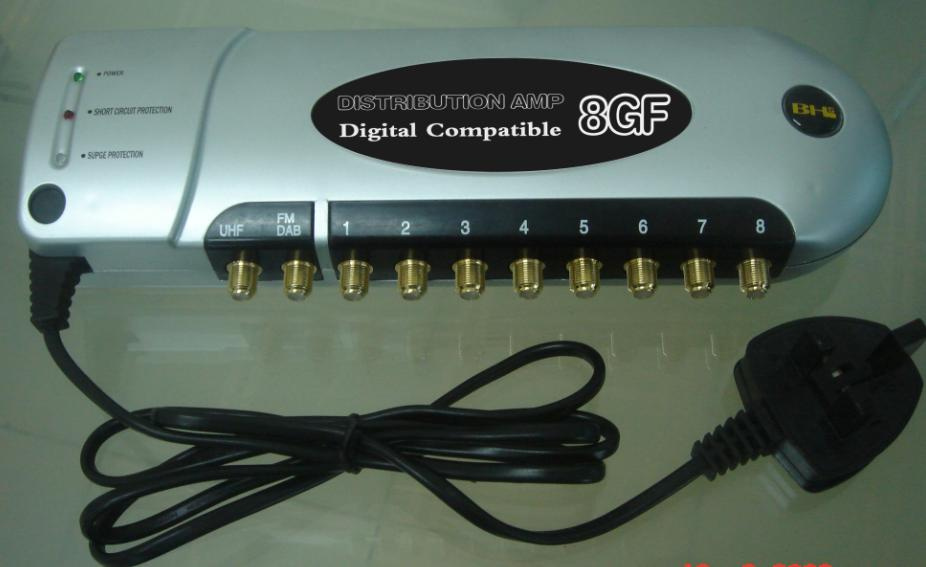

Low noise, High Ioslation, return, LED short-circuit protection instructions, Surge protection of the neon instructions, gold F-plug BHS8GF Antenna amplifier New Desingn Noise High Gain Aerial Amplifiers.
*Dedicated inputs for UHF and VHF/FM/DAB
*Designed with digital Tvand DAB radio in mind and analogue TV and VHF FM compatible
*Easy cable management with side mounted socktes swiveling mains cable
*Excellent value and performance digital ready signal amplifiers to distribute and anplify signals around the home
*Flat gain response across whole ferquency spectrum with TERRAfilter
*Infra red bypass for digilink
*Surge and spike protected and indication
*Improved short cirction and indication
Model No; BHS8GF
Connect; F or Coax
Inputs; 2
Outputs; 8
VHFGain (dB); 8
UHFGain (dB); 8
Return path Gain(dB); 3
Noise figure (dB); 3.5
Output capability (dBμv); 87
Return Loss(dB); >10
Isolation loss (dB); 20
VHF operating frequency range(MHz); 47-300
UHF operating frequency range(MHz); 470-862
Return path frequency range(MHz); 5-30
Output receivr Line power; 9V at 15mA per outlel. MAX. With auto shutdown
Power requirement; 230V AC50Hz/6VA
If you are interesting in our products, please contact.
Jiangyin huihong Electron Co., Ltd., is the leading manufacturer and exporter of High Frequency Electronic Products in China. It is founded in 1999, located in Jiangyin, JiangSu province, which is a beautiful city, Borders on Tai Lake in the south and Changjiang River in the north, running through the Wuxi- Expressway and connecting the Shanghai_Nanjing Expressway.
We have gifted geographical positions with easy access.
Huihong Electron Co., Ltd., integrates with researching, developing, manufacturing and sellingservice. Bangjie has a professional team. Now, all of Bangjie's technicians and designers, whoare all from famous enterprises or related lines, are doing jobs like designing, developingand producing Hign Frequency Electronic Products. All of them have rich experience in development, Manufacture, and quality control. Bangjie can also design and produce the special products as per customes' requests.
Our main products are:
* CATV taps and splitters
* Satellite taps and splitters
* Masthead Mixer Filter
* Indoor low noise amplifiers
* Outdoor low noise amplifiers
* CATV drop amplifiers
* In-line amplifiers
* Outdoor antenna
* Indoor TV antenna
* FM antenna
* AV products
* DiSEqC Switch
* Power supply
* GSM Cellphone Antenna
Huihong Electron aims to supply High Frequency Electronic Products that are fit for use and have the desired performance in accordance with customers requirements and specifications.
We provide safe, reliable and optimum cost products deliver in time. We earnestly hope to promote economic cooperation and trade with more companies all over the world. Together we create a brighter future.
