| Prod Model: |
ZW-Mazda-115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OS: |
Android 4.4 |
| Compatible: |
for Mazda 2 Demio 2007-2014 |
| Harness: |
Includes, Plug and Play |
| Built In: |
GPS, Bluetooth |
| Mirror Link: |
Support |
| Combination: |
iPod |
| Placement: |
Dashboard |
| Certification: |
FCC |
| Voltage: |
12/24V |
| Audio Output: |
L/R Channel |
| Video Output: |
2 RCA |
Product Description
Car Multimedia for Mazda 2/Demio GPS Navigation Sat Stereo Auto Radio Headunit DVD
Item specifics:
Condition:
1.Placement on Vehicle: Front
2.Screen Size: 7 Inch
3.Unit size: Double DIN
4.Dual zone: You can listen to music while viewing gps map
5.Bluetooth: Support handsfree call
6.Rear camera input: Yes
7.OSD language: English, Spanish, Russian, French, Portuguese.....
8.GPS Sat Nav: Android system
9.Warranty: 2 Years

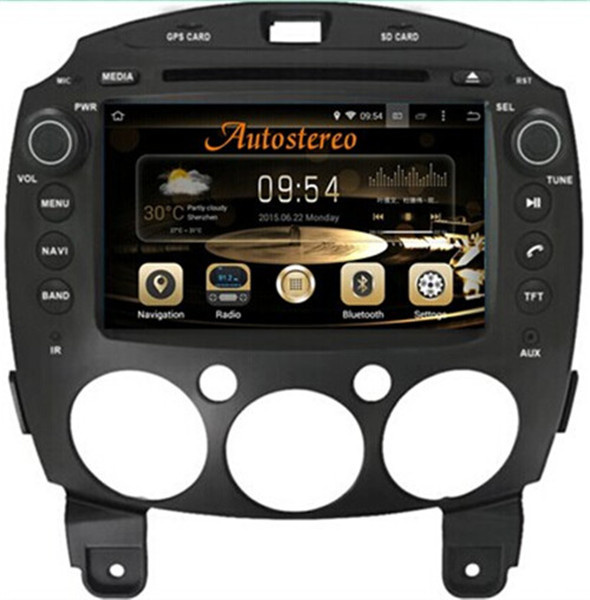

Android 4.4 2 DIN Car DVD Player TouchScreen GPS Navigation For MAZDA 2 Demio 2007-2014
Android System| Capacitive Touch Screen | Bluetooth | Phonebook | DVD | SD|Radio RDS | iPod | Dual Zone | USB | Multi-languages | Mirror Link | Built in WIFI
For fast shipping, please tell us the details as follow when you place order:
1) The produce year of your Mazda Demio?
2) Whether your car dash is the same with the one in our list picture or not?
Configuration details |
| OS | Android 4.4.4 system |
| CPU | Rockchip 3066 Cortex A9 Quad-core |
| RAM | DDR3 1GB |
| Flash | Built in 8GB |
| Video Decode Support | 1080P |
| Touch Screen | Capacitive touch screen |
| GPS |
| Map | Stored in memory or SD card |
| Map Formate Support | Google map online, Sygic, IGO, 3D maps, etc. |
| Media Player | Yes |
| Card Supported | Micro SD Card |
| INTERNET |
| 3G | Support 3G WCDMA 3G dongle |
| Wi-Fi | Built-in WiFi Receiver |
| Android Apps Installation | Yes |
| Display Screen |
| Screen Type | Digital TFT touchscreen |
| Resolution | HD 1024X600 |
| Screen Dimension | 7 inch 16:9 |
| Wall Paper | Live wallpaper |
| GUI Interface | 3D Interface |
| Language |
| Main Interface Language | English, Deutch, Franch, Portuguese, Spanish, Italian, Espanol,etc. |
| DVD Control Language | English,Francais,Spainish,Italian,Portuguese,etc. |
| DVD Playback |
| Disk Format Supported | DVD-Video, DVD±R/RW, DVD-ROM, CD-DA, CD-ROM, CD-R, CD-RW |
| Media | DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/
VCD/SVCD |
| Bluetooth |
| A2DP | Yes |
| Microphone | External Mic |
| Received Call | Yes |
| Dialled Call | Yes |
| Missed Call | Yes |
| Download Contacts | Yes |
| Store Contacts | Yes |
| TV Tuner |
| Built-in Analog TV | No |
| Analog TV System | / |
| Built-in DVB-T Tuner | / |
| DVB-T Format | / |
| Built-in ISDB Tuner | / |
| Radio |
| AM Frequency Range | 522-1620 (Europe), 530-1710 (America) |
| FM Tuning Range | 87.5-108 (Europe), 87.5-107.9 (America) |
| RDS | Yes |
| iPod Control |
| Touchscreen Control | Can Control Music Through Touchscreen |
| Show Information Of Music | Yes |
| Play Video | No |
| Storage Media |
| SD Card Slot For Music/Movie | Micro SD Card Slot |
| MAX Memory Supported 32GB |
| USB Port For Music/Movie | Mini USB Port |
| MAX Memory Supported 32GB |
| Position: Front Panel |
| Portable HD | Yes |
| Video & Audio |
| Video Input | 1-Channel RCA Input |
| Video Output | 2-Channel RCA Output |
| Audio Input | 2-Channel RCA Input |
| Audio Output | 4.1Channel RCA Output |
| Reverse Camera Input | Yes |
| 3 Zone Out | No |
| Other Functions |
| 2-Zone | Yes (Listen Radio/CD While Watching GPS Image) |
| 3-Zone | No (Listening To Radio/Watching GPS Image At The Front And
Watching DVD/SD/USB/TV From The Sub-monitor Simultaneously) |
| Pictrue In Pictrue | No |
| Steering Wheel Control Function | Yes |
| CANBUS | Yes |
| MFD | No |
| TMC | No |
| V-6 Disc Changer Memory | No |
| CDC | No |
| Parking Assistance | No |
| Game | Yes |
| Button Back Light | Red button light |
| Accessories |
| Power Cable*1,iPod Control Wire*1, RCA Cable*1,GPS Antenna*1,USB Cable*1 |
Please Kindly contact with us if you need the following Optional items, we will ship them as one package to you by express.
1. Parking Reverse Camera
2.Wireless module for reverse camera
3.WIFI dongle
4.3G dongle
5.Car DVR video camera recorder for S100 S150 S160 stereo
6.Car panel removal installer kit
7.Digital TV tuner MPEG-4 for S160 stereo
