Prod Model: |
Zw-for Audi-6964 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Screen: |
7'' HD Digital TFT Touchscreen |
Combination: |
iPod |
Placement: |
Dashboard |
Certification: |
SASO |
Voltage: |
12/24V |
Audio Output: |
L/R Channel |
Video Output: |
VGA |
Product Description

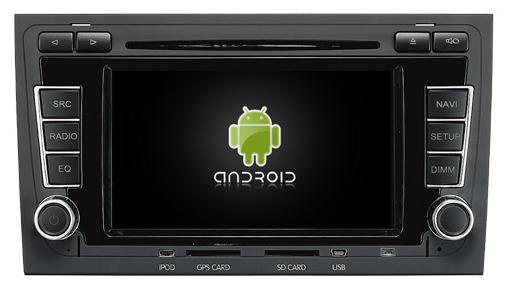

Android 4.4.4 Autoradio DVD MP5 Player for Audi A4
For AUDI A4/S4/RS4 (2002-2008)
Android 4.4.4 System
CAPACTIVE Screen
1080P HD Video
CPU: Rockchip 3066 Cortex A9 Dual-Core 1.6GHZ Frequency
1G DDR3 RAM Memory
Built In 8GB Inand
Built-In DVR Function With External Camera (Click HERE for details)
Built-In WIFI Module
Support External 3G Dongle
Built-In Navigation With 3D Map (Map In Inand )
Quick Response After Lighting The Car: Within 1 Sec For Starting, Within 2 Secs For Sound,Within 3 Secs For Rearview,
Within 25 Secs For Operation When Tons Of Applications Installed
APE Music
Support HD 2D & 3D Games
Front And Rear Camera Can Work Together
Support Thousands Of Softwares Downloading From Android Market
Support SD/MMC/SDHC SD Ports, SDHC Supports Max 32G, HDD
Bluetooth Supports All Brands Cellphones,Phonebook Input,Music Playback, Supports Name Search By A-Z
Video Support: WMV(VC1 Code)AVI (H.264, MPEG4,Xvid, WMV),MP4 (H.263, H.264, MPEG4), MPG(MPEG-2),M4V(H.264, MPEG4)
Configuration
OS
Android 4.4.4 system
CPU
Rockchip 3066 Cortex A9 dual-core
RAM
DDR3 1GB
Flash
Built in 8GB
Video Decode Support
1080P
Touch Screen
Capacitive touch screen
GPS
Map
Stored in memory or SD card
Map Formate Support
Google map online, Sygic, IGO, 3D maps, etc.
Media Player
Yes
Card Supported
Micro SD Card
INTERNET
3G
Support 3G WCDMA 3G dongle
Wi-Fi
Built-in WiFi Receiver
Android Apps Installation
Yes
Display Screen
Screen Type
Digital TFT touchscreen
Resolution
800X480
Screen Dimension
7 inch 16:9
Wall Paper
Live wallpaper
GUI Interface
3D Interface
Language
Main Interface Language
English, Deutch, Franch, Portuguese, Spanish, Italian, Espanol,etc.
DVD Control Language
English,Francais,Spainish,Italian,Portuguese,etc.
DVD Playback
Disk Format Supported
DVD-Video, DVD±R/RW, DVD-ROM, CD-DA, CD-ROM, CD-R, CD-RW
Media
DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD
Bluetooth
A2DP
Yes
Microphone
Built-in Microphone
Received Call
Yes
Dialled Call
Yes
Missed Call
Yes
Download Contacts
Yes
Store Contacts
Yes
TV Tuner
Built-in Analog TV
Yes
Analog TV System
NTSC, PAL-B/G, PAL-I, PAL-D/K,PAL-M,PAL-N,SECAM-BG,SECAM-DK
Built-in DVB-T Tuner
/
DVB-T Format
/
Built-in ISDB Tuner
/
Radio
AM Frequency Range
522-1620 (Europe), 530-1710 (America)
FM Tuning Range
87.5-108 (Europe), 87.5-107.9 (America)
RDS
Yes
iPod Control
Touchscreen Control
Can Control Music Through Touchscreen
Show Information Of Music
Yes
Play Video
No
Storage Media
SD Card Slot For Music/Movie
Normal SD Card Slot
MAX Memory Supported 32GB
USB Port For Music/Movie
Normal USB Port
MAX Memory Supported 32GB
Position: Back of the Unit
Portable HD
Yes
Video & Audio
Video Input
1-Channel RCA Input
Video Output
2-Channel RCA Output
Audio Input
2-Channel RCA Input
Audio Output
4.1Channel RCA Output
Reverse Camera Input
Yes
3 Zone Out
No
Other Functions
2-Zone
Yes (Listen Radio/CD While Watching GPS Image)
3-Zone
No (Listening To Radio/Watching GPS Image At The Front And Watching DVD/SD/USB/TV
From The Sub-monitor Simultaneously)
Pictrue In Pictrue
No
Steering Wheel Control Function
Yes
CANBUS
Yes
MFD
No
TMC
No
V-6 Disc Changer Memory
No
CDC
No
Parking Assistance
No
Game
Yes
Button Back Light
Red button light
Accessories
Power Cable*1, iPod Control Cable*1, RCA Cable*1,GPS Antenna*1,USB Cable*1
