| Prod Model: |
MB-100A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Adhibition: |
1-CH Analog Audio Long Distance Transmission |
| Features: |
Protect Audio Equipment Against Damaging Voltage |
| Application: |
Monitor |
| Color: |
Black |
| Brand: |
Muxboxs |
Product Description
Overview

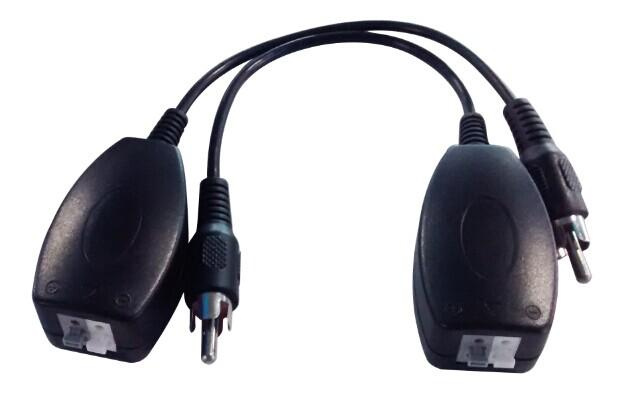

The Analog Audio Balun(MB-100A)allows one Analog Audio to be transmitted Via Cat5/5e/6 Cable, up to 2340ft(720m)in a point-to-point connection. It is built in surge suppressor to protect Audio equipment against damaging voltage spikes. Its integrated ground loop isolation prevents annoying"hum-bars"Common noise with long distance installations. The product is designed for audio applications where full-range, analog audio frequency response is required. Used in pairs, the Analog Audio Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be
Connected or moved within a structured cabling environment.
Applications
Boardroom systems, classroom training, Auditoriums, custom home installations
And intercom systems.
Features & Benefits
1-CH Analog Audio Long Distance Transmission
20 Hz to 20 KHz bandwidth
Up to 2340ft (720m) via Cat5/5e/6
Cost-efficient cabling
Quicker moves, adds and changes
Quick Setup Guide
Plug the Analog Audio RCA Connectors of the transmission Balun into the Audio output of the source component, plug the Analog Audio RCA connectors from the Receive Balun into your desired input component. Insert the CAT5 cable into both ends of the Baluns. You may use standard EIA 568A/B Termination.
NOTE: Baluns are interchangeable for transmit or receive functions.
|
Product Name |
1-CH Analog Audio Balun |
|
Devices |
DVD players, satellite receivers, MPEG players, laptops, Hi-FI stereo audio amplifiers, audio switchers, AV monitors, powered subwoofer and other line level audio equipment |
|
Transmission |
Transparent to the user. |
|
3dB Bandwidth |
20 Hz to 20 KHz over the distance range |
|
Maximum Input |
1.1Vp-p |
|
Insertion Loss per balun pair |
Less than 2 dB over the frequency range. |
|
Common Mode Rejection |
Greater than 60 dB @ 1KHz
Greater than 40 dB over the frequency and distance range |
|
THD |
Maximum 0.007% @ 1 KHz over distance range |
|
Audio Source Impedance |
100 ohms maximum |
|
Audio Receiver Impedance |
10 k ohms minimum |
|
Max. Distance – Cat5e/6 UTP |
2340ft (720m) |
|
Cable – UTP |
24AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz;
Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz |
|
Connectors |
ONE RCA-M connectors for Analog Audio
2-P Push pin for twisted pair |
|
Temperature |
Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing |
|
Enclosure |
ABS fire retardant plastic |
