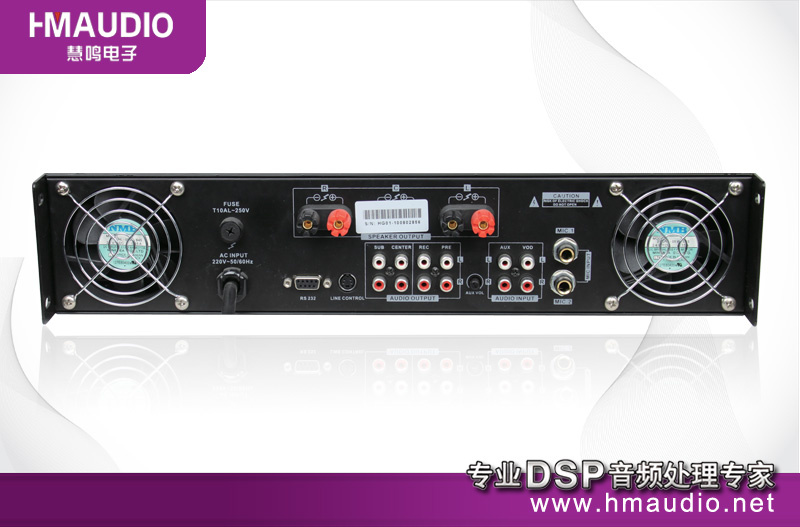

| Prod Model: |
M3300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 485*460*95mm: |
615*595*145 |
| Used For: |
Professional |
| Usage: |
KTV System |
| Sound Channel: |
2.1 |
| Voltage: |
AC 220V |
| Tube Type: |
Tube Amplifier |
| Output Number: |
2 |
| Function: |
Karaoke Amplifier |
Product Description
1. Use stereo reverb with digit DSP processing chip, Sound eff make the performance more professional make stereo surround sound eff more stronger.
2. DSP 24Bit96HKZ processor, independent adjust the stereo eff mode, echo & reverb(L/R), function more stronger.
3. Professional F. B restraint module, easily solved screaming.
4. Music 7 band parameters EQ, wider range of adjustment
5. MIC 6 band parameters EQ adjust the center adjusting the vocal is more soft & delicate.
6. The MIC, ECHO & music main volume, its starting & limit the volume setting function
7. 32 memory functions, of 16 preset & 16 ' self eff, all parameters to AUTO save, close-down the machine the data will not lost.
8. SUB channel has 45-250Hz phase adjust the volume can be control independently
9. When the MIC input, the SUB-output port, signal attenuation AUTO attenuate, the attenuation can be adjusted, to prevent SUB-sound damage to the settings.
|
Technical Parameter |
|
Items |
Parameter |
Test |
|
Output Power |
|
|
M2300 |
M2500 |
M3300 |
|
|
main output(L/R) |
300W 8Ω |
500W 8Ω |
300W 8Ω |
|
|
center |
× |
× |
180W 8Ω |
|
SUB |
× |
× |
× |
|
(L/R) |
× |
× |
× |
|
S/N |
MIC |
75dB |
1KHz OdB input |
|
MUSIC |
90dB |
|
THD |
MIC |
0.03% |
1KHz OdB |
|
MUSIC |
0.01% |
input |
|
Sensitivity |
MIC |
15mV |
|
MUSIC |
300mv |
|
|
MIC |
10K unbalance |
|
Input impedance |
MUSIC |
47K unbalance |
|
Frequency |
20Hz-20KHz(± 0.5dB, 1kHz) |
|
Feed back inhibition |
√ |
|
Channel resolution |
85dB |
|
Tone adj |
MIC |
BASS: 100Hz(± 15dB), LM: 100~1.5k(± 15dB), HM: 700~10k(± 15dB), TREBLE: 10KHz(± 15dB) |
|
MUSIC |
57Hz, 134Hz, 400Hz, 1kHz, 2.2kHz, 6.3kHz, 16kHz(± 15dB) |
|
Weight |
NET Weight |
18 KG |
19.5 KG |
21.5 KG |
|
|
Total Weight |
14.8 KG |
20KG |
22.2 KG |
|
|
RMS |
|
|
1000W |
1500W |
1300W |
|
|
Dimensions(W*H*D) |
Unit Dimensions |
485*460*95MM |
|
Pack Dimensions |
615*595*145MM |
