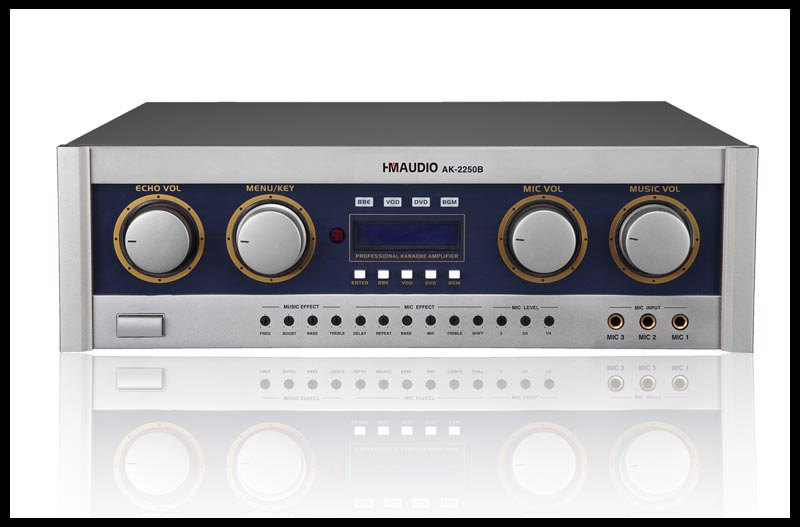

| Prod Model: |
AK-2250B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 435*400*130mm: |
510*470*200mm |
| Used For: |
Professional |
| Usage: |
KTV System |
| Sound Channel: |
3.1 |
| Output Number: |
8 |
| Voltage: |
AC 220V |
| Function: |
Amplifier Combined |
| Tube Type: |
Tube Amplifier |
Product Description
Use stereo reverb with digit DSP processing chip, Sound effect make the performance more professional make stereo surround sound effect more stronger.
DSP 24Bit96HKZ processor, independent adjust the stereo effect mode, echo & reverb(L/R), function more stronger.
Professional F. B restraint module, easily solved screaming.
Music 7 band digital EQ, wider range of adjust
MIC 6 band parameters EQ adjust the center adjusting the vocal is more soft & delicate.
The MIC, ECHO & music main volume, its starting & limit the volume setting function
32 groups memory functions, of 16 groups preset & 16 groups self effect, all parameters to AUTO save, close-down the machine the data will not lost.
SUB channel has 45-250Hz phase adjust the volume can be control independently
When the MIC input, the SUB-output port, signal AUTO decay, the decay can be adjust, to prevent SUB-sound damage to the settings
|
Technical Parameter |
|
Items |
Parameter |
Test |
|
Output Power |
|
|
M2300 |
M2500 |
M3300 |
|
|
main output(L/R) |
300W(8Ω ) |
500W(8Ω ) |
300W(8Ω ) |
|
|
center |
× |
× |
180W(8Ω ) |
|
SUB |
× |
× |
× |
|
Surroud(L/R) |
× |
× |
× |
|
S/N |
MIC |
75dB |
1KHz OdB input |
|
MUSIC |
90dB |
|
THD |
MIC |
0.0003 |
1KHz OdB |
|
MUSIC |
0.0001 |
input |
|
Sensitivity |
MIC |
15mV |
|
MUSIC |
300mv |
|
(Ω ) |
MIC |
10K unbalance |
|
Input impedance |
MUSIC |
47K unbalance |
|
Frequency |
20Hz-20KHz(± 0.5dB, 1kHz) |
|
Feed back inhibition |
√ |
|
Channel resolution |
85dB |
|
Tone adj |
MIC |
BASS: 100Hz(± 15dB), LM: 100~1.5k(± 15dB), HM: 700~10k(± 15dB), TREBLE: 10KHz(± 15dB) |
|
MUSIC |
57Hz, 134Hz, 400Hz, 1kHz, 2.2kHz, 6.3kHz, 16kHz(± 15dB) |
|
Weight |
NET Weight |
18 KG |
19.5 KG |
21.5 KG |
|
|
Total Weight |
14.8 KG |
20KG |
22.2 KG |
|
|
RMS |
|
|
1000W |
1500W |
1300W |
|
|
Dimensions(W*H*D) |
Unit Dimensions |
485*460*95MM |
|
Pack Dimensions |
615*595*145MM |
