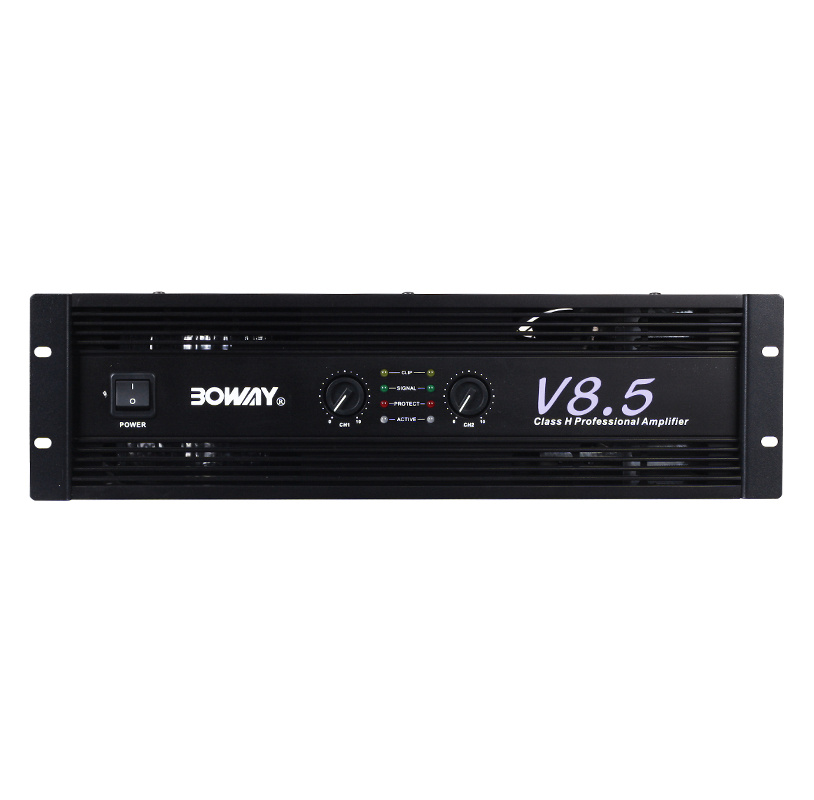

Amplifier (V8.5)

Amplifier (V8.5)
Price: Negotiable
Trade Terms: FOB
Min Order: 1
Pay Type: L/C,T/T
Prod Model: V8.5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Used For: Professional
Sound Channel: 2.1
Output Number: 4
Voltage: AC 220V
Function: Post Amplifier
Tube Type: Tube Amplifier
Element Number: Push-Pull Amplifier
Conductive Mode: AB

Product Description

BOWAY V Series professional power amplifier is designed with special features to meet the requirement of professional sound contractors by providing them power, fast response and accurate sound. With these features, V Series professional power amplifier is ideal solution for permanently installed sound systems. V Series amplifier was designed based on Type H output circuit cope with excellent quality components which provides the maximum power to 1100Wx2 at 8 ohm with extra low distortion.

Type H output circuit
Full short circuit protection, Opern circuit protection
Overheat & overload protection
Peak power limiter
Clip indicator, Soft start
Dual speed fan motor cooling system
Input sensitivity selector, mono/bridgel selector
Input connectors: 6.35mm phone jacks, XLR connectors
Output connectors: Neutrik speakon 4, Versatile binding post Power
output power V7.5 V8.5 V9.5
8 ohm 700W x 2 950W x 2 1100W x 2
4 ohm 1000W x 2 1500W x 2 1800W x 2
8 ohm bridge made 2000W 2700W 3200W
Frequency response 20Hz-20KHz 20Hz-20KHz 20Hz-20KHz
Input sensitivity 1V, 1.4V 1V, 1.4V 1V, 1.4V
Input impedance 20Kohm/10Kohm) 20Kohm/10Kohm 20Kohm/10Kohm
Signal to noise ratio > 105dB > 105dB > 105dB
Crosstalk > 65dB > 65dB > 65dB
Damping factor > 800 > 800 > 800
Slew rate > 50V/ us > 50V/ us > 50V/ us
Dimension(mm) 482x447x132 482x447x132 482x447x132
Weight(kgs) 20.5 25.5 30.5

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the best quality at the reasonable price.
