| Prod Model: |
V7.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sound Channel: |
2.1 |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Function: |
Post Amplifier |
| Tube Type: |
Tube Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
Product Description

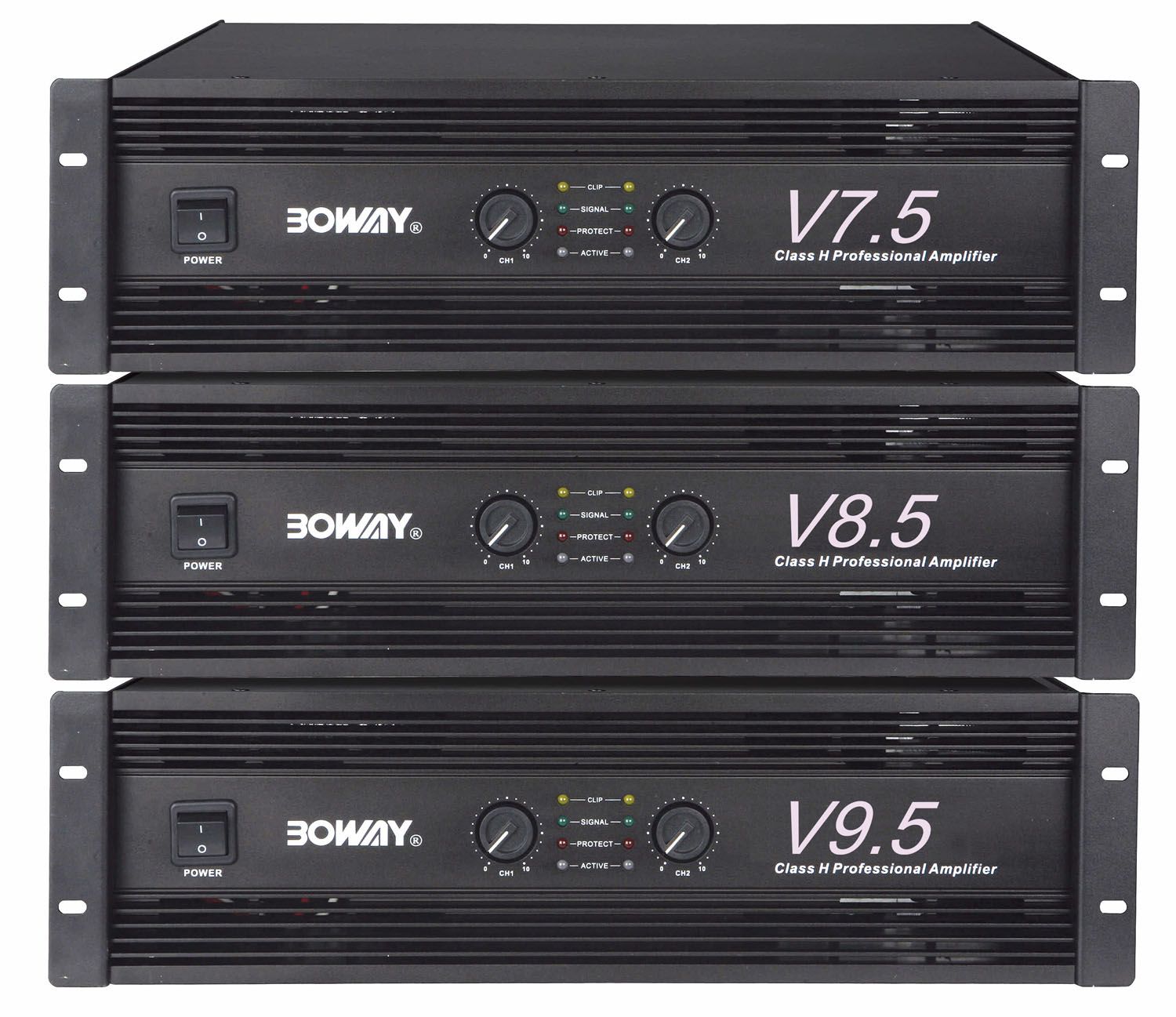

BOWAY V Series professional power amplifier is designed with special features to meet the requirement of professional sound contractors by providing them power, fast response and accurate sound. With these features, V Series professional power amplifier is ideal solution for permanently installed sound systems. V Series amplifier was designed based on Type H output circuit cope with excellent quality components which provides the maximum power to 1100Wx2 at 8 ohm with extra low distortion.
Type H output circuit
Full short circuit protection, Opern circuit protection
Overheat & overload protection
Peak power limiter
Clip indicator, Soft start
Dual speed fan motor cooling system
Input sensitivity selector, mono/bridgel selector
Input connectors: 6.35mm phone jacks, XLR connectors
Output connectors: Neutrik speakon 4, Versatile binding post
Power
|
output power |
V7.5 |
V8.5 |
V9.5 |
|
8 ohm |
700W x 2 |
950W x 2 |
1100W x 2 |
|
4 ohm |
1000W x 2 |
1500W x 2 |
1800W x 2 |
|
8 ohm bridge made |
2000W |
2700W |
3200W |
|
Frequency response |
20Hz-20KHz |
20Hz-20KHz |
20Hz-20KHz |
|
Input sensitivity |
1V, 1.4V |
1V, 1.4V |
1V, 1.4V |
|
Input impedance |
20Kohm/10Kohm) |
20Kohm/10Kohm |
20Kohm/10Kohm |
|
Signal to noise ratio |
> 105dB |
> 105dB |
> 105dB |
|
Crosstalk |
> 65dB |
> 65dB |
> 65dB |
|
Damping factor |
> 800 |
> 800 |
> 800 |
|
Slew rate |
> 50V/ us |
> 50V/ us |
> 50V/ us |
|
Dimension(mm) |
482x447x132 |
482x447x132 |
482x447x132 |
|
Weight(kgs) |
20.5 |
25.5 |
30.5 |
