| Prod Model: |
GL3800-824 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Channels: |
24 Channel Frames |
| Frequency Response: |
20Hz to 50kHz +/-0.5dB |
| Maximum Input Level: |
Mic +34dbu (Inc Pad),CH Line +34dbu,Other Line +20 |
| Sensitivity: |
0vu = +4dbu at XLR Output |
| Mic Cmrr At 1kHz: |
> 80dB Typical |
| Thd+N At +14dbu 1kHz: |
Mic to Mix out < 0.003% |
| Crosstalk At 1kHz: |
Fader Shutoff >90dB,Mute Shutoff >88dB,Inter Chann |
| Channel Hpf: |
12dB/Octave Below 100Hz |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Touch Control |
| Speaker Material: |
Metal |
| Application: |
Professional Performance |
| THD: |
<0.005% |
| Speaker System: |
Audio Mixer |
| Monitor: |
No |
Product Description

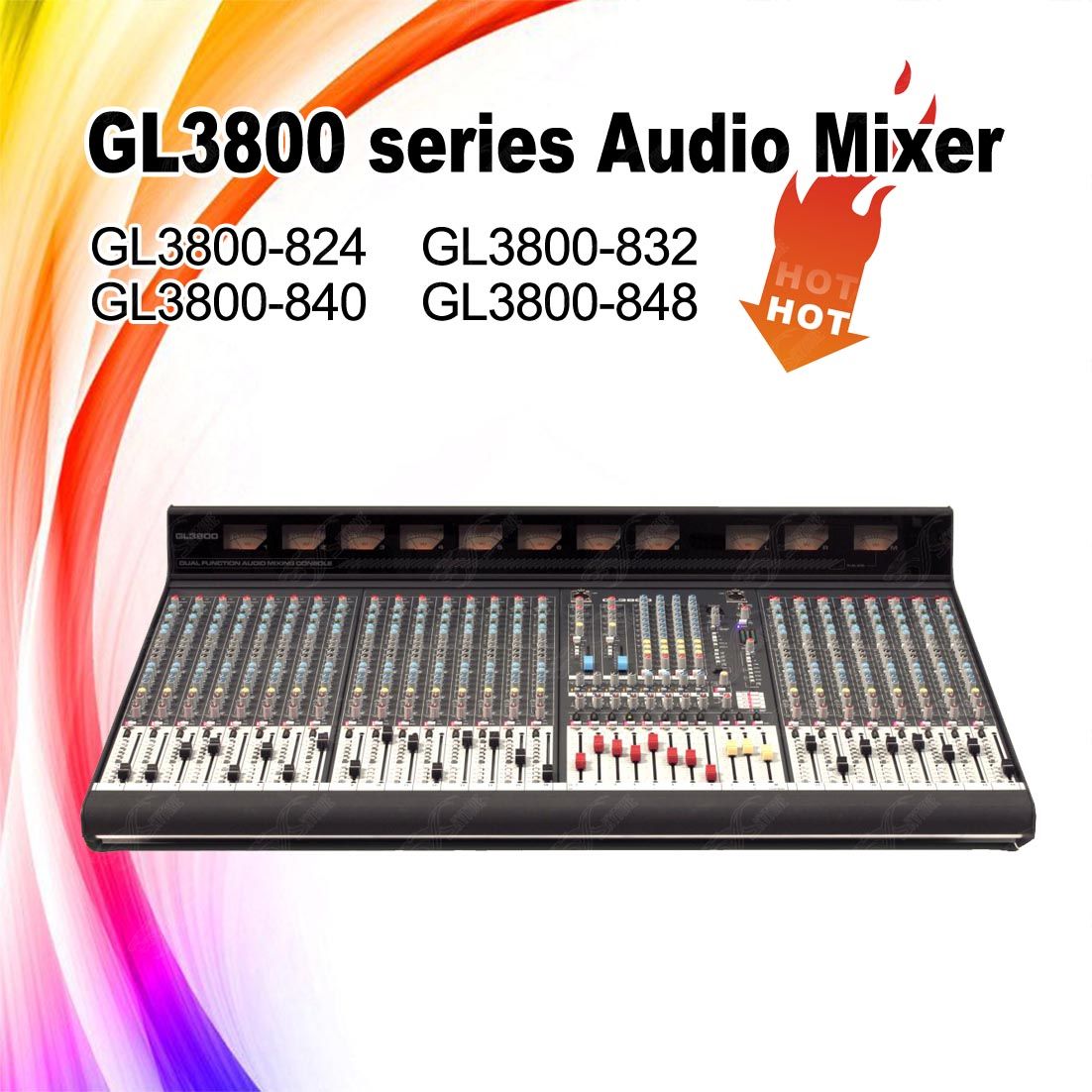

GL3800-824 mixer/mixing console
24 channel mixer
The GL3800 features an enhanced capability for the latest in live sound mixing, and is truly dual-function with all 10 auxes configurable to fader control with insert point and XLR drive. Available in frame sizes up to 48 channels, with the choice of all mono, 4 or 8 stereo channels, the mixer also includes a meterpod with illuminated VUs, and front and rear ident strips.
This great sounding, well featured console has a familiar, walk-up-and-go layout and responsive feel, giving the engineer the very best of analogue console engineering.
Features:
--24, 32, 40, and 48 channel frames
--A, B, C, D mono/stereo channel options
--LR and M main mixes
--8 Audio groups with pan and routing to LR and M
--10 Auxes including a dedicated stereo send with level and pan controls
--2 multi-function stereo channels each with mic and stereo line inputs
--2 extra dual stereos provide 4 summed or independent stereo returns
--Fully featured 12× 4 Matrix
--Proper dual functionality for FoH, monitor mixing, or both
--Recording capable with channel direct outputs
--M can be used for centre/sub mix, LR mono sum, or engineers wedge
--Matrix external inputs with level trims and common input capability
--Stereo channel mic inputs can cross patch into matrix for ambience feed
--Responsive 4 band, 2 sweep EQ
--100Hz channel high pass filters
--Individual phantom power and polarity switching
--Integral meterpod with 11 LED-illuminated, moving coil VU meters
--Wide angle LED channel and master meters
--Dedicated stereo monitor meters
--Per channel pre/post fader aux switching for full flexibility
--Front panel pre/post-EQ switches for user preference
--Mutes on all fader masters
--100mm premium grade dual rail faders
--Assignable talkback to all outputs, includes a talk switch latch mode
--1kHz oscillator / pink noise generator with external output
--2-track monitoring and replay to LR
--3 headphones/earpiece sockets and local monitor outputs
--Electronically balanced XLR outputs with +26dBu drive capability
--Preamp 74dB range with +34dBu input capability for mic or line
--Ultra low noise mix head AMP design
--Uses RPS11 high performance, external linear power supply
--Built-in combiner for redundant backup supply
--Individual circuit card assembly with nutted pots
--Sys-Link V2 console input/output linking option
--4-pin XLR lamp sockets - Allen & Heath LEDlamp available.
| Technical Specification | GL3800-824 | GL3800-832 | GL3800-840 | GL3800-848 |
| Frequency response | 20Hz to 50kHz +/-0.5dB |
| Maximum input level | Mic +34dBu (inc pad),CH Line +34dBu,Other Line +20dBu |
| Maximum input level | XLR +26dBu,Jack +20dBu |
| Sensitivity | 0VU = +4dBu at XLR output |
| Mic CMRR at 1kHz | > 80dB typical |
| THD+n at +14dBu 1kHz | Mic to mix out < 0.003% |
| Crosstalk at 1kHz | Fader shutoff >90dB,Mute shutoff >88dB,Inter channel >90dB |
| Channel HPF | 12dB/octave below 100Hz |
| L, R, M outputs | XLR balanced pin 2 hot <75 ohm, +4dBu, +26dBu max |
| Group (aux) out | XLR balanced pin 2 hot <75 ohm, +4dBu, +26dBu max |
| Aux 1-10 output | TRS impedance balanced <75 ohm, -2dBu, +20dBu max, Electronic balance option <75 ohm, +4dBu, +26dBu max |
| Direct out | TRS impedance balanced <75 ohm, 0dBu, +20dBu max |
| Matrix out | TRS impedance balanced <75 ohm, -2dBu, +20dBu max, Electronic balance option <75 ohm, +4dBu, +26dBu max |
| Headphones | TRS, tip L, ring R, 30 to 600 ohm headphones recommended |
| Monitor out | TRS impedance balanced <75 ohm, -2dBu, +20dBu max |
| Talkback/osc out | TRS impedance balanced <75 ohm, +20dBu max |
| Dimensions: | 1026mm*691mm*275mm | 1281mm*691mm*275mm | 1536mm*691mm*275mm | 1971mm*691mm*275mm |
| Weight: | 33kg | 42kg | 51kg | 60kg |
