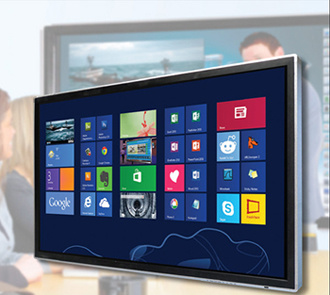

All in One Touch Screen
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
>60 Inches |
| Aspect Ratio: |
16:9 |
| Screen Type: |
Infrared |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Customized |
Product Description
All in one touch screen10~32 points touch screen monitor (touch screen all in one monitor) is built with TV, computer, touch screen kit and audio inside. The thickness of whole machine is less than 10cm. It is very popular in school, Free education software packed with PCSizes: 55", 65", 70" and 84"Features:· Infrared technology Finger touch· Multi fingers touch, 10 Points of Writing Touch (32 Points touch);· HDMI -High-Definition Multimedia Interface keep the original high-resolution voice and image signals transmission· Flexible Media Content-provide easy access for quick media changes and service· Drawer-type OPS Box· Different color for choose· Using anti-glare safety glass to protect the LED panel | Touch monitor specification |
| LED brand | | 42, 47'' 55'' ---LG 65'' -AUO , 70'' -Sharp , 84''--LG |
| | Display Colors | 1.07 billion colors |
| Number of Pixels | 1920x1080 pixels |
| Brightness | 500cd/m2 |
| Viewing Angle | 178 Degree |
| TV Parameters | TV standard: | NTSC M/N,PAL BG/DK/I/H,SECAM L/L |
| Multimedia Formats | MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV, |
| USB2.0 Multimedia | Vido/Audio/Picture |
| USBOnlineSystem Upgrading | Support USB online upgrading function |
| Resolution | Max. 1080P format |
| HDMI | V1.3, 720P/1080P |
| HDCP | V1.1 |
| 3D DNR | Support 3D video DNR |
| Scanning Format | Support 1080i 3D Video crisscross DAS (Dynamic Adaptive |
| Sound Control | Automatic sound standard detection, adjustment and surround Sound |
| Touch parameters | Touch Technology | Infrared touch technology |
| Touch mode | Single, multipoint,Mouse click |
| Inductive objects | Finger,pen or any other opaque objects |
| Inductive size | Diameter≥5mm |
| Resolution | 4096*4096 |
| Response time | 1) First dot(click):8ms, continuously(writing):3ms |
| 2) multipoint click:first dot(click):8ms,continuously(writing):8ms |
| 3) Mouse click:first dot(click):8ms,continuously(writing):8ms |
| Cursor speed | UP to 300 dots/s;Multipoint,mouse click:125 dot/s |
| Operating life | ≥60,000,000 times to click |
| Power | USB power supply (4.6-5V, DC) |
| Power consumption | ≤1w |
| Multi-touch operation: | Compatible with windows 7 OS, to achieve the multi-touch and writing with two points,support win7 gesture recognition |
| Calibration | no need special software to calibrate, just use Table PC setting to finish the calibration. |
| Anti-light decay function | Anti-light decay circuits to prevent the performance,degradation caused by long working hours |
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions |
| Standard configuration | Interactive all-in-one touch monitor | 1set |
| Remote Control | TV Remote control |
| USB cable | 1.5m USB cable for touch monitor, USB2.0 |
| Wall brackets screw | 4 pcs |
| Wall brackets | 2 pcs |
| Teaching pointer | 1 pcs |
| Pens without ink | 2 pcs |
| User manul | 1 pcs |
| OPS PC(optional ) | Motherboard | Wibtek T1037UG-SM |
| CPU | Intel Celeron Processor 1037U dual -core 1.8GHZ |
| RAM | DDR III 2G |
| Configuration Hard Disk | Hitachi 500G |
| Sound Card | Realtek ALC8661 |
| Graphics card | Integrated graphics core |
| Network Adapter | Onboard Realtek RTL8111E Gigabit Ethernet |
| Wireless Mouse | Optional |
Gorgeous(Zhangjiagang) AV Co., Ltd is a famous audio&visual equipment manufacturer. Since its founded, we have established friendly business relationship with more than 30 countries and regions of the worldwide. Our main markets include Europe, South and North America, Middle East and so on.
Years experience in selling, Professional technology team can guarantee high quality, punctual delivery, attractive reasonable prices and thoughtful service to all our customers.
Gorgeous products mainly are: Full range of projection screens, digital visualizers, interactive whiteboards, projector mount, projector trolley etc. All products are customized for OEM or ODM. They can meet with ISO, RoHS, CE and UL standards.
If you have any requirements, please don't hesitate to contact us. Our further information will be forwarded to you without any delay.
