| Prod Model: |
A10-7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 1.44: |
Inch |
| 1.8: |
Inch |
| 2.0: |
Inch |
| 2.6: |
Inch |
| 2.8: |
Inch |
| 3.2: |
Inch |
| 3.5: |
Inch |
| 3.8: |
Inch |
| 4.0: |
Inch |
| 4.3: |
Inch |
| Type: |
TFT |
| Application: |
Mobile Phone |
| Widescreen: |
Widescreen |
| Feature: |
With Remote Control |
| Optimum Resolution: |
3840x2160 |
Product Description

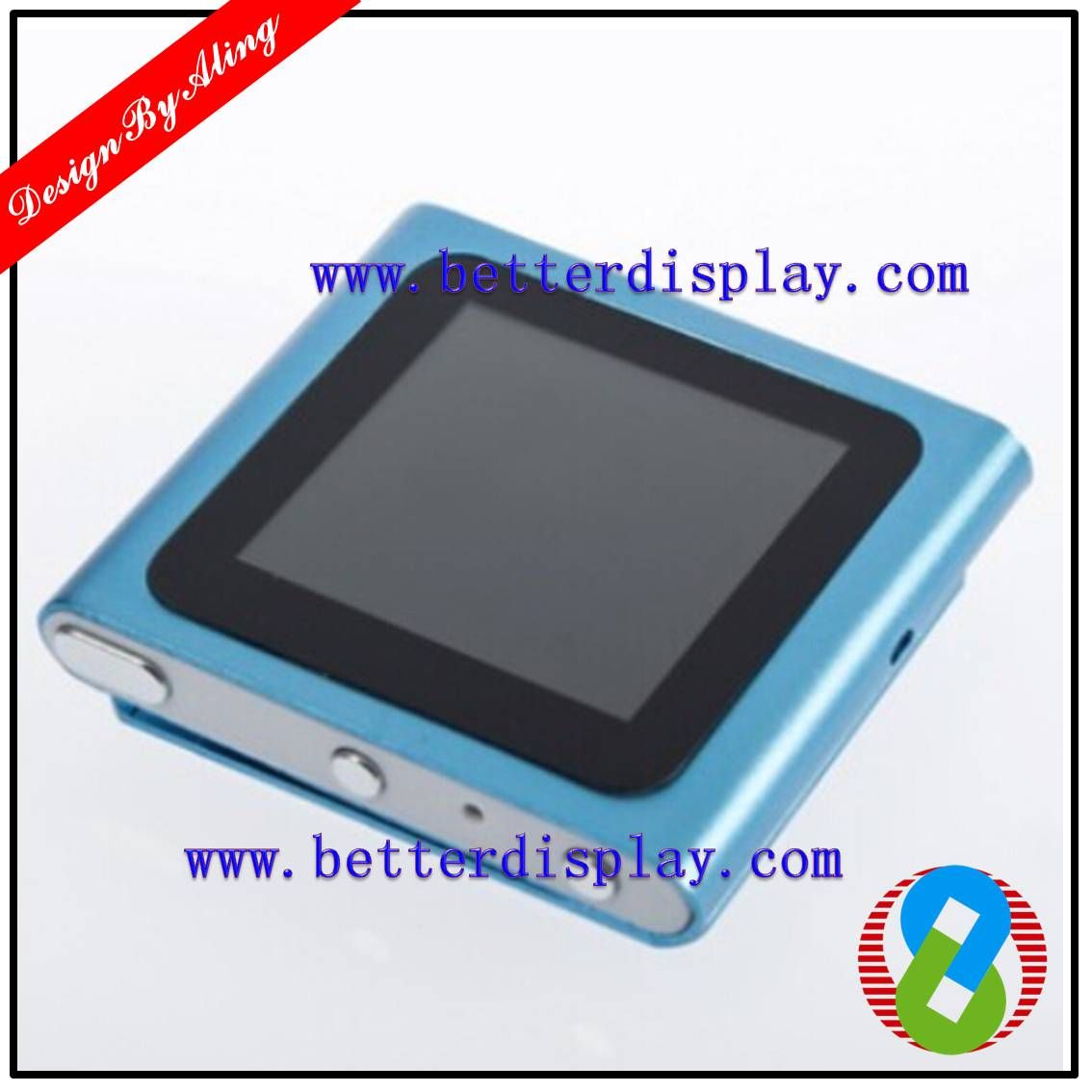

1.44 to 4.3 INCH LCD Panel LCD display for MP3 MP4 player mobile phone games player
1.44 / 1.77/ 2.0 / 2.2 / 2.3 / 2.39 / 2.4 / 2.6 / 2.8 / 3.0 / 3.2 / 3.5 / 4.3 inch TFT LCD module LCD Display LCD panel TFT LCD module Aling 455
Quick Details
Place of Origin: Guangdong China (Mainland)
Trade properties: factory
Brand Name: BETTER
Display Type: 1.44 to 4.3 inch TFT
Display mode: Transmissive
Resolution: 4.30" 480*(RGB)*272
Number of colors: 262K
Outline Dimensions: 105.4*67.1*4.05 mm
Driver IC: HX8257A or eqv.
Interface Type: RGB
Backlight: White 7 LED Series
Operating voltage: +2.6V~3.3V
Viewing Angle: 6 O'clock
Operating Temp: -20°C~+70°C
Storage Temp: -30°C~+80°C
-
-Packaging & Delive
Packaging Detail:Standard Export Package
Delivery Detail:15 - 30 days
Company Strength:
1> ISO9001 certificated Factory supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive price and Short lead-time
4> International Approvals, Military Specifications
5> In stock, samples lead-time: 1 -- 3 days.
6> Small MOQ
PAYMENT TERMS:
we accept TT, Western union
SHIPMENT:
We are via DHL/UPS/EMS/FedEx/TNT, HK POST
WARRANTY:
1 year warranty after sale the goods. Some technical issue can solved by wire.
Product overview
4.3 MTD color LCD module. Driven by the -4.3 MTD board and (430D07) screen. The way VIDEO signal input, PAL system and NTSC standard two, can realize the automatic conversion, OSD menu to adjust brightness, hue, contrast. The display terminal equipment in the field of this module are widely used in vehicle display, portable consumer electronics, security access control, visual building, visual telephone, industrial control instrument etc..
-
The drive plate
The drive plate appearance dimension (mm):85 (W) *53.5 (H) *8.7 (D)
PAL/NTSC system;
LCD Display
Said method :4.3 inch(AT430D07/LR430LC9601/AT043TN25V.2/HLY430ML506-07A/ PV-TFT043C01_L01/KD43G16-40NC-A3 )
Backlight mode:LED
Resolution : 480RGB(H)*272(V)
LCD screen appearance size (mm): 105.6(W)*67.3(H)*2.85(D)
LCD screen the effective display size (mm):95.04(W) *53.86(H)
Brightness:350cd/m2
Image display scale : 16:9
Debugging a brief description - TFT had been factory with special instruments are precision debugging and aging, testing, generally do not need to do the adjustment; if transport reasons, the replacement of components or with CCD adapter and cause color deviation, the image is not stable, can be adjusted according to the following tips.
- Before the adjustment, power supply, video signal is connected correctly, the external potentiometer on the central position; after adjustment should be several times, switching power supply and a video signal image examination.
Packaging, transportation and storage
1. Supply of packaging : If the customer fails to make the packaging, use our way of packing.
2. Transportation and storage and transportation process to avoid collision and rain or snow shower attack; it is strictly prohibited to the same database and storage of chemicals and the wet goods.
Matters needing attention
1,4.3 "TFT-LCD screen as glass, careful handling, so as to avoid rupture.
2,4.3 "TFT-LCD screen as glass, careful handling, so as to avoid rupture.
3,Numerical correctly connected power do not exceed the prescribed specification.
4,Connection cannot be reversed, then reverse easily burned out board, the impact on the quality of the products.
5,The drive plate for electronic products, the operation should pay attention to anti static, so as not to affect the product performance.
Standard product warranty
1,The drive plate is guaranteed for two years, except for man-made damage, after the insurance products of charge repair.
2,Liquid crystal screen a one-year warranty, except for man-made damage, repair products need to charge.
|
Materials |
Supply |
|
ITO glass |
CSG, Lai Bao, Samsung |
|
Liquid cystal |
The strength of Ke, Mo Ke |
|
IC |
Xichuang, wonders |
|
Backlight |
Baoming photoelectric |
TFTglass
T F T |
CMO
LG \CPT\HSD |
Capacity
|
TYPE |
Capacity |
2012 |
2013 |
|
LCD |
1000K/M |
2500K/M |
3000K/M |
|
COB |
400K/M |
400K/M |
500K/M |
|
COG(TFT&STN) |
2000K/M |
2000K/M |
4000K/M |
|
Touch Panel |
500K/M |
800K/M |
1000K/M |
