| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Commercial Use Air Source Heat Pump (Ckfxrs-70II) |
| Rated Heating Capacity: |
35kw |
| Suitable Environment: |
-25~52 |
| Heat Source: |
Air-source |
| Certification: |
SASO |
| Work Environment: |
Common Heat Pump |
| Heat Temperature: |
50-70??C |
| Application: |
Beauty Salons |
Product Description

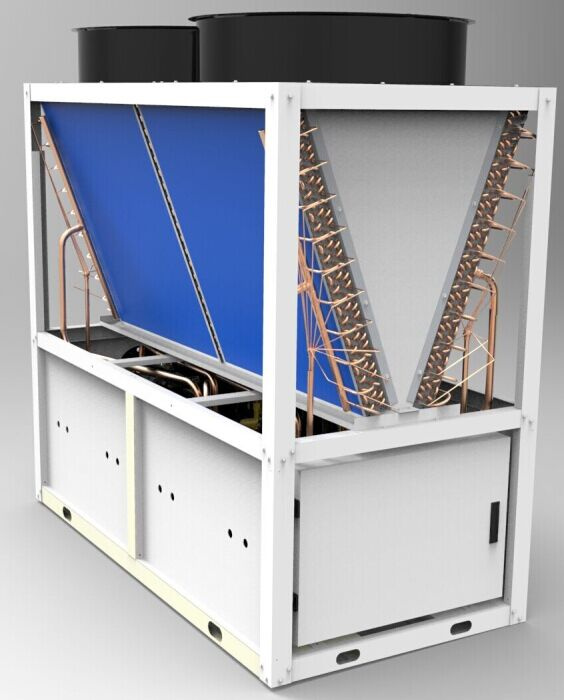

Commercial Use Air Source Heat Pump (CKFXRS-35II):
* Sanyo compressor & R410a refrigerant, OR Copeland compressor and R417a refrigerant;
* Stainless steel 304 for all fasteners, for side covers of evaporatorer;
* Preservative oil for copper tubes and all important part of cabinet;
* Chinese No.1 brand "ND" shell & tube heat exchanger;
* Japan "Saginomiya" or "Sanhua" electronic expansion valve;
* LCD controller;
* Delivery time: 20~25 days;
* Warranty time: 24 months after installation.
Air source heat pump:
1. Computer self-inspection and protection functions, low pollution operate
2. Evaporator applies clear water membrane, high absorbing ability, high efficiency, anti-corrosion
3. Convenient installation, small occupation, saves cost
4. Apply word famous compressor, 4-way valve, expansion value, the performance is higher and more stable.
Heat Pump,Air Source Heat Pump,Air to Water Heat Pump, Home Use Heat Pump,Commercial Use Heat Pump, Water Source Heat Pump,Water to Water Heat Pump, Ground Source Heat Pump,Geothermal Heat Pump,Domestic Use Heat Pump,Home Use Heat Pump,EVI Heat Pump,EVI System Air Source Heat Pump,Direct Air Source Heat Pump, Water Heater Heat Pump,Made In China Central Heating Heat Pump,Floor Warming Heat Pump.
A02H series ( commercial use circulating type) CN/D-RYF-CA02HCY01-130514 |
| CKFXRS-12 I | CKFXRS-19 I | CKFXRS-12 II | CKFXRS-19 II | CKFXRS-25II | CKFXRS-35 II | CKFXRS-50 II | CKFXRS-75 II | CKFXRS-105 II |
| CA02H03A | CA02H05A | CA02H03B | CA02H05B | CA02H07A | CA02H10A | CA02H14A | CA02H20A | CA02H30A |
| Rated heating capacity | KW | 12 | 19 | 12 | 19 | 25 | 35 | 50 | 75 | 105 |
| Rated power | KW | 3.0 | 4.8 | 3.0 | 4.8 | 6.3 | 8.8 | 12.6 | 18.9 | 27.0 |
| Rated current | A | 15.5 | 24.6 | 5.7 | 9.1 | 11.9 | 16.7 | 23.9 | 35.8 | 51.0 |
| Maximum power | KW | 4.0 | 6.4 | 4.0 | 6.4 | 8.4 | 11.8 | 16.8 | 25.2 | 35.9 |
| Maximum current | A | 20.7 | 32.7 | 7.6 | 12.0 | 15.8 | 22.1 | 31.6 | 47.4 | 67.5 |
| Performance coefficient (COP) | / | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 3.9 |
| Rated hot water output temperature | C | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Maximum hot water output temperature | C | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Rated hot water produce capacity | L/H | 257 | 408 | 257 | 408 | 515 | 760 | 1075 | 1612 | 2258 |
| Power supply | 1N 220V/50Hz | 3N 380V/50Hz |
| Alternative power supply | (1N 208-230V/60Hz); (1N 220-240V/50Hz); (3N 220-240V/50Hz) |
| ( 3N 208-230V/60Hz); (3N 380-415V/50Hz); (3N 440-460V/60Hz); (3N 380V/60Hz) |
| Compressor | Type | Fully closed scroll type |
| Start mode | Direct |
| Water side heat exchanger | Type | Shell and tube heat exchanger |
| Water flow | M3/h | 2.1 | 3.3 | 2.1 | 3.3 | 4.1 | 6.0 | 8.6 | 12.9 | 18.0 |
| Water pressure drop | KPa | ≤ 50 | ≤ 55 | ≤ 50 | ≤ 55 | ≤ 55 | ≤ 60 | ≤ 70 | ≤ 70 | ≤ 72 |
| Pipe size | DN | 20 | 25 | 20 | 25 | 25 | 32 | 32 | 50 | 50 |
| Protections | 1.High and low pressure protection, 2. Anti-freeze protection, 3. High temperature protection, 4. Overload protection, 5. Reverse of phase protection, Lack of phase protection, etc. |
| Refrigerant | Type | R410A |
| Weight(KG) | 1.7 | 2.7 | 1.7 | 2.7 | 4.2 | 2.7x2 | 4.2x2 | 2.7x4 | 2.8x6 |
| Noise | ≤ DB ( A ) | 55 | 63 | 55 | 63 | 68 | 68 | 68 | 69 | 70 |
| Unit dimensions | Length | MM | 700 | 820 | 700 | 820 | 820 | 1460 | 1460 | 2050 | 2641 |
| Width | MM | 700 | 820 | 700 | 820 | 820 | 910 | 910 | 1100 | 1000 |
| Height | MM | 870 | 1060 | 870 | 1060 | 1060 | 1430 | 1430 | 1935 | 1930 |
| Weight | KG | 100 | 160 | 100 | 160 | 190 | 299 | 400 | 650 | 855 |
| Note: 1. Hot water standard condition: use side initial water temperature 15 C , end water temperature 55 C ; dry-bulb temperature 20 C, wet bulb temperature 15 C . |
| 2. The above parameters are based on Refrigearnt R410A, for parameters based on other refrigerant please contact us. |
| 3. The above parameters may have some differences from the final product because of products updating, so above information is not the provision of any business contract. Please refer to final product label when buy, or refer to us for any information. Our company keeps the right to interpret. |
