| Prod Model: |
ZS-611 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Can Produce According To Buyers' Drawing: |
Fast Delivery |
| Engineers Available To Service Machinery: |
Competitive Price |
| Easy To Install: |
Easy Installation, Adjustment |
| High Efficiency And Energy Saving: |
High Quality |
| Type: |
Air Handling Unit |
| Air Tube Material: |
FRP |
| Corrosion Durability: |
General |
| Operating Voltage: |
230 VAC |
| Noise Level: |
Low |
| Application Fields: |
Aerospace |
| Mounting: |
Floor Standing |
| Lifetime: |
>20 years |
| Condition: |
New |
Product Description
Air chiller
1.High efficiency
2.Easy to install and maintain
3.Long service life
4.Needing no water pump and cooling tower
Central air conditioning air cooled chiller
Technical Parameters
Model No. of KARE | KRP-005W | KRP-08W | KRP-010W | KRP-012W | KRP-015W |
| Power supply | 3Φ-50Hz-380V | 3Φ-50Hz-380V | 3Φ-50Hz-380V | 3Φ-50Hz-380V | 3Φ-50Hz-380V |
Rated
Cooling Capacity | KW | 16.4 | 26.9 | 32.8 | 37.5 | 52 |
| Kcal/h | 14100 | 23100 | 28200 | 32200 | 44700 |
| Running current | A | 8.2 | 12.8 | 15.7 | 20.7 | 24.3 |
| Input Power | KW | 4.3 | 6.75 | 8.25 | 10.9 | 12.8 |
| Chilled water flow | m³/h | 2.8 | 4.6 | 5.6 | 6.4 | 8.9 |
| Cooling water flow | m³/h | 3.4 | 5.5 | 6.5 | 7.7 | 10.6 |
| Compressor | type | - | scroll | scroll | scroll | scroll | scroll |
| Power | KW | 3.75 | 6 | 7.5 | 9.4 | 11.3 |
| Water pump | Power | KW | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 |
| Refrigerant | type | - | R-22 | R-22 | R-22 | R-22 | R-22 |
| Capacity | Kg | 2.8 | 4.4 | 5.5 | 6.6 | 8.5 |
| Evaporator | type | - | shell&tube | shell&tube | shell&tube | shell&tube | shell&tube |
| Pipe dia. | mm | DN32 | DN40 | DN40 | DN40 | DN50 |
| Condensor | type | - | shell&tube | shell&tube | shell&tube | shell&tube | shell&tube |
| Pipe dia. | mm | DN32 | DN40 | DN40 | DN40 | DN50 |
| Demension | (L) | mm | 1000 | 1300 | 1300 | 1350 | 1700 |
| (W) | mm | 600 | 630 | 630 | 550 | 550 |
| (H) | mm | 1030 | 1300 | 1300 | 1100 | 1100 |
| Weight | Kg | 160 | 390 | 420 | 520 | 550 |
Features:

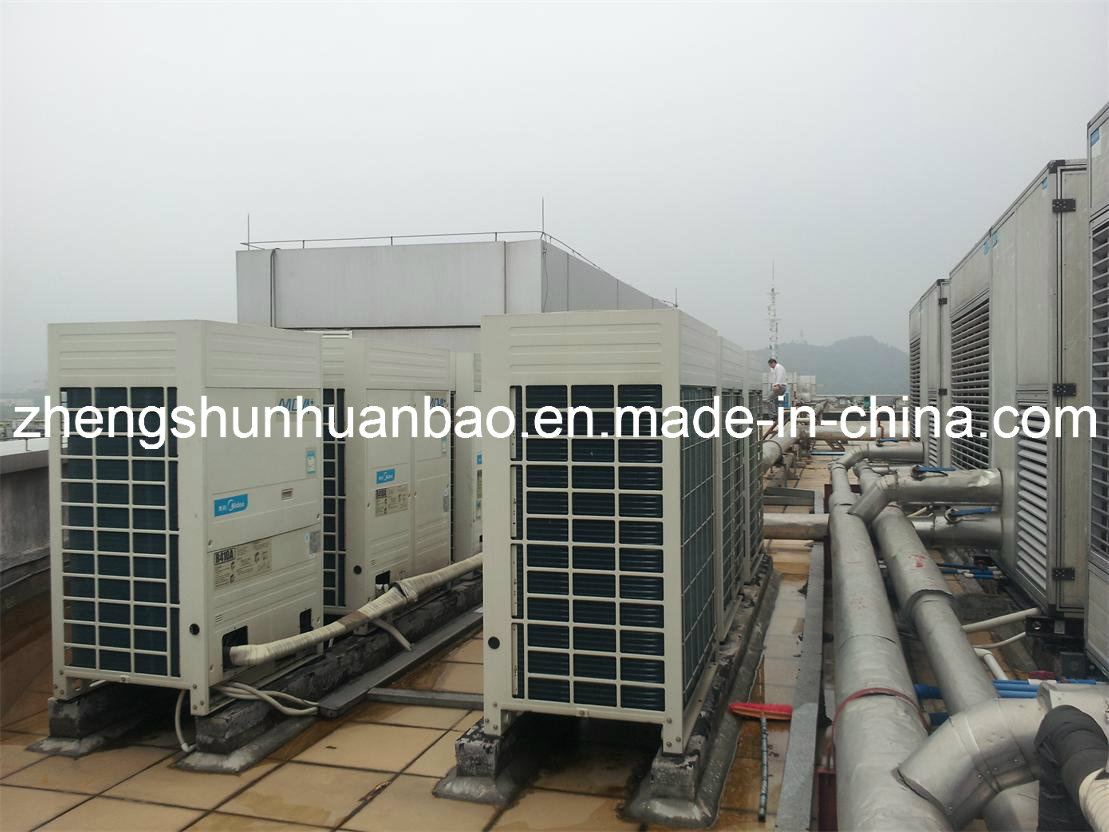

1.Easy to install and saving space:it needs no cooling pump or cooling tower which can save a lot installation and material cost. It can be set on roof, yard, balcony or other suitable open air positions but no need of machine room.
2.Multiple functions: one unit can offer both cooling and heat.
3.Modular design system: each refrigeration system is independent and can be standby of each other. One failure of the cooling system will not affect the other. And the light and small unit make the delivery much easier. The modular design can make it freely combined to meet various requirements.
Applications
The unit applicable scope includes: market, housing, office, commercial building, factory workshop, hotel, hospital and so on.
Standard cooling conditions: Ambient temp: 35°CDB/24°C WB; cooling water in/out temperature: 12°C/7°C.
Standard heating conditions: Ambient temp: 7°CDB/6°C WB; cooling water in/out temperature: 40°C/45°C.
Hengshui is a big base of FRP products in Hebei, China. We-Zhengshun are one leader manufacturer and exporter of FRP products, we are also in charge of installation engineering and maintenance service. With so many years technological know-how, we are in capacity of manufacturing according to special design request, aiming to supply high-quality products and good performance.
Our main products are FRP pipeline, cooling tower, gas scrubber, fan series, air-conditioning equipments, molding grating, water tank, anticorrosion project HVAC systerm. At the moment, we have FW-4000 computer-control enlace machine, extrusion machine, bending machine, rolling machine, cutter, patterns of cool tower, air-blower, chairs, pultruded, spraying, RTM equipment, etc. All kinds of quality control equipments are superior in all over the world.
Our factory has obtained ISO9001: 2000 Quality System Certificate, British Royal UKAS certificate, ISO14001 certificate, ISO1800 certificate, National Grade II Installation Certificate of Anti-corrosion, Mechanical and Electronic.
At the moment, Zhengshun products have been supplied to overseas especially Europe and Southeast Asia. On the request of domestic and international market, we constantly challenge with new technological development and provide high quality and reliable products and services.
