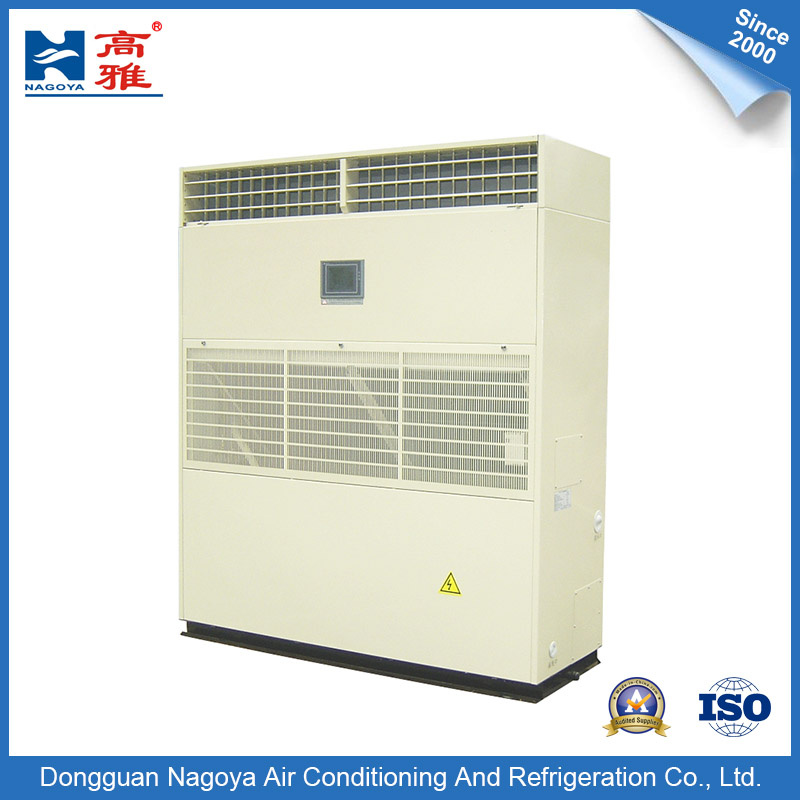

Air Cooled Constant Temperature Humidity Air Conditioner (25HP HAS64)
| Price: |
US $ 10583/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HAS64 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
65 Kw |
| Electric Heating Capacity: |
30 Kw |
| Humidifying Capacity: |
23 Kw |
| Rating Flow: |
14000 CMH |
| Size: |
1700*750*1830 mm |
| Weight: |
470 Kg |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
380/400 VAC |
| Mounting: |
Split |
| Certification: |
CCC |
| Condition: |
New |
Product Description
Air Cooled Constant Temperature Humidity Air Conditioner (25HP HAS64)
| Air Cooled Constant Temperature And Humidity Air Conditioner (Heat Recovery) |
| model | HA14 | HA23 | HA28 | HA42 | HA56 | HA64 | HA84 | HA113 | HA129 |
| performance | HAS14 | HAS23 | HAS28 | HAS42 | HAS56 | HAS64 | HAS84 | HAS113 | HAS129 |
| unit property | cooling capacity | kW | 13.9 | 22.5 | 27.7 | 41.6 | 56.2 | 64.4 | 84.4 | 112.5 | 128.8 |
| electric heating capacity | kW | 8 | 9 | 12 | 18 | 24 | 30 | 36 | 54 | 72 |
| humidifying capacity | kg/h | 8 | 8 | 8 | 15 | 15 | 23 | 23 | 32 | 32 |
| rating flow | CMH | 2800 | 4500 | 5600 | 8600 | 11700 | 14000 | 17000 | 23000 | 28000 |
| external static pressure | Pa | 100 | 150 | 150 | 200 | 250 | 300 | 350 | 400 | 400 |
| power supply | 3PH 380V 50Hz |
| maximum operating power | kW | 15.2 | 20.7 | 27.1 | 40.5 | 53.4 | 63.6 | 81.2 | 114.4 | 142.2 |
| maximum running current | A | 28.0 | 36.1 | 50.2 | 74.7 | 93.7 | 110.0 | 141.9 | 198.8 | 244.1 |
| noise | dB (A) | ≤60 | ≤62 | ≤62 | ≤65 | ≤68 | ≤70 | ≤70 | ≤75 | ≤76 |
| temperature and humidify range | 18-28ºC±1ºC,50-70%±10% |
| connecting pipe | liquid pipes | Φ12.7 | Φ16 | Φ12.7 | Φ12.7 | Φ16 | Φ16 | Φ16 | Φ16 | Φ16 |
| gas pipes | Φ19 | Φ22 | Φ19 | Φ19 | Φ25 | Φ28 | Φ25 | Φ25 | Φ28 |
| indoor unit | evaporater | type | high efficient copper pipe alumininum fin expansion |
| throttling gear | external balanced thermal expansion valve |
| centrifugal fan | type | direct connection type | belt driven centrifugal |
| power(kW) | 0.45 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| air filters | nylon nets |
| electrode humidifier | humidifying power | 6.1 | 6.1 | 6.1 | 11.4 | 11.4 | 17.5 | 17.5 | 24.3 | 24.3 |
| dia. Of inlet pipe | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| dimension | width (mm) | 800 | 1200 | 1200 | 1700 | 1700 | 1800 | 2150 | 2150 | 2560 |
| depth (mm) | 550 | 600 | 600 | 600 | 750 | 750 | 1150 | 1250 | 1300 |
| height (mm) | 1770 | 1730 | 1730 | 1780 | 1830 | 1830 | 1810 | 1930 | 1990 |
| net weight (about) | kg | 145 | 230 | 270 | 340 | 460 | 470 | 560 | 830 | 1130 |
| outdoor unit | model | KA-5U | KA-8U | KA-5U*2 | KA-5U*3 | KA-10U*2 | KA-12.5U*2 | KA-10U*3 | KA-10U*4 | KA-12.5U*4 |
| compressor | type | full closed scroll |
| power (HP)*qua. | 5*1 | 8*1 | 5*2 | 5*3 | 10*2 | 12.5*2 | 10*3 | 10*4 | 12.5*4 |
| operating power (kW) | 4.3 | 6.5 | 8.6 | 12.9 | 16.2 | 18.3 | 24.2 | 32.3 | 36.5 |
| axial flow fan | air flow (CMH) | 6200 | 10400 | 6200*2 | 6200*3 | 15000*2 | 15000*2 | 15000*3 | 15000*4 | 15000*4 |
| dimension | width (mm) | 960 | 930 | 960*2 | 960*3 | 1000*2 | 1000*2 | 1000*3 | 1000*4 | 1000*4 |
| depth (mm) | 350 | 790 | 350*2 | 350*3 | 885*2 | 885*2 | 885*3 | 885*4 | 885*4 |
| height (mm) | 1260 | 930 | 1260*2 | 1260*3 | 955*2 | 1138*2 | 955*3 | 955*4 | 1138*4 |
| net weight (about) | kg | 120 | 180 | 120*2 | 120*3 | 220*2 | 240*2 | 220*3 | 220*4 | 240*4 |
| protection device | high & low pressure protection, overload current protection, phase reversion & lack protection, start relay protection, oil heater, overheat protection, air pressure difference protection, electric heat temp.too high protection, overload humidified current protection, external interlock protection,f use etc. |
| Note: 1. The cooling capacity is measured in: air inlet temperature: 23ºC/17ºC, environment temperature: 35ºC. |
| 2. The perfomance of using the new environmental protection refrigerant R407C unit and using ordinary refrigerant R22 unit is similar. |
| 3. When the environment humidify is 45-65%, using heat recovery unit save more energy than using the conventional models. |
In 1977, NAGOYA AIR CONDITIONG AND REFRIGERATION Co., Ltd. Was founded in Hong Kong, and in 1991, it set up a plant in Dongguan, Guangdong. The Company has developed into a professional and modern manufacturer of central air-conditioning and supporting equipments, with an annual capacity of more than 8000 units, and the products are well sold in China and also exported to oversea market.
NAGOYA is a joint venture incorporated by shareholders from Canada, Hong Kong and Taiwan, the Company has been certified to ISO9001 international quality certification. Basing on ISO9001 quality assurance system, NAGOYA has established a full set of management system to ensure product quality and service quality, where each department coordinates each other under clearer division of labor and makes joint efforts to respond the needs of customers more timely, and provides more effective service, thus improving its competiveness continuously. From view of NAGOYA, current market competition depends on talent competition, and the Company implements talent strategy of "people-oriented, merit-based" and pays more attentions to strength, rather than only academic background. Under people-oriented corporate culture, NAGOYA has created a vibrant, united, progressive, challenging and innovative team, and ensures its products are characterized by stable performance, excellent quality, and first-class after-sales service. Therefore, "NAGOYA" products have been rapidly acceptable and highly praised by all sectors, as the preferred brand by many Chinese and foreign enterprises.
Do business in a thoroughgoing manner; Utilize resource from the society, and then contribute to the society, thus to develop and grow up in a sound and responsible manner. NAGOYA is involved in innovation and development of new products to meet the needs of the society, and this is the development history of the Company over decades of years.
The Company has always adhered to the spirit of "quality-first, customer-centered", conducted business in good faith, and made every effort to provide high quality products as well as perfect pre-sale in-sale and after-sales service, thus only reaching the acme of perfection and repaying customers' support.
