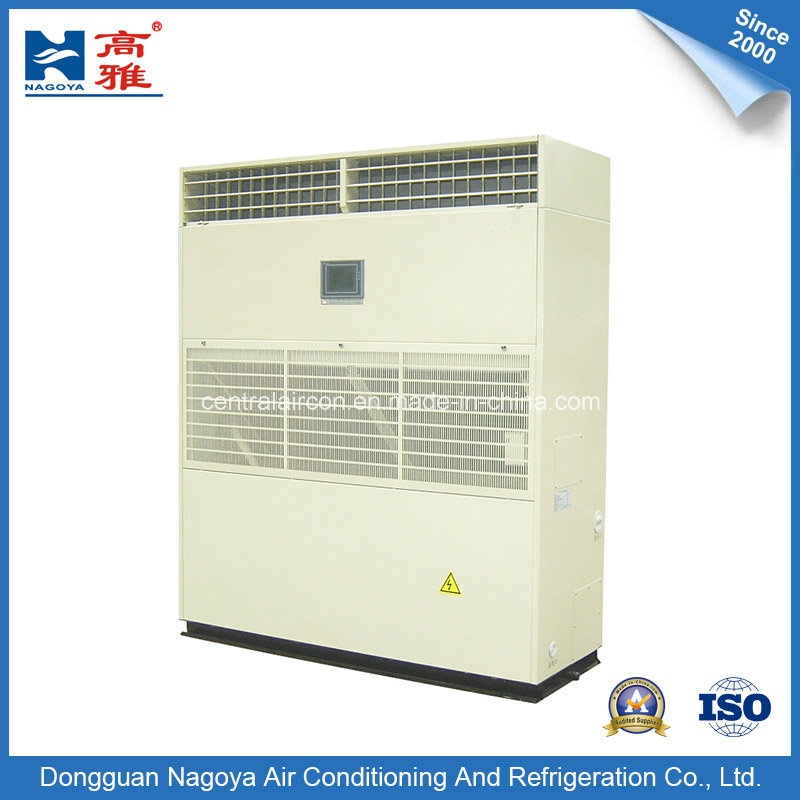

Air Cooled Constant Temperature Humidity Air Conditioner (14-129kw)
| Price: |
US $ 3807/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
HAS Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
14 Kw |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
380/400 VAC |
| Mounting: |
Split |
| Certification: |
SGS |
| Condition: |
New |
Product Description
Nagoya HAS Series 14-129KW Industrial Commercial Air Cooled With Heat Recovery Constant Temperature And Humidity Air Conditioner Conditioning
| Air Cooled Constant Temperature/Humidity Air Conditioner (Heat Recovery) |
| model | HA14 | HA23 | HA28 | HA42 | HA56 | HA64 | HA84 | HA113 | HA129 |
| performance | HAS14 | HAS23 | HAS28 | HAS42 | HAS56 | HAS64 | HAS84 | HAS113 | HAS129 |
| unit property | cooling capacity | kW | 13.9 | 22.5 | 27.7 | 41.6 | 56.2 | 64.4 | 84.4 | 112.5 | 128.8 |
| electric heating capacity | kW | 8 | 9 | 12 | 18 | 24 | 30 | 36 | 54 | 72 |
| humidifying capacity | kg/h | 8 | 8 | 8 | 15 | 15 | 23 | 23 | 32 | 32 |
| rating flow | CMH | 2800 | 4500 | 5600 | 8600 | 11700 | 14000 | 17000 | 23000 | 28000 |
| external static pressure | Pa | 100 | 150 | 150 | 200 | 250 | 300 | 350 | 400 | 400 |
| power supply | 3PH 380V 50Hz |
| maximum operating power | kW | 15.2 | 20.7 | 27.1 | 40.5 | 53.4 | 63.6 | 81.2 | 114.4 | 142.2 |
| maximum running current | A | 28.0 | 36.1 | 50.2 | 74.7 | 93.7 | 110.0 | 141.9 | 198.8 | 244.1 |
| noise | dB (A) | ≤60 | ≤62 | ≤62 | ≤65 | ≤68 | ≤70 | ≤70 | ≤75 | ≤76 |
| temperature and humidify range | 18-28ºC±1ºC,50-70%±10% |
| connecting pipe | liquid pipes | Φ12.7 | Φ16 | Φ12.7 | Φ12.7 | Φ16 | Φ16 | Φ16 | Φ16 | Φ16 |
| gas pipes | Φ19 | Φ22 | Φ19 | Φ19 | Φ25 | Φ28 | Φ25 | Φ25 | Φ28 |
| indoor unit | evaporater | type | high efficient copper pipe alumininum fin expansion |
| throttling gear | external balanced thermal expansion valve |
| centrifugal fan | type | direct connection type | belt driven centrifugal |
| power(kW) | 0.45 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| air filters | nylon nets |
| electrode humidifier | humidifying power | 6.1 | 6.1 | 6.1 | 11.4 | 11.4 | 17.5 | 17.5 | 24.3 | 24.3 |
| dia. Of inlet pipe | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| dimension | width (mm) | 800 | 1200 | 1200 | 1700 | 1700 | 1800 | 2150 | 2150 | 2560 |
| depth (mm) | 550 | 600 | 600 | 600 | 750 | 750 | 1150 | 1250 | 1300 |
| height (mm) | 1770 | 1730 | 1730 | 1780 | 1830 | 1830 | 1810 | 1930 | 1990 |
| net weight (about) | kg | 145 | 230 | 270 | 340 | 460 | 470 | 560 | 830 | 1130 |
| outdoor unit | model | KA-5U | KA-8U | KA-5U*2 | KA-5U*3 | KA-10U*2 | KA-12.5U*2 | KA-10U*3 | KA-10U*4 | KA-12.5U*4 |
| compressor | type | full closed scroll |
| power (HP)*qua. | 5*1 | 8*1 | 5*2 | 5*3 | 10*2 | 12.5*2 | 10*3 | 10*4 | 12.5*4 |
| operating power (kW) | 4.3 | 6.5 | 8.6 | 12.9 | 16.2 | 18.3 | 24.2 | 32.3 | 36.5 |
| axial flow fan | air flow (CMH) | 6200 | 10400 | 6200*2 | 6200*3 | 15000*2 | 15000*2 | 15000*3 | 15000*4 | 15000*4 |
| dimension | width (mm) | 960 | 930 | 960*2 | 960*3 | 1000*2 | 1000*2 | 1000*3 | 1000*4 | 1000*4 |
| depth (mm) | 350 | 790 | 350*2 | 350*3 | 885*2 | 885*2 | 885*3 | 885*4 | 885*4 |
| height (mm) | 1260 | 930 | 1260*2 | 1260*3 | 955*2 | 1138*2 | 955*3 | 955*4 | 1138*4 |
| net weight (about) | kg | 120 | 180 | 120*2 | 120*3 | 220*2 | 240*2 | 220*3 | 220*4 | 240*4 |
| protection device | high & low pressure protection, overload current protection, phase reversion & lack protection, start relay protection, oil heater, overheat protection, air pressure difference protection, electric heat temp.too high protection, overload humidified current protection, external interlock protection,f use etc. |
| Note: 1. The cooling capacity is measured in: air inlet temperature: 23ºC/17ºC, environment temperature: 35ºC. |
| 2. The perfomance of using the new environmental protection refrigerant R407C unit and using ordinary refrigerant R22 unit is similar. |
| 3. When the environment humidify is 45-65%, using heat recovery unit save more energy than using the conventional models. |
