| Prod Model: |
HAS14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
14 Kw |
| Electric Heating Capacity: |
8 Kw |
| Humidifying Capacity: |
8 Kg/H |
| Rating Flow: |
2800 CMH |
| Size: |
800*550*1770mm |
| Weight: |
145 Kg |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
380/400 VAC |
| Mounting: |
Floor Standing |
| Certification: |
CCC |
| Condition: |
New |
Product Description
Nagoya 5HP HAs14 Air Cooled Constant Temperature And Humidity Central Air Conditioner With Heat Recovery For Electronic Processing FAQ
What is your product range?
Main products: water chiller, central air conditioner and related refrigeration equipment.
Are you manufacturer?
Yes, we have own factory with 30 years experience of air conditioner and refrigeration equipment.
How can we pay for?
1. 30% advanced payment, 70% balance payment before shipment normally, and it is negotiable.
2. We accept T/T, Western Union, L/C, and PayPal etc.
3. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
How many days will the products are finished?
1. 10-15 days for small quantity making (like 1-3sets).
2. 20-30 days about the mass products production time, it is up to the quantity.
What are the methods of shipping and price term?
1. We quote FOB Shenzhen normally after clients' enquiry.
2. And we quote CFR and CIF term once got client's details.
3. As it is big volume and heavy items, exporting shipment is by Sea normally.
What competitive advantages do you have?
1. Competitive price
2. Good after-sale service
3. Fast delivery time
4. High quality control
5. Material is made of 100% recycle material
6. Customized technical request, size, design and packing is welcomed
7. Provide one-step service from design, produce to quality control, sale and shipping
what can we benefit from you?
1. We provide OEM and ODM service
2. 100% high quality for every customer
3. Good after-sale service for customer
4. Wholesale price for regular customer
what do you have to ensure that what you said is right?
1. Full set of equipment ensure each process of product be finished. Such as punching machine, bending machine, machining machine and welding machine. And also coating, assembling, testing and packing.
2. First class of salesman to service for every client's demands.
3. Excellent R&D team waiting for clients, if you provide information and request.
4. Highly efficient management systems and quality assurance departments.
What information should i let you know once i want to make an inquiry?
1. The items name such as water chiller, air conditioner etc.
2. What's the use for? Like: for cool down air or machines?
3. Where the equipment should be used? Like: Country and city, factory or others?
4. What about the temperature and humidity request?
5. How many square meter of the space?
6. How many sets you need?
7. What's your seaport or items destination?
| Air Cooled Constant Temperature And Humidity Air Conditioner (Heat Recovery) |
| model | HA14 | HA23 | HA28 | HA42 | HA56 | HA64 | HA84 | HA113 | HA129 |
| performance | HAS14 | HAS23 | HAS28 | HAS42 | HAS56 | HAS64 | HAS84 | HAS113 | HAS129 |
| unit property | cooling capacity | kW | 13.9 | 22.5 | 27.7 | 41.6 | 56.2 | 64.4 | 84.4 | 112.5 | 128.8 |
| electric heating capacity | kW | 8 | 9 | 12 | 18 | 24 | 30 | 36 | 54 | 72 |
| humidifying capacity | kg/h | 8 | 8 | 8 | 15 | 15 | 23 | 23 | 32 | 32 |
| rating flow | CMH | 2800 | 4500 | 5600 | 8600 | 11700 | 14000 | 17000 | 23000 | 28000 |
| external static pressure | Pa | 100 | 150 | 150 | 200 | 250 | 300 | 350 | 400 | 400 |
| power supply | 3PH 380V 50Hz |
| maximum operating power | kW | 15.2 | 20.7 | 27.1 | 40.5 | 53.4 | 63.6 | 81.2 | 114.4 | 142.2 |
| maximum running current | A | 28.0 | 36.1 | 50.2 | 74.7 | 93.7 | 110.0 | 141.9 | 198.8 | 244.1 |
| noise | dB (A) | ≤60 | ≤62 | ≤62 | ≤65 | ≤68 | ≤70 | ≤70 | ≤75 | ≤76 |
| temperature and humidify range | 18-28ºC±1ºC,50-70%±10% |
| connecting pipe | liquid pipes | Φ12.7 | Φ16 | Φ12.7 | Φ12.7 | Φ16 | Φ16 | Φ16 | Φ16 | Φ16 |
| gas pipes | Φ19 | Φ22 | Φ19 | Φ19 | Φ25 | Φ28 | Φ25 | Φ25 | Φ28 |

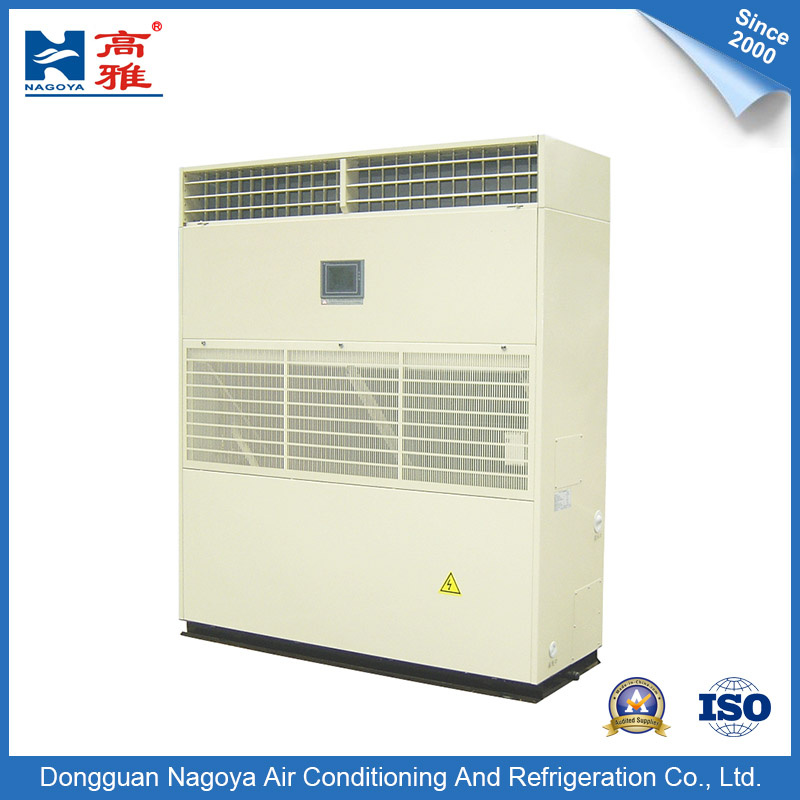

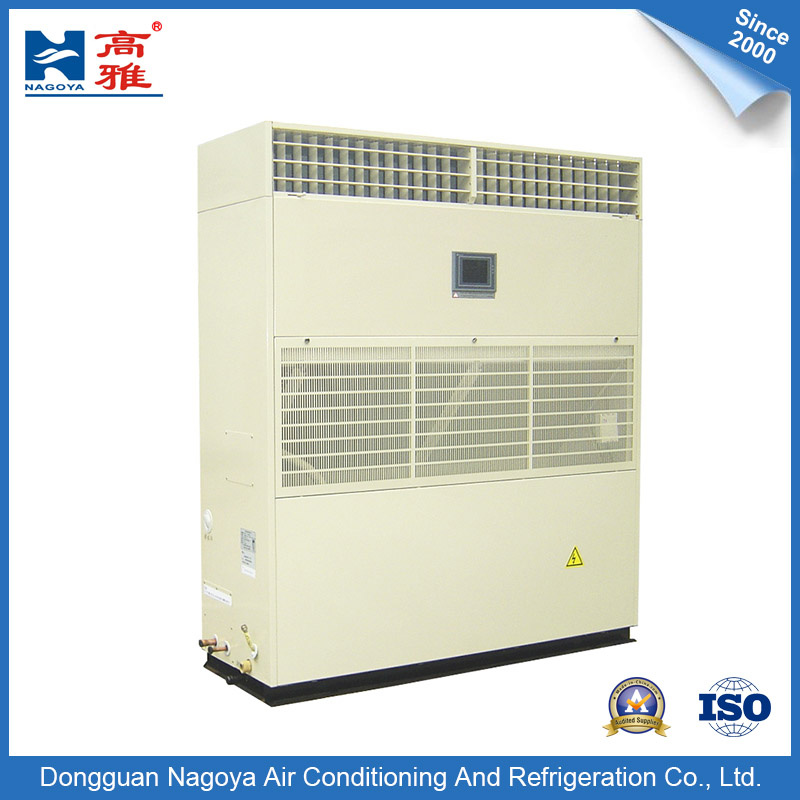

| indoor unit | evaporater | type | high efficient copper pipe alumininum fin expansion |
| throttling gear | external balanced thermal expansion valve |
| centrifugal fan | type | direct connection type | belt driven centrifugal |
| power(kW) | 0.45 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| air filters | nylon nets |
| electrode humidifier | humidifying power | 6.1 | 6.1 | 6.1 | 11.4 | 11.4 | 17.5 | 17.5 | 24.3 | 24.3 |
| dia. Of inlet pipe | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| dimension | width (mm) | 800 | 1200 | 1200 | 1700 | 1700 | 1800 | 2150 | 2150 | 2560 |
| depth (mm) | 550 | 600 | 600 | 600 | 750 | 750 | 1150 | 1250 | 1300 |
| height (mm) | 1770 | 1730 | 1730 | 1780 | 1830 | 1830 | 1810 | 1930 | 1990 |
| net weight (about) | kg | 145 | 230 | 270 | 340 | 460 | 470 | 560 | 830 | 1130 |

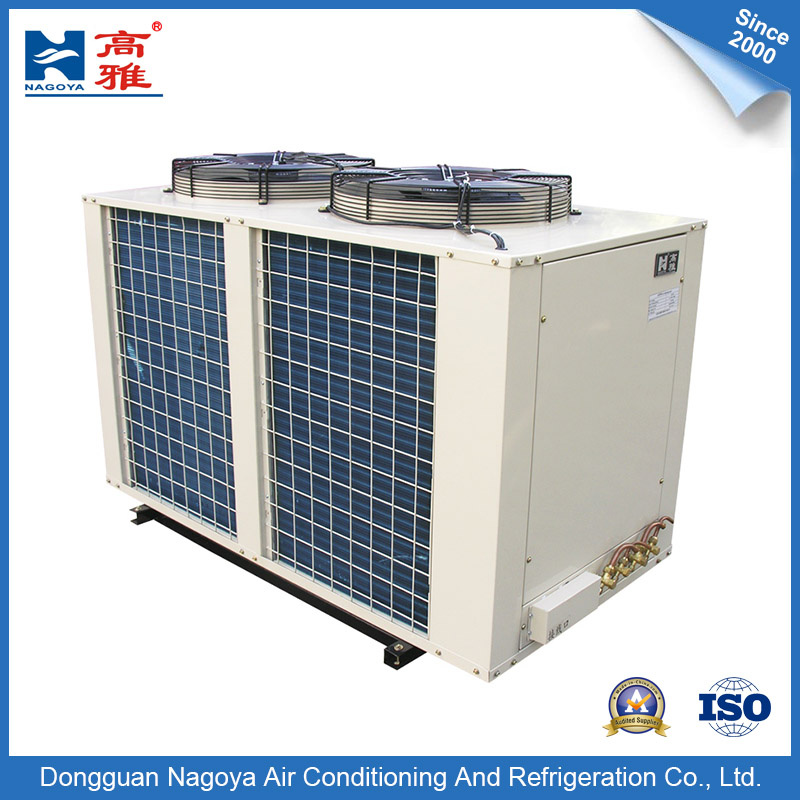

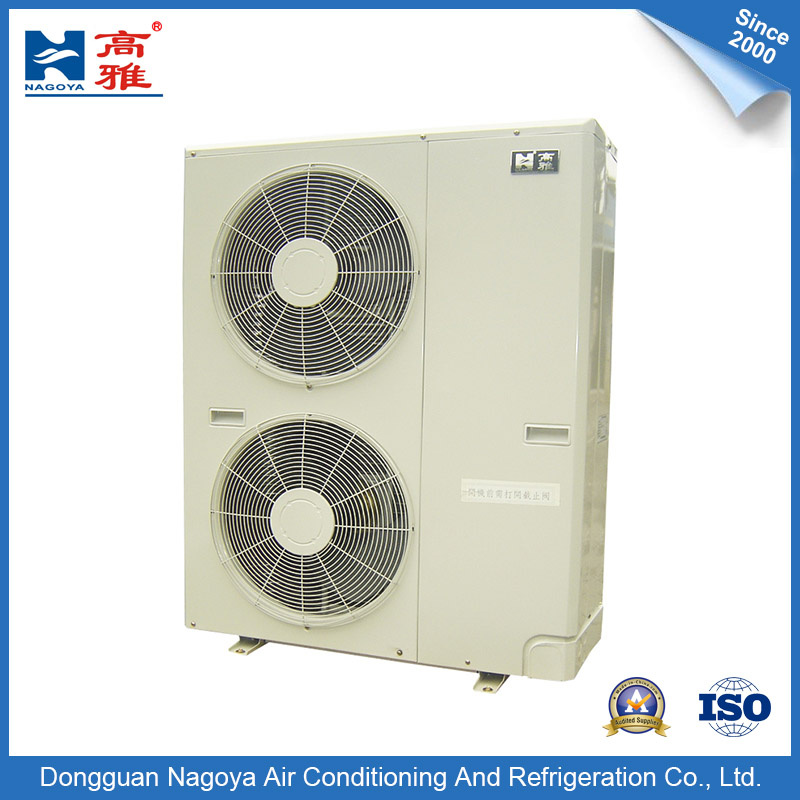

| outdoor unit | model | KA-5U | KA-8U | KA-5U*2 | KA-5U*3 | KA-10U*2 | KA-12.5U*2 | KA-10U*3 | KA-10U*4 | KA-12.5U*4 |
| compressor | type | full closed scroll |
| power (HP)*qua. | 5*1 | 8*1 | 5*2 | 5*3 | 10*2 | 12.5*2 | 10*3 | 10*4 | 12.5*4 |
| operating power (kW) | 4.3 | 6.5 | 8.6 | 12.9 | 16.2 | 18.3 | 24.2 | 32.3 | 36.5 |
| axial flow fan | air flow (CMH) | 6200 | 10400 | 6200*2 | 6200*3 | 15000*2 | 15000*2 | 15000*3 | 15000*4 | 15000*4 |
| dimension | width (mm) | 960 | 930 | 960*2 | 960*3 | 1000*2 | 1000*2 | 1000*3 | 1000*4 | 1000*4 |
| depth (mm) | 350 | 790 | 350*2 | 350*3 | 885*2 | 885*2 | 885*3 | 885*4 | 885*4 |
| height (mm) | 1260 | 930 | 1260*2 | 1260*3 | 955*2 | 1138*2 | 955*3 | 955*4 | 1138*4 |
| net weight (about) | kg | 120 | 180 | 120*2 | 120*3 | 220*2 | 240*2 | 220*3 | 220*4 | 240*4 |
| protection device | high & low pressure protection, overload current protection, phase reversion & lack protection, start relay protection, oil heater, overheat protection, air pressure difference protection, electric heat temp.too high protection, overload humidified current protection, external interlock protection,f use etc. |
| Note: 1. The cooling capacity is measured in: air inlet temperature: 23ºC/17ºC, environment temperature: 35ºC. |
| 2. The perfomance of using the new environmental protection refrigerant R407C unit and using ordinary refrigerant R22 unit is similar. |
| 3. When the environment humidify is 45-65%, using heat recovery unit save more energy than using the conventional models. |
