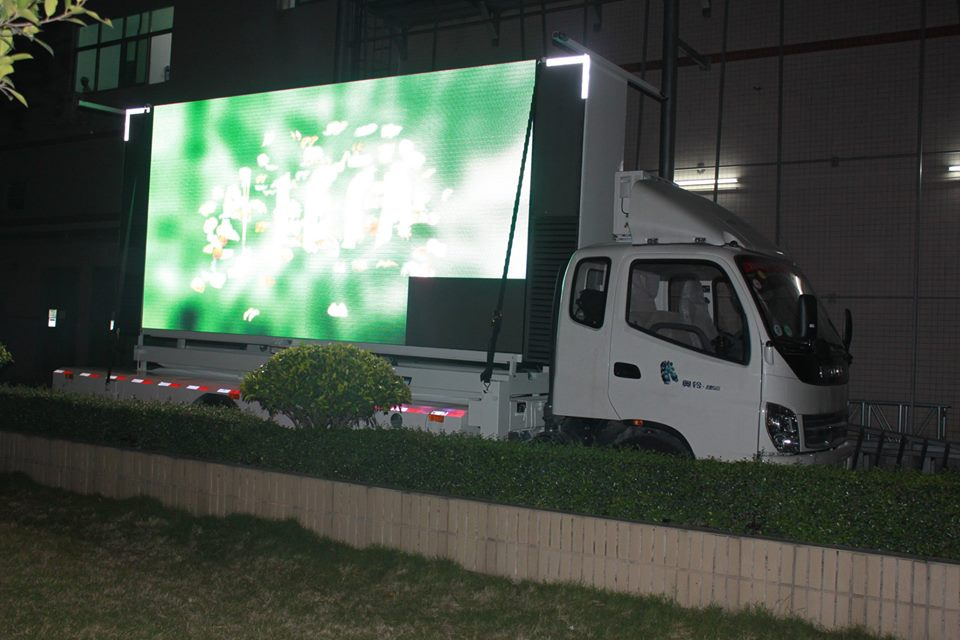

Advertising Mobile Car LED Display
| Price: |
US $ 100-2000/Square Meter |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
P8 |
| Brightness: |
High Brightness, HD |
| Factory: |
OEM, ODM |
| Cabinet Material: |
Die-Casting Cabinets |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Certification: |
CCC |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15625 |
| Application: |
All, Concerts, Shows and Event, Airport |
Product Description
Features:
1. Wide application field: You can let your LED display travel around the city. Many audiences will see it and get totally impressed. It makes your advertising really effient!2. Low weight: Die-casting cabinets, only 8.5KG/pc. It won't bring too much load to your truck.3. Quality LED chip: Supplied by high strictly selected LED chip to ensure the long lifetime and high brightness of our LED screen system4. High brightness so even in direct, full-on sunlight, we can still view clear vivid image on the LED display; 7000 nits brightness for outdoor full color, brighness can be lowed when used indoors so it won't bring visual pollution5. Slow color and brightness decreasing. We select very good LED lamp so it can maintain vivid color and high brightness even the screen worked over 5 years.6. Easy Installation, we have fast locks on the sides of LED cabinet, it is easy to install and the surface is very smooth. The gap can be made to the minimum. | P8 SMD Outdoor LED Display Datasheet | |
| |
| Items | Parameter | |
| Product Model | P8 Full Color Led Module | |
| Module size | 256mm*128mm | |
| Pixel pitch | 8mm | |
| Pixel density | 15625dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Module resolution | 32dots(W)*16dots | |
| Module maximum power consumption | 25W | |
| Module Thickness | 25CM | |
| Module Weight | 0.55kg | |
| Driving method | Constant Current Driving | |
| Scanning method | 1/4 scan | |
| Interface | HUB75 | |
| Brightness | ≥6000-6200cd/m2 | |
| Optimal viewing distance | 8M~150M | |
| Optimal viewing angle | 120°(W) 120°(H) | |
| RHWorking temperature | (Work :-20°C~+60°C) | |
| System operating humility | 10%-95% | |
| Operating Voltage | AC220V±10% | |
| Average power consumption | 380W/H | |
| Maximum power consumption | ≤760W/m2 | |
| Electric current | ≤20mA (single LED) | |
| Operating system | Win XP, Win 7, Win 8, Win 8.1, Win10 | |
| Control model | Synchronization with PC | |
| Driving device | Constant Current Driving | |
| Refresh rate | ≥1600HZ | |
| Grey scale | 14 bits | |
| MTBF | ≥9000hours | |
| Power switch | Automatic Switch | |
| Display Mode | 800*600/1024*768/1280*900 | |
Why Chengxinguang(CXG) LED Display 1. Competitive Price We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "Chengxinguang", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers. 2. Close Relationships with Raw Material ProvidersFor our bosses have been in the key positions at the top led display factory since 2004, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products. 3. Quality ControlFrom raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
Chengxinguang Technology Co., Ltd (Brand: ACE LED) is located in Shenzhen, China, a major production base of global LED display screen industry. Chengxinguang is a professional LED display screen manufacturer. It provides professional and customized solutions on full color LED display screen, rental LED display, outdoor electronic LED signs, indoor LED displays, LED curtain display, moving message boards, variable message sign and video boards etc.
Chengxinguang is committed to our customers and partners by providing fast and genuine service, quality and value. Now we have established business relationship with customers in Asia, America and European countries etc, and we will continue to devote ourselves to providing customers with excellent performance products, efficient and effective services around the world.
Chengxinguang uses international high-end automated production equipment and has professional management, R&D, production, quality and service teams. Besides, we also have very strong and strategic relationship with the raw material providers. All of these factors have ensured the stability and quality in our LED products, and our competitive price.
Contact us today and learn why so many customers world-wide choose Chengxinguang as their partner for LED displays.
