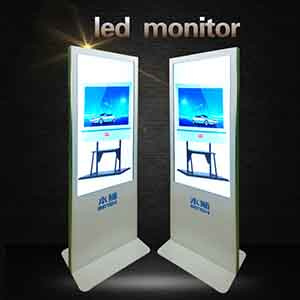

| Prod Model: |
advertising display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Can Be Yours |
| Logo: |
Can Be Yours |
| Video: |
Support |
| TXT Scroll: |
Support |
| Picture Music: |
Support |
| Function: |
Automatic Switch Machine |
| Application: |
Indoor AD Player |
| Screen Size: |
40-50 Inches |
| Installation: |
Vertical |
| Type: |
Standalone Version AD Player |
| Touch Screen Type: |
Infrared |
| Screen Technology: |
LED |
| Interface Type: |
USB |
| Remote Control: |
With Remote Control |
| OS: |
Android |
| Customized: |
Customized |
Product Description
Guangzhou Bems Trading Co., Ltd. was founded in 2012. We focus on designing, researching and developing, manufacturing and selling advertising player,digital signage,all in one pc,touch screen kiosk,bus monitor,TV,LCD/LED monitor and so on. We have more than 1000pcs of self-developed designs and molds for you to choose from. We release at least 10 new products monthly to meet the latest market trends. With our rich experience and considerate services, we have been recognized as a reliable supplier for many international buyers. We operate our in-house facilities to work on your OEM/ODM projects, enabling us to meet your customized requirements. With an annual production capacity of 10,000,00pcs, we can fill your bulk orders with ease.
To ensure quality, we have more than 10 QC members to carry out strict inspection at each stage: incoming inspection (IQC), in-process inspection (IPQC) and final inspection (FQC).
We have also introduced machines which allow us to make products that meet international standards. Our products sell well in domestic and international markets, such as the USA, and are favorably appraised by clients. To benefit from our strong OEM/ODM capabilities and considerate services, contact us today. We will sincerely create and share success with all clients.
USB/SD type:
Integrated single advertising system, embedded with HD decoder chip, support playing HD video, up to 1080p.
Support to rotate video program.
Support set the on/off automatically(up to 5 time intervals).
Support to split screen into several smaller window, playing different advertisement.
Support to continue displaying when suffered from power failure.
Support to display station caption on the corner of screen.
Support to copy and delete media files on USB storage.
Support to generate working records automatically.
Support to set different sound volume during different time period.
Support and play med on USB memory, plug-and-play, easy to change advertisements.
Support most video and audio formats: MPEG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,WMV,RM,RMVB etc.
Support various kinds of play mode: single cycle, list cycle and all repeating.
Support picture move-transition, scaling-transition, slide-transition.
Support stereo sound system as well as mono sound.
Support multiple OSD language, Chinese, English, French, Spanish etc.
Support scrolling marquee displaying.
Support perpetual calendar displaying.
Android/wifi type:
Integrated network advertising system, embedded with HD decoder chip, support playing HD video, up to 1080P.
Adopting browser/server mode, support to build up secondary server to reduce network delaying, thus enhance the stability of the whole system.
Support classified user management, scrolling marquee, and programs can be updated through USB memory.
Support update programs from distance, and manage terminal setting, program editing.
Support to split screen into several smaller window, playing different advertisement.
Support inserting and timed displaying, cycle playing, playing time can be regulated to any second through remote control, all programs can be played at specified time and order.
Support to monitor terminal-machine's working condition, disk space, also can set the time of power on/off from long distance.
Support updating programs in small screens, texts and pictures can be combined displaying.
Support live broadcasting, obtaining information from internet, such as whether reports, news etc.
Support to manage playing reports and daily records, serving users to get efficient data.
Build-up with Ethernet module, support to connect to internet through wire/wifi/3G.
Support plug-and-play, anti-virus, anti-crash onboard flash memory, fast booting.
Support to resume updating programs from breakpoint and can start download programs according schedule.
| O/S: | Android 4.4 |
| Chipset: | AMLOGIC S802 ARM Cortex-A9 2.0GHZ Mali-450 3D |
| GPU: | Octo Core Mali-450 GPU@600MHz |
| Memory: | DDR3, 2GB |
| Flash: | 8G+128G SSD |
| OSD Language | Chinese, English etc. |
| Network | Wi-Fi, lan,Bluetooth,etc |
| Ports: | USB*2,SD*1,VGA*1,RJ45*1,Audio out*1,SIM port*1 |
| OSD Language | Chinese, English, Spanish, Russian, German, French, Arabic, etc. |
| Support split screen | Any split screen display, multiple window video player, can achieve different windowshowing different content |
Support the multimedia file
formats | MPEG1/2 4, AVI, RM, WMV, DAT, JPEG, BMP, PPT, WORD, EXCEL, TXT, MP3, RMVB, SWF etc. |
| Combined media display | Support video, picture, FLASH, marquee text and other combined media display. |
| Playback function | Support different templates scenes,multiple task packages looping |
| Environment | Operating Temperature :0°C to 40°C
Storage Temperature :-20°C to 60°C
Humidity:20%-80% RH at 40°C, |
| System Power Supply | AC 110V~240V,50/60HZ |
| Multi-touch Frame | Touch technology | Infrared multi touch technology |
| Touch model | 6 touch points |
| Induction object | Finger, pen, any opaque objects |
| Size of induction | Greater than or equal to 5 mm in diameter |
| Resolution | 8192*8192 |
| Response time | First point 25ms consecutive points 8ms |
| Cursor speed | ≥200dots/second |
| Glass Thickness | 4mm Normal or Anti-glare tempered glass |
| Operating voltage | DC 4.6V ~ DC 5V by USB |
| Consumption current | <1W, current ≤ 100mA |
| Touch Activation Force | No pressure needed |
| Service life | >6 million times single spot touch |
| Transferring rate | 12m/s |
| Positioning accurac | ≤0.1mm |
| Droop resistant | Yes, prevent due to long time work performance degradation |
42inch
Parameter for LCD panel:
Panel Brand: Great A LG/AU/CMO/Samsung display
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 42 inch
Form Factor: Flat Display
Aspect Ratio: 16:9(W:H)
Resolution: 1920(RGB) x 1080, FHD
Active Area: 927.94 x521.96 mm(H x V)
Bezel Area: 933.0 x527.0 mm(W x H)
Pixel Pitch: 0.4833mm (H) x 0.4833mm (W)
Display Colors: 16.7M (8-bit)
Brightness: 300 cd/m2
Contrast Ratio: 1200:1
Viewing Angle: 89/89/89/89(Min.)(CR≥10)(L/R/U/D)
Weight: 7.0/8.0 Kgs (Typ. /Max)
Input Voltage for Panel: 12V(Typ.)
Responsive Time: 6 (Typ.)(G to G)
Panel life: above 50000 hours
Operating Temperature: 0~50ºC
Storage Temperature: -20~60 ºC
46inch
Parameter for LCD panel:
Panel Brand: Great A AUO/CMO/Samsung display
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 46 inch
Form Factor: Flat Display
Aspect Ratio: 16:9(W:H)
Resolution: 1920(RGB) x 1080, FHD
Active Area: 1018.08 x 572.67mm(H x V)
Pixel Pitch: 0.53025mm (H) x 0.53025mm (W)
47inch
Parameter for LCD panel:
Panel Brand: Great A LG/AUO/CMO/Samsung display
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 47 inch
Form Factor: Flat Display
Aspect Ratio: 16:9(W:H)
Resolution: 1920(RGB) x 1080, FHD
Active Area: 1039.68x 584.82mm(H x V)
Bezel Area: 1040.0x 585.1mm(W x H)
55inch
Parameter for LCD panel:
Panel Brand: Great A LG/AUO/CMO/Samsung display
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 55 inch
Form Factor: Flat Display
Aspect Ratio: 16:9(W:H)
Resolution: 1920(RGB) x 1080, FHD
Active Area: 1209.6 x 680.4mm(H x V)
Bezel Area: 1214.6 x 685.4mm(W x H)
Pixel Pitch: 0.630mm (H) x 0.630mm (W)
65inch
Parameter for LCD panel:
Panel Brand: Great A LG/AUO/CMO/Samsung display
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 65 inch
Form Factor: Flat Display
Aspect Ratio: 16:9(W:H)
Resolution: 1920(RGB) x 1080, FHD
Active Area: 1428.48 x 803.52mm(H x V)
Pixel Pitch: 0.744mm (H) x 0.744mm (W)
Guangzhou Bems Trading Co., Ltd. Was founded in 2012. We focus on designing, researching and developing, manufacturing and selling TVs, LED TVs, LCD TVs, 3D TV, kiosks, touch screens and so on. We have more than 1000PCS of self-developed designs and molds for you to choose from. We release at least 10 new products monthly to meet the latest market trends. With our rich experience and considerate services, we have been recognized as a reliable supplier for many international buyers. We operate our in-house facilities to work on your OEM/ODM projects, enabling us to meet your customized requirements. With an annual production capacity of 10, 000, 00PCS, we can fill your bulk orders with ease.
To ensure quality, we have more than 10 QC members to carry out strict inspection at each stage: Incoming inspection (IQC), in-process inspection (IPQC) and final inspection (FQC).
We have also introduced machines which allow us to make products that meet international standards. Our products sell well in domestic and international markets, such as the USA, and are favorably appraised by clients. To benefit from our strong OEM/ODM capabilities and considerate services, contact us today. We will sincerely create and share success with all clients.
