Active Mini-Reference Monitors Speaker
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
PSM-MINI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Active Shielded Full-Rang Stereo Pair: |
Frequency Response: 90Hz-17, 000Hz |
| Max Spl: 101dB 1 Meter @1%Thd Pink Noise: |
165mm X 165mm X 206mm Cabinet Depth |
| 165mm X 165mm X 241mm Overall Depth: |
Cabinet Weight: 3.55kg / 7.8 Lbs (Each) |
| Inputs: XLR & Trs +4/Balanced&Unbalanced: |
Driver: 8 Ohm 5.25" Cast Aluminum Frame/Paper Cone |
| Cooling Convection: |
/Heat Sink-Aluminum Fins |
| Signal To Noise: 105dB "a" Weighted: |
Power: 76 Watts RMS Class a/B |
| Amplification Type: |
Active |
| Speaker Material: |
Wood |
| Usage: |
Stage/DJ |
| Adjusting Method: |
Knob |
| Built-in Battery: |
Without Battery |
| Recording Function: |
With Recording Function |
| Sound Channel: |
None |
| Special Function: |
Active (Self-Powered) Shielded Full-Range Stereo |
| Maximum Expanded Capacity: |
None |
| Extended Storage: |
None |
Product Description

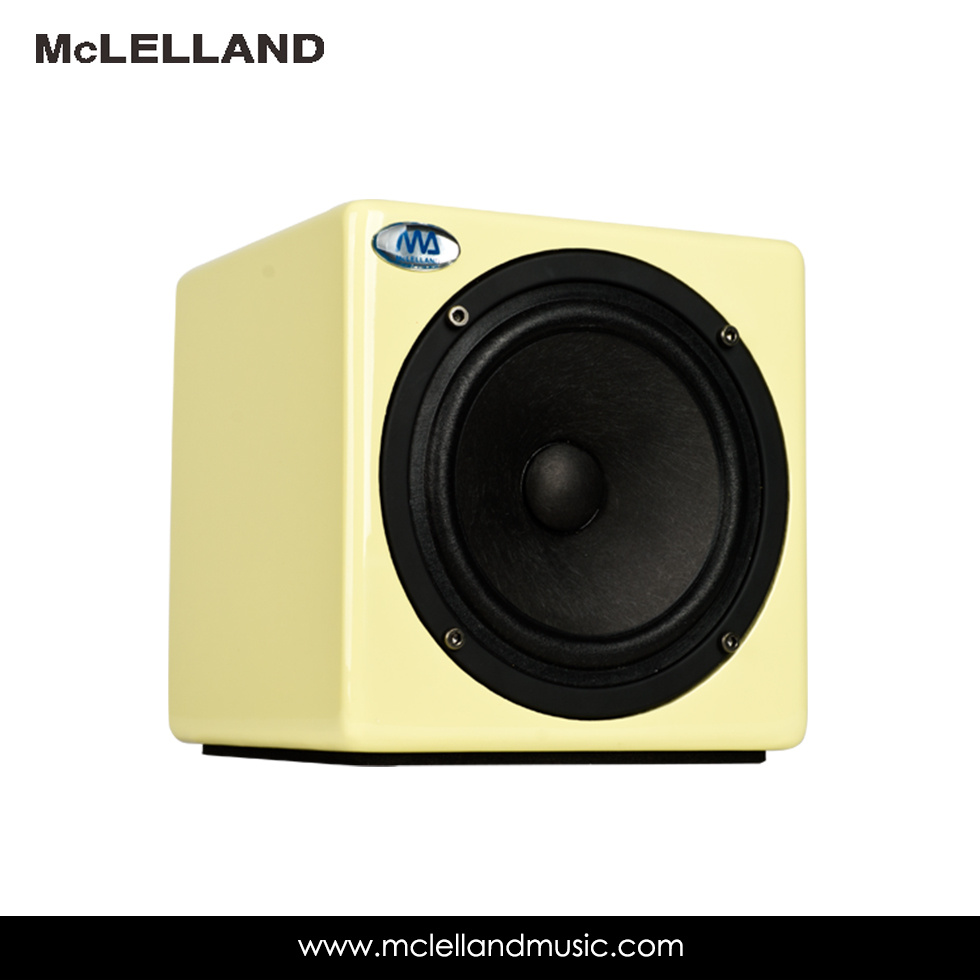

Active Mini-Reference Monitors(PSM-MINI)
Specifications:
System Type: Active (Self-Powered) shielded full-range stereo pair
Frequency response: 90Hz-17, 000Hz (Accessible musical range)
Max Spl: 101db 1 meter @1%THD (PINK NOISE)
Power: 76 watts RMS Class A/B
Signal to noise: 105dB "A" Weighted
Cooling: Convection / Heat Sink-Aluminum Fins

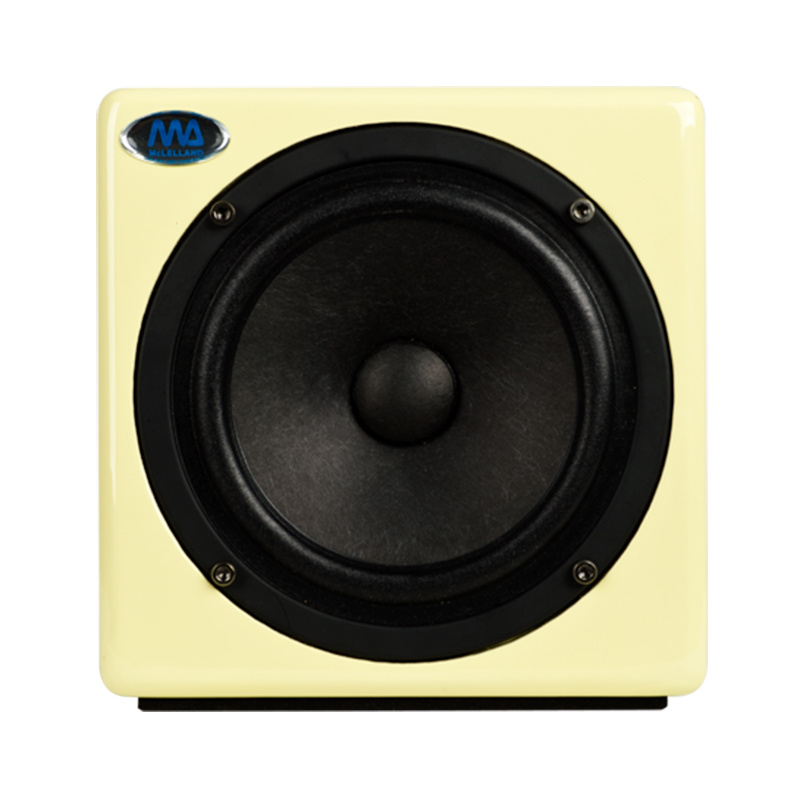

Driver: 8 ohm 5.25" Cast Aluminum Frame / Paper Cone
Cabinet: Sealed design /18mm MDF/ with Dacron Acoustical stuffing

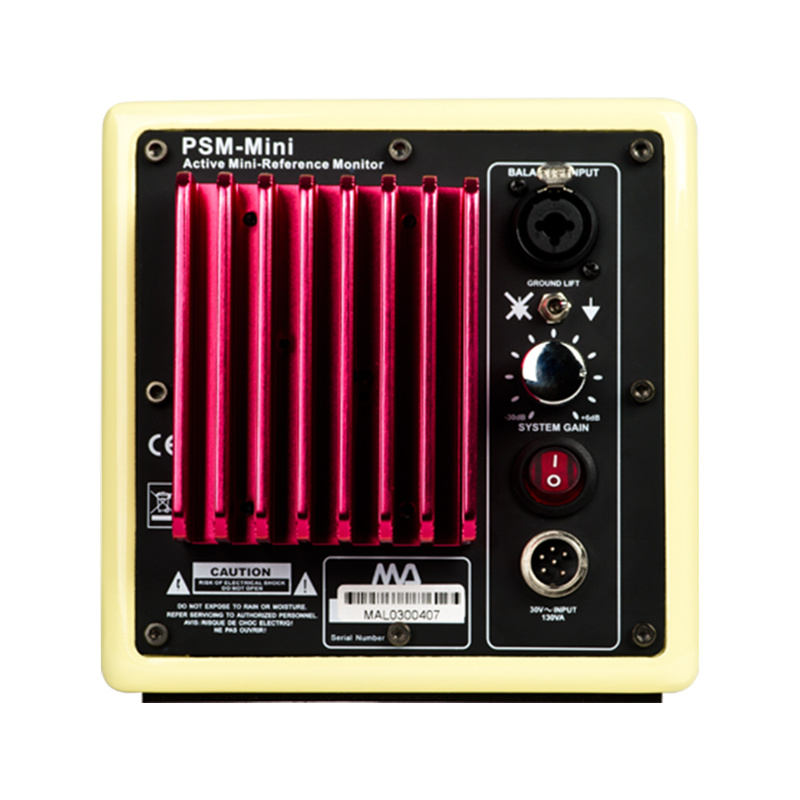

Inputs: XLR & TRS +4/Balanced & Unbalanced
Cabinet Dimensions:
165mm X 165mm X 206mm ( 6 ½ "x 6 ½ "x 8.125") cabinet depth
165mm X 165mm X 241mm ( 6 ½ "x 6 ½ "x 9.5") overall depth
Cabinet Weight: 3.55kg / 7.8 Lbs (each)
Mansion Industry Co., Ltd. is a professional audio manufacturer, which includes R&D, design, sales and services department, was established in 1985, at the following address 5F, NO. 6, Szu-Wei Lane, Cheng Road, Hsin-Tien City, Taipei, Taiwan, R. O. C.
Our main products are Equalizers, Crossovers, Power Amplifiers, Video Signal Solution, MIDI Controller, USB/Firewire Audio Interface, Mixers, Digital Effect Processors, Speaker, Microphones and Home Installation Audio products.
We promote our own products all over the world, also we welcome the OEM cooperation. To keep the quality be perfect and satisfy customer's requirements is our company's top target.
At present, we own more than 300 employees. Among them, engineers and technical personnel fifty six people. The high-level employees group and advanced technique help to produce the products with competitive.
Mansion would like to set up a faithful partner relationship with every friend and provide the sincere service. We have been move a new factory about 16000 SQM located within the town of Shenzhen.
