| Prod Model: |

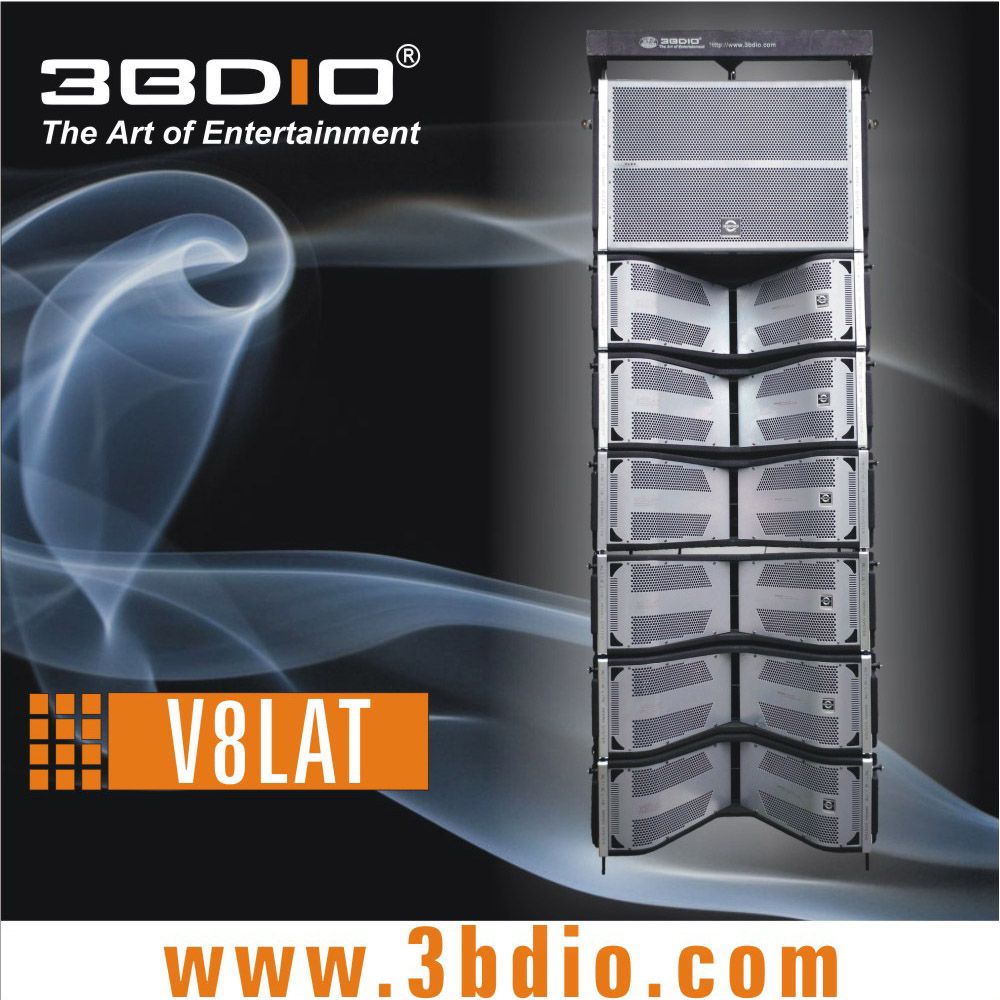

V8LAT + V8LAT-B |
Product Description
V8LAT series:
Two-way full range
LF unit: 2x8" (50mm)
HF unit: 2 x 1.4" (34mm)
Frequency response: 1PC, 100Hz-18kHz
Sensitivity: LF: 101dB HF: 113dB
Maximun SPL: LF: 128dB HF: 136dB
Nominal impedance: 4 ohms
Power(RMS/Peak): LF: 420W/1260W HF: 160W/480W
Input sensitivity: 0.775V
Dispersion angle: Horizontal 90° (100m), vertical 8° (150m)
Suspension angle: 0° , 1° , 2° , 3° , 4° , 5° , 6° , 7° , 8°
Other suspension accessories:
Steel frame (1PC / group)
Block (1PC / group)
Iron chain (2 PCS / group)
Power distributor splitter (120A)
Cabinet material: Finland birch plywood
Surface protection: Environment-protected black lacquer finishing
Suspension style: Proprietary 3BDIO rigging system
Connector: NL4R Speakon
Front panel protection: Harden spray finishing hexangular steel grille
Product dimensions: Width: 766mm
Height: Front 271mm, rear 189.9mm
Depth: 580mm
Packaging: Flight case (3PCS/case)
N. W. /G. W.: 122kg/165kg
Shipping Dimensions: 920 x 840 x 830mm
Packing: Flight case
V8LAT-B
LF unit: 15"x2(Φ 75mm)
Frequency Response: 1: 35Hz-250Hz
Sensitivity: 105dB
Nominal Impedance: 4OHM
Handle Power: 1200W
Peak Power: 4800W
Input Sensitivity: 0.775V
Material: Brich plywood
Enclosure Material Color/Finish: : Environment-protected black lacquer covering
Suspension Style: Proprietary 3BDIO rigging system
XLR input x 1; XLR throught x 1; AC input x 1; AC Link x 1
Front panel protection: Harden spray covering hexangular steel grille
Dimensions
Width: 765MM
Height: 490MM
Depth: 790MM
Packing: Flight case
NW/GW: 84kg/124kg
Shipping Dimensions:
863 x 863 x 713 mm(with wheels)
863 x 863 x 598 mm(without wheels
